Quick Details
-
Power:
-
9.8kW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDLG
-
Maximum Digging Height:
-
3505mm
-
Maximum Digging Depth:
-
2290mm
-
Machine Weight:
-
1880 kg
-
Max Digging Radius:
-
3910mm
-
Rated Speed:
-
2/4km/hour
-
Product name:
-
excavator for sale
-
Moving type:
-
Crawler excavators
-
Model:
-
ER616F
-
Engine model:
-
Kubota D782
-
Engine type:
-
Four-cylinder, water-cooled
-
Displacement:
-
778ml
-
Color:
-
Customized
-
Application:
-
Building
-
After Warranty Service:
-
Video technical support
Quick Details
-
Operating Weight:
-
1880kg
-
Bucket capacity:
-
0.04m3
-
Engine Brand:
-
Kubota
-
Power:
-
9.8kW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDLG
-
Maximum Digging Height:
-
3505mm
-
Maximum Digging Depth:
-
2290mm
-
Machine Weight:
-
1880 kg
-
Max Digging Radius:
-
3910mm
-
Rated Speed:
-
2/4km/hour
-
Product name:
-
excavator for sale
-
Moving type:
-
Crawler excavators
-
Model:
-
ER616F
-
Engine model:
-
Kubota D782
-
Engine type:
-
Four-cylinder, water-cooled
-
Displacement:
-
778ml
-
Color:
-
Customized
-
Application:
-
Building
-
After Warranty Service:
-
Video technical support

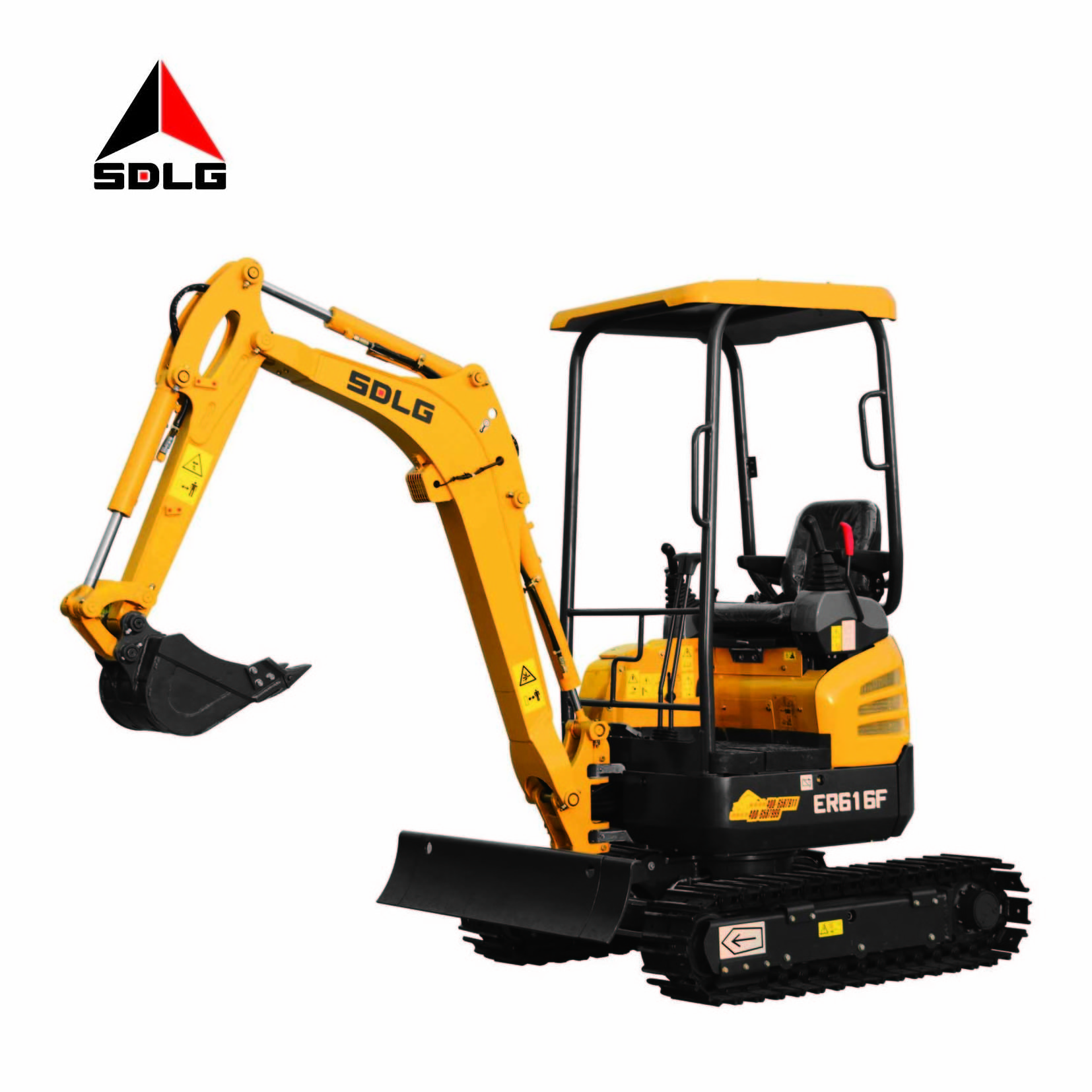

SDLG ER616F high quality compact small digger 1.6ton mini hydraulic pump excavator for sale
Product Description
SDLG ER616F high quality compact small digger 1.6ton mini hydraulic pump excavator for sale
ER616F is a compact excavator that is newly designed by SDLG.It integrates energy saving ,reliability and comfort,is flexible in operation and low in noise,and is widely used in various working conditions such as farmland construction and urban
transformation.
Product Paramenters
|
Overall dimension
|
|
|
|
|
||||
|
Overall width of upper assembly
|
2375mm
|
|
|
|
||||
|
Overall width
|
970(1240)mm
|
|
|
|
||||
|
Overall height
|
2375mm
|
|
|
|
||||
|
Tail swing radius
|
620mm
|
|
|
|
||||
|
Overall height of engine hood
|
1150mm
|
|
|
|
||||
|
Ground clearance of counterweight
|
453mm
|
|
|
|
||||
|
Wheelbase
|
1230mm
|
|
|
|
||||
|
Crawler length
|
1585mm
|
|
|
|
||||
|
Crawler gauge
|
730mm
|
|
|
|
||||
|
Crawler pad width
|
400mm
|
|
|
|
||||
|
Min. ground clearance
|
145mm
|
|
|
|
||||
|
Overall length
|
5930mm
|
|
|
|
||||
|
Overall height of boom
|
1190mm
|
|
|
|
||||
|
Overall parameters
|
|
|
|
|
||||
|
Bucket capacity
|
0.04m³
|
|
|
|
||||
|
Overall operating weight
|
1880kg
|
|
|
|
||||
|
Max. excavation force
|
15KN
|
|
|
|
||||
|
Slew speed
|
9.2r/min
|
|
|
|
||||
|
Traveling speed (low/high)
|
2/4km/h
|
|
|
|
||||
|
Average ground pressure
|
33kPa
|
|
|
|
||||
|
Max. digging radius
|
3910mm
|
|
|
|
||||
|
Max. digging depth
|
2290mm
|
|
|
|
||||
|
Max. digging height
|
3505mm
|
|
|
|
||||
|
Max. dumping height
|
2490mm
|
|
|
|
||||
|
Min. front slewing radius
|
1490mm
|
|
|
|
||||
|
Engine
|
|
|
|
|
||||
|
Model
|
D782
|
|
|
|
||||
|
Type
|
Water-cooled, Four-stroke,inline
|
|
|
|
||||
|
Rated Power@Revolution Speed
|
9.8kW
|
|
|
|
||||
|
Displacement
|
778mL
|
|
|
|
||||
|
Cylinder bore × stroke
|
67*73.6mm
|
|
|
|
||||
|
Emission standard
|
GB20891-2014 China Phase III
|
|
|
|
||||
|
Rated fuel consumption
|
253g/kw.h
|
|
|
|
||||
|
Max. torque
|
191.8-208.6N.m
|
|
|
|
||||
|
Traveling/swing system
|
|
|
|
|
||||
|
Qty. of carrier rollers (single side)
|
/
|
|
|
|
||||
|
Qty. of track rollers (single side)
|
3
|
|
|
|
||||
|
Traveling brake type
|
Wet disc brake
|
|
|
|
||||
|
Swing mode
|
Hydraulic drive internal tooth
single-row ball-bearing |
|
|
|
||||
|
Swing brake type
|
Wet disc brake
|
|
|
|
||||
|
Hydraulic system
|
|
|
|
|
||||
|
Hydraulic control type
|
Pilot proportional control valve
|
|
|
|
||||
|
Hydraulic system type
|
Three pump throttling system
|
|
|
|
||||
|
Max. flow
|
53
|
|
|
|
||||
|
Operating pressure
|
220kgf/cm2
|
|
|
|
||||
|
Fill capacity
|
|
|
|
|
||||
|
Fuel
|
15L
|
|
|
|
||||
|
Engine oil
|
3.8L
|
|
|
|
||||
|
Hydraulic oil
|
20L
|
|
|
|
||||
|
Antifreeze
|
3L
|
|
|
|
||||
Related Production To Choose
Online Service
Company Introduction
SDLG founded in 1972,is a world-famous manufacturer and service provider of loaders,excavators,rollers, backhoes and related parts in more than 130 countries and regions.
Our Advantages
Packing&Shipping
FAQ
yes,we SDLG are an official leading manufacture in construction machinery in China.
2、What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
3、What about the delivery time?
7-30 days after receving the deposit.
4、what about the warranty time?
12 months after shipment or 2000 working hours.
