Servo motor double belt pulling,less pulling resistance,stable & accurate.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
320bag/min
-
Weight (KG):
-
500
-
Voltage:
-
4.5Kw, AC220V Single-phase/380V 3-phases
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foison
-
Dimension(L*W*H):
-
150*140*260CM
-
Product name:
-
8 Lanes Machine
-
Model:
-
DXD-880F
-
Filling material:
-
Auger
-
Bag style:
-
4/3/back Side Seal
-
Dosage:
-
1-30ML Bag
-
Capacity:
-
360 Bag/Min
-
Body Shell:
-
Sheet steel spray painted/Stainless Steel
-
Weight:
-
430KG
-
Control Style:
-
PLC+Chinese/English Interface
Quick Details
-
Function:
-
FILLING, Sealing, Date printing
-
Packaging Type:
-
Bags, Pouch, Stick sachet
-
Packaging Material:
-
Plastic, Paper, Metal
-
Production Capacity:
-
320bag/min
-
Weight (KG):
-
500
-
Voltage:
-
4.5Kw, AC220V Single-phase/380V 3-phases
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foison
-
Dimension(L*W*H):
-
150*140*260CM
-
Product name:
-
8 Lanes Machine
-
Model:
-
DXD-880F
-
Filling material:
-
Auger
-
Bag style:
-
4/3/back Side Seal
-
Dosage:
-
1-30ML Bag
-
Capacity:
-
360 Bag/Min
-
Body Shell:
-
Sheet steel spray painted/Stainless Steel
-
Weight:
-
430KG
-
Control Style:
-
PLC+Chinese/English Interface
Specification
|
Model
|
DXD-480/680/880F
|
|
Filling
|
Auger
|
|
Bag Style
|
4 Side Seal/3 side seal/back side seal/special shape
|
|
Dosage
|
1-30ml/bag
|
|
Capacity
|
360 bags/min
|
|
Control Style
|
PLC+Chinese/English Interface
|
|
Pneumatic request
|
0.24 cbm/min,0.6Mpa
|
|
Power
|
4.5kw
|
|
Voltage
|
AC220V Single-phase/380V 3-Phases
|
|
Body Shell
|
Sheet steel spray painted/Stainless steel
|
Details Images
Packing film pulling system
Bag forming & feeding system
Dosing system: Auger & servo motor
Sealing and cutting system
1.Straight grain sealing & reticulate sealing
2.zigzag cutting/Straight
cutting/round corner/special shape cutting
Mitsubish/Siemons PLC controlling system
Can be customized per your requirements
Mitsubish/Delta touch screen
1.Can set English& Chinese or local language
2. You can do all the operation and adjustment on it
Application

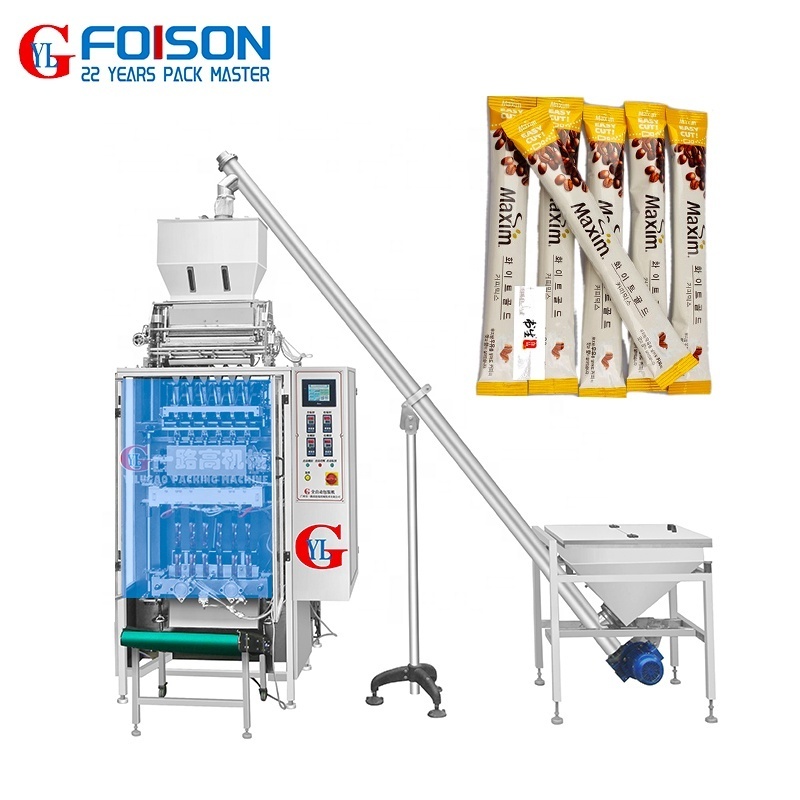

8lanes powder packing machine:This multi lanes machine can automatically measure, make bags, fill, seal, cut, print codes and make easy
tearing notches. This machine can be used to pack refined powder of foodstuff, Chemicals, cosmetic, etc. Such as: flour, soybean powder, seasoning, milk powder, pearl powder, and so on.
tearing notches. This machine can be used to pack refined powder of foodstuff, Chemicals, cosmetic, etc. Such as: flour, soybean powder, seasoning, milk powder, pearl powder, and so on.
Bag types
Achievements overview
Dongguan Foison packing machinery co.,ltd
Dongguan Foison Packing Machinery Co., Ltd. is the one of the first few factories of making packing machines producer,it has been leading the advanced technical in this field .Its predecessor is Yilugao Packing Machinery Technical Co.,Ltd and has being designing, manufacturing,selling our products to many customers from domestic and abroad for over 20 years. We produce machines from single line machine to multi lines machine;from single machine to the whole production line.
More than 100 different vertical packaging machines developed during those years,they are widely used in packing granule, liquid,powder and slice materials,such as foodstuff, chemical and industry products.We know deeply and adhering :a machine of high quality & more effective is the life for one producer.
More than 100 different vertical packaging machines developed during those years,they are widely used in packing granule, liquid,powder and slice materials,such as foodstuff, chemical and industry products.We know deeply and adhering :a machine of high quality & more effective is the life for one producer.
We own professional technical team and engineers with rich experience,so most of machines can be designed by our customer’s requirements,they are easy to operate and have considerate after-sale services. Due to our technical team has been focusing on technological innovation and personalized customization, most of our products obtained patents in domestic and abroad.
FAQ
Q1: How to find a packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product would you like to pack?
2. The sample bag/sachet/pouch shape and size of you need for the product packing ( the length, width).
3. The weight of each pack you need.
In order to recommend u a suitable one and accurate price,we need know these information.
If u haven’t started this business,no bag size,we can help u to find similar sample bag for your options.
Q2.: How can we ensure quality in details?
a.We can provide free trial packaging service!
b.Before exiting factory,will be inspected by our qualified engineer and will have a trial running for one or two days;
C.Before delivery, we will provide testing reports and send you the pictures and videos for you to check the quality and shipment, and also you can arrange for quality checking by yourself or by your contacts in China.
Q3. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
You can also use Alibaba trade assurance order, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q4: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
Q5:How can I purchase the packing film?
We can calculate the width of the packing film and purchase it for you,as we have a few long-term partner and can also search a few factory for your options,you can chat with the factory directly.
Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
