Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1520 mm
-
Travel (Y Axis)(mm):
-
3020 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
SHN
-
Brand Name:
-
ANBEN
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1500*3000*200
-
Power (kW):
-
11
-
Weight (KG):
-
1500
-
Product name:
-

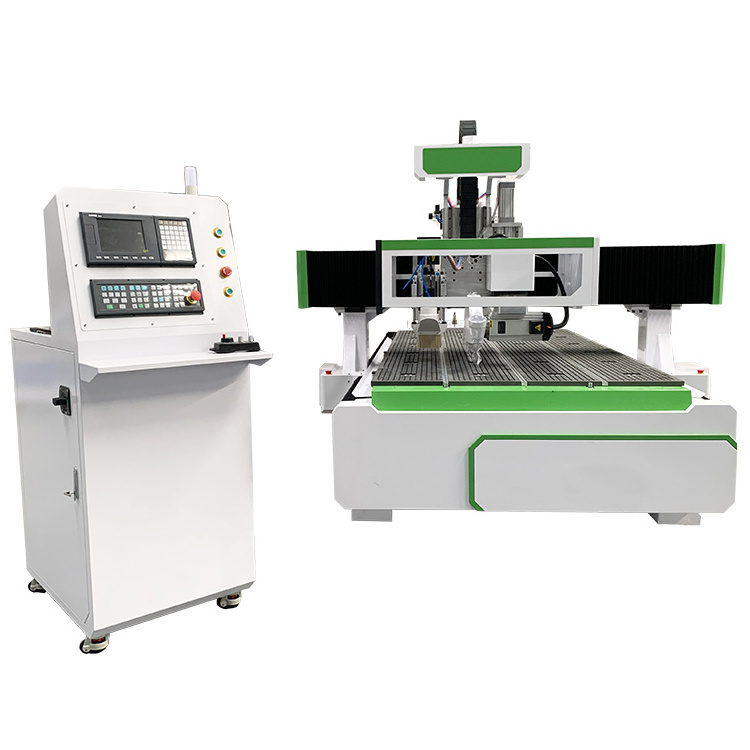

automatic tool changer 1530/1325 atc wood cnc router machine
-
Keywords:
-
wood router
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Control system:
-
Taiwan Syntec System
-
Spindle power:
-
9kw
-
Working area:
-
1500*3000*200mm
-
Inverter:
-
Inverter
-
Transmission:
-
Taiwan TBI Ball Screw
-
Motor:
-
Stepper/Servo Motor
-
Table Surface:
-
T-slot Table/Vacuum Table
Quick Details
-
Working Table Size(mm):
-
1500x3000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
100 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1520 mm
-
Travel (Y Axis)(mm):
-
3020 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
SHN
-
Brand Name:
-
ANBEN
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1500*3000*200
-
Power (kW):
-
11
-
Weight (KG):
-
1500
-
Product name:
-
automatic tool changer 1530/1325 atc wood cnc router machine
-
Keywords:
-
wood router
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Control system:
-
Taiwan Syntec System
-
Spindle power:
-
9kw
-
Working area:
-
1500*3000*200mm
-
Inverter:
-
Inverter
-
Transmission:
-
Taiwan TBI Ball Screw
-
Motor:
-
Stepper/Servo Motor
-
Table Surface:
-
T-slot Table/Vacuum Table
| Product name | ATC cnc router |
| Keywords | Saw |
| Application | MDF WOOD ACRYLIC ALUMINUM |
| Control system | Taiwan SYNTEC control system |
| Spindle power | 9KW ATC spindle + 7.5KW Saw spindle |
| Working area | 1500*3000*200mm |
| Inverter | 11KW Fuling/Delta |
| Transmission | Taiwan TBI Ball Screw, Taiwan PMI linear guide |
| Motor | Stepper/Servo Motor |
| Table Surface | T-slot Table/Vacuum Table |
| Tool changer | Linear tool changer*8 Positions |
| Tool holder | ISO30*8 PCS |
1. Mold: wood,wax, wood, gypsum,foams,wax.
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.
