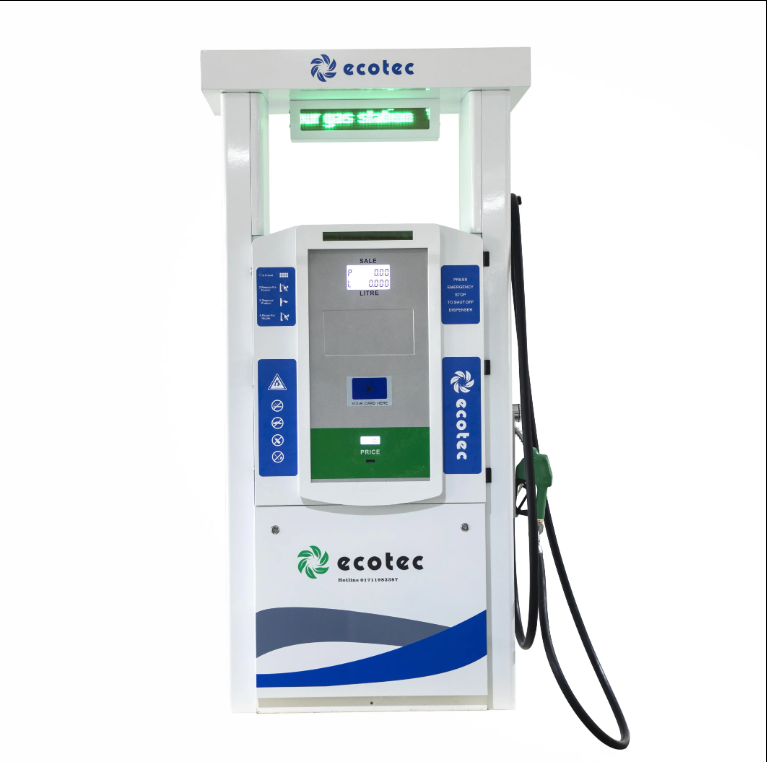

Ecotec Suction Type Fuel Dispenser for Gas Station (two nozzle) ET-G224

Available for 1 to 4 nozzle, both suction and submersible, can update to HEAVY DUTY meter

Fuel Dispenser G224

2 x Flow meter Tatsuno type, FM4B without seal
2 x Pulser CK-11
2 x Solenoid Valve MSF-20
2 x Tatsuno Nozzle boot on the side
2 x OPW type nozzle,3/4
2 x Black Hose/w couplings and breakaway valve 4.5M
1 x Electronic controller B224
2 x Metal keyboards K13,
4 x display boards 886 digits, Blue
painting body, Package: Carton

Ecotec de sign and manufacturing
Precise, convenient and safe, Customer and user first is the top priority in Ecotec design and manufacturing, J series is the dispenser with highest accuracy, quality, durability and reliability that always provides utmost satisfaction for all

Owner and User
Fuel dispenser J series is the essential dispenser for service stations, benefits to both service station owners and drivers, user-friendly and safe best partner that provide greatest fulfillment for all

Wide Range of product lineup
Product lineup meets various requirement of sites and customers, the best model with the best function,

• Suitable for single nozzle to 8 nozzle
• Suitable for both suction and submersible
• Suitable for Gilbarco, Tatsuno, Tokhem Bennett, LPG and CNG dispenser
• Suitable for regular flow rate and high flow rate
• Option with TV, LED, Printer, Bank Card reader etc

Components with best cost performance

UL Listed motor Tatsuno Gear Pump Tatsuno Meter

• Using the best motor from China which have both ATEX and UL listed, single phase, three phase available
• Using the best Pump made in China, Tatsuno Gear Type inbuilt with Air separator, two stage of filter and bypass valve to adjust the pressure, water and ethanol resistant
• Using the best Flow meter made in China, 4 Piston type provides safe refueling environment without deterioration in performance for a long period of time, also water and ethanol resistant

Flexible Function Design

• Electronic Calibration available by preset keyboard and communication protocol
• Long and short display value, Display sequence settable
• Decimal position settable
• Motor standby time adjustable to meet the different requirement
• Fueling with integer, Ten bits, Hundred bit and Thousand bit
• Re-display recall and settable
• 50 Filling record recall
• Lock function, Lock by password, Lock by monthly control, Lock by remote control
• Shift Record Printing
• Ticket content settable, such as station name, address, products
• Continue last interrupted fueling after power resume
• Different Password control
• Error Code to indicate the problem of dispenser
• Integration with ITL, PTS, DOMS, Fusion

Specification:
