Quick Details
-
Material:
-
PET PC PVC Rubber.silicon
-
Product name:
-

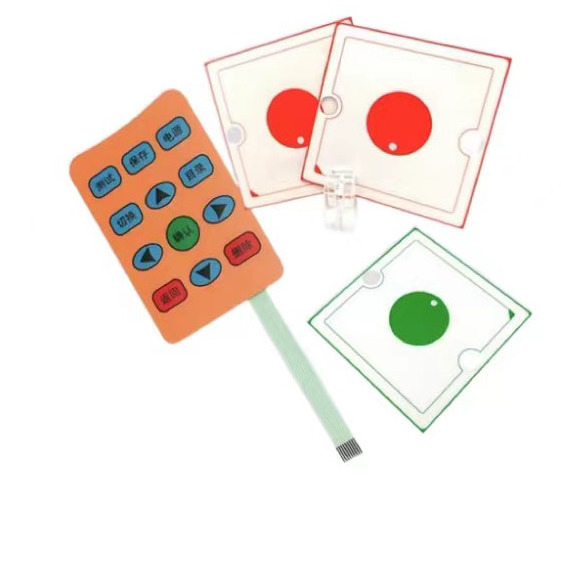

Control Buttons Membrane Switch
-
Color:
-
Customized Color
-
Feature:
-
Waterproof
-
Size:
-
Customized Size Accepted
-
Printing:
-
Silkscreen Printing
-
Keyword:
-
membrane switch
-
Certification:
-
ISO9001:2015 / ROHS
-
MOQ:
-
100pcs
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HMTC
-
Model Number:
-
Custom membrane switch
-
Material:
-
PET PC PVC Rubber.silicon
-
Product name:
-
Control Buttons Membrane Switch
-
Color:
-
Customized Color
-
Feature:
-
Waterproof
-
Size:
-
Customized Size Accepted
-
Printing:
-
Silkscreen Printing
-
Keyword:
-
membrane switch
-
Certification:
-
ISO9001:2015 / ROHS
-
MOQ:
-
100pcs
|
Item
|
Value
|
|
Overlay Material:
|
PVC PET FPC PC PC Acrylic Panel
|
|
Color:
|
Pantone or sample's color
|
|
Adhesive:
|
3M467/468MP
|
|
Key option:
|
Embossing or Flat
|
|
Key lifetime:
|
over 1Million times
|
|
Salt sprary Chamber Testing Conditions:
|
-40 ~ +70 degrees
|
|
Reliable Routine Test:
|
55+/-2 degrees , R.H. 95% , 48H
|
|
Printing:
|
Silk Screen Printing
|
|
Certification:
|
ROHS compliance
|
|
OEM service:
|
Acceptable
|
|
►Material selection guide
|
|
|
|
|||
|
Product structure
|
Material name
|
Material brand model
|
Performance parameter
|
|||
|
Graphic Overlay
|
PC(polycarbonate)
|
0.175/0.25/0.35/0.5 mm thickness
|
•Gloss & Matt
•good fire resistance
•low corrosion resistance
|
|||
|
|
PET (polyester)
|
0.15/0.188/0.20/0.25 mm thickness (AutotexF150/F200/V150/EBG180/EBA180)
|
•Gloss & Matt
•hard texture
•suitable for making poly dome
•high corrosion resistance
|
|||
|
Top Adhesive
|
PET Double-sided adhesive
|
0.10/0.22/0.28 mm thickness
|
|
|||
|
|
Paper Double-sided Tape
|
0.10 mm thickness
|
3M9448A
|
|||
|
Dome Retainer
|
PET
|
0.05/0.075mm thickness
|
/
|
|||
|
Switch Spacer
|
PET Double-sided adhesive
|
0.18\0.225\0.288 mm thickness
|
|
|||
|
metal dome
|
metal dome
|
6mm-16mm 4-Legged Metal Dome
|
|
|||
|
Circuit Layer
|
PET,S10 DK11
|
0.1/0.125mm
|
Resistance customizable
|
|||
|
Rear Adhesive
|
PET Double-sided adhesive
|
0.05/0.125mm thickness
|
3M467MP 3M468MP
|
|||
|
Connector
|
Metal PIN
|
Metal,Male/Female 2.54mm
|
/
|
|||
|
|
Female connector
|
Female,2.54mm
|
/
|
|||
|
|
FPC connector
|
FPC 0.5/1.0/1.27/2.54mm
|
/
|
|||
|
Comply with ROHS & REACH The above product information is for reference only, we can provide customized production according to the design requirements of customers.
|
|
|
|
|||
|
►Electrical performance
|
|
|
|
|||
|
Wire Resistance
|
0.5mm width,1Ω/cm
|
Rated Current
|
25-150mA,0-30V DC
|
|||
|
Insulation Resistance
|
>100MΩ 250V DC
|
Working Voltage
|
<50DC
|
|||
|
Non-tactile Switch Stroke
|
0.1-0.4mm
|
Tactile Switch Stroke
|
0.4-1.0mm
|
|||
|
Working Life
|
>0.5-1.2 million times
|
Working Temperature
|
-20℃-80℃
|
|||
|
Working Humidity
|
40℃,90%RH No Influence
|
Substrate Voltage
|
1500V DC
|
|||
|
Feed BackTime
|
10ms
|
Tail Folding
|
R>1,180 angel
|
|||
|
Q1:Are you Trading company or Manufacturer?
|
|
We are a professional Trading Manufacturer integrated.
|
|
Q2:How do I request samples of your products?
|
|
(1)Stock Samples:If you pay for the freight, we can provide free samples for you!
|
|
(2)Customized Samples:We can customize 5 pre-production samples for you after receiving proofing fee!
|
|
Q3:What kind of artwork do you prefer to work with?
|
|
We prefer files created in vector format from programs such as Adobe Illustrator and CorelDraw.
|
|
Q4:What are your payment terms?
|
|
(1)Payment amount≤USD1000,100% in advance
|
|
(2)Payment amount>USD1000, 30%T/T in advance, balance before shipment.
|
|
Q5:How to place an order?
|
|
Send us your order list and we will check the total cost for you. Please pay after confirmation
|
