Quick Details
-
Door:
-
Steel Security
-
Wall:
-
50mm/75mm Sandwich Panel
-
Window:
-
Aluminium Alloy Window
-
Roof:
-
50/75mm EPS Sandwich Panel/Rockwool
-
Color:
-
White Grey
-
Structure:
-
Galvanized Steel Frame
-
Floor:
-
Fibre Cement Board
-
Transport and load:
-
8~17 Set /40HQ
-
Ceiling:
-
50mm EPS Ceiling
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhongnan
-
Material:
-
container house
-
Door:
-
Steel Security
-
Wall:
-
50mm/75mm Sandwich Panel
-
Window:
-
Aluminium Alloy Window
-
Roof:
-
50/75mm EPS Sandwich Panel/Rockwool
-
Color:
-
White Grey
-
Structure:
-
Galvanized Steel Frame
-
Floor:
-
Fibre Cement Board
-
Transport and load:
-
8~17 Set /40HQ
-
Ceiling:
-
50mm EPS Ceiling
Products Description
Zhongnan Container House Advantages
1. Low cost, the cost of a container is much lower than traditional building, which is more suitable for individual small-scale operations or temporary houses.
2. Fully pre-installed including bathroom and kitchen, all the fittings are all assembled in the factory, construction period is short.
3. Fast and easy installation, 2-3 people can 1-3day install it within without crane help.
4. Moveable, It is convenient to assemble and disassemble and It can be moved frequently, could have a trailer add-on to make it a portable version like an RV.
5. Customized design support, we provide a wide range of options for exterior and interior decoration under your needs.
6.The service life is 25 to 30 years
6. Conforms to Australian and European Union Standards
6. Conforms to Australian and European Union Standards
Product Paramenters
|
Zhongnan container House Parameters
|
|
|
||
|
Size
|
20FT/40FT Customized
|
|
||
|
Life span
|
More than 35 years
|
|
||
|
Steel Frame
|
Main Beam For Floor And Bottom
|
Galvanized formed beam
|
||
|
|
|
Thickness:3.0mm,2.5mm,2.3mm
|
||
|
|
Top Frame
|
C shape steel:C80*1.3mm,galvanized
|
||
|
|
|
Square tube: 20*20*1.0mm,galvanized
|
||
|
|
|
Insulation:75mm fiber glass wool with sliver paper,density:14kg/m³
|
||
|
|
Bottom Frame
|
Square tube: 50*100*1.2mm,galvanized
|
||
|
|
|
Insulation:75mm fiber glass wool with sliver paper,density:14kg/m³
|
||
|
|
Column
|
Galvanized steel Column
|
||
|
|
Corner fitting
|
Galvanized steel
|
||
|
Wall system
|
75mm Sandwich Panel
|
75mm rock wool board,density≥80kg/m3
|
||
|
Floor
|
Fiber Cement Board
|
Thickness :18mm
|
||
|
|
Vinyl flooring
|
Thickness:1.6mm/2.0mm
|
||
|
Roof
|
Ceiling
|
V-831 type,0.4mm Integrated Color Steel Sheet
|
||
|
Window
|
Sliding Window
|
925mm*1100mm
|
||
|
Door
|
Steel Security Door
|
840mm*2035mm
|
||
|
Electrical Device
|
100V- 250V, 2P63A, Using IP44 standard power distribution box. main power cable is 6m², AC cable is 4m², socket cable is 2.5m²,
lighting & switch cable is 1.5m². Four sockets, 1pc AC socket of three holes 16A, 3pcs socket of five holes 10A. 1pc single connection switch, 2pcs LED light,2*15W.ADAPTS power supply according to different countries and regions |
|
||
|
Accessories
|
Screw ,Blot, Silicon sealant,etc
|
|
||
Installation Instructions
Details Images
Zhongnan 20FT Folding container house
Interior layout can be customized according to requirements
Each Country socket is different, we will change according to the customer country

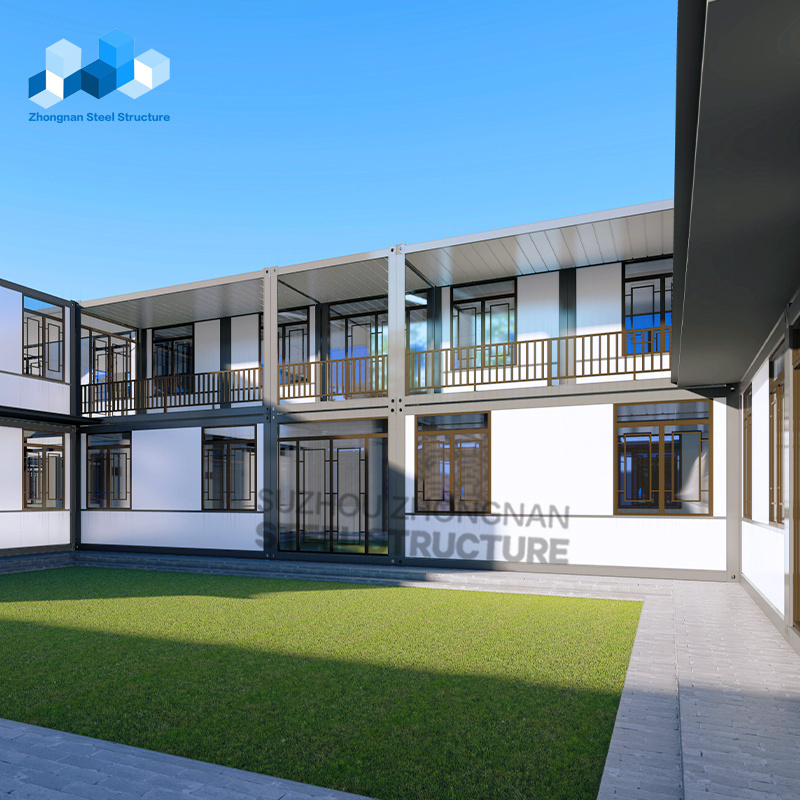

Container house can be stacked two levels, and add veranda,gazebo ,canopy, railing, stair.
