Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Voltage:
-
12VDC, 24VDC,48V
-
Power:
-
20W to 300W
-
Rated Speed:
-
Our type is 30/82/40/38/19rpm.We can design various gear ratio
-
Gear ratio:
-
We now have 1/25,1/30,1/50,1/60,1/80
-
Size:
-
73mm 78mm, 80mm worm gear box is available
-
Insulation Class:
-
Class B
-
M.O.Q:
-
Our Minimum quantity is 1pc
-
OEM Service:
-
Yes! We offer OEM service.
Quick Details
-
Speed(RPM):
-
13-40rpm
-
Continuous Current(A):
-
1.6-13A
-
Efficiency:
-
good
-
Place of Origin:
-
Zhejiang, China
-
Voltage:
-
12VDC, 24VDC,48V
-
Power:
-
20W to 300W
-
Rated Speed:
-
Our type is 30/82/40/38/19rpm.We can design various gear ratio
-
Gear ratio:
-
We now have 1/25,1/30,1/50,1/60,1/80
-
Size:
-
73mm 78mm, 80mm worm gear box is available
-
Insulation Class:
-
Class B
-
M.O.Q:
-
Our Minimum quantity is 1pc
-
OEM Service:
-
Yes! We offer OEM service.

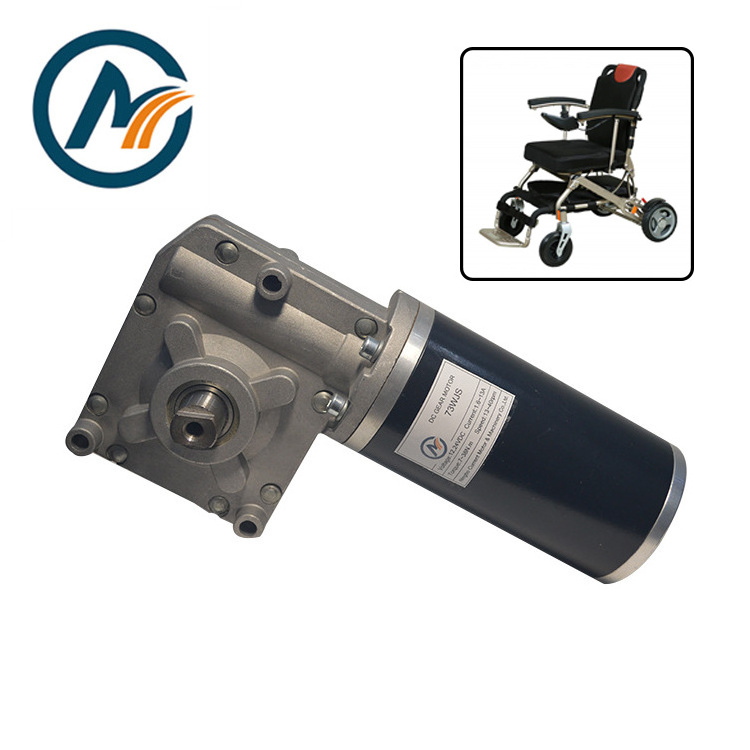

12 volt worm gear motors - 73WJS
This type motor is PM DC Motor assembled with worm gear box. Following specifications is our standard type. Regarding Voltage,power,and gear ratio, we can design as per customer’s requirement.
Data Sheet of 7
12 volt worm gear motors
| NO. | Item No. | Specifications of 73WJS 12 volt worm gear motors | ||||
| 1 | Voltage(V) | 12 | 12 | 24 | 24 | 12 |
| 2 | Unload Current (A) | 0.8 | 1.8 | 0.5 | 0.3 | 0.25 |
| 3 | Unload Speed (rpm) | 30+-1 | 82+-2 | 40+-1 | 38+-1 | 19+-1 |
| 4 | Rated Current (A) | 3.5 | 13 | 6 | 5.9 | 1.6 |
| 5 | Rated Speed (rpm) | 22 | 40 | 28 | 30 | 13 |
| 6 | Rated Torque( N.M) | 9.5 | 17.3 | 38.7 | 23 | 7.4 |
| 7 | Lock Torque(N.M) | ≥54 | ≥39 | ≥116 | ≥65 | ≥24 |
| 8 | Lock Current(A) | ≤18 | ≤24 | ≤20 | ≤16 | ≤6 |
| 9 | Gear Ratio | 1/25;1/30;1/50;1/60;1/80etc. | ||||
| Product Series | Motor type | Voltage |
Current (A) |
Power (W) |
Speed (RPM) |
Gear ratio |
Torque (Kg.cm) |
| Worm gear DC motor | 63WJS | 12/24/115 VDC | 2-16 | 48-140 | 30-160 | 15-60 | 83-153 |
| 73WJS | 12/24 VDC | 1.6-13 | 10-113 | 13-40 | 50 | 7.4-387 | |
| 80WJS | 24 VDC | 7 | 113 | 30 | 50 | 360 |
Size of 73WJS 12 volt worm gear motors
Our service:
1 Any email or trademanager inquires will be replied within 24 hours
2 Normal samples can be offer very quickly(within 10 days)
3 Customized service for kind of motor accoring to your requirement
4 Professional Tchnical support and After-sale service
5 Sourcing motor parts like gears, encoders, cables, connectors and so on
6 Support free sampling
| Type | 73WJS Worm gear DC motor |
| efficiency | It is about 50% |
| Insulation Class | Class B |
| M.O.Q | Our Minimum quantity is 1pc |
| OEM Service | Yes! We offer OEM service. |
