Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
RuiDa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EKLASER
-
Weight (KG):
-
500 KG
-
Product name:
-
Fabric laser cutting machine
-
Laser power:
-
100w/130w/150w
-
Cutting materials:
-
fabric ,leather ,cloth
-
Working area:
-
1600*1000mm
-
Control system:
-
Ruida Control System
-
Driving system:
-
Stepper Motor
-
Transmission:
-
Belt Transmission
-
Working Voltage:
-
220V/50HZ 110V/60HZ
-
Laser tube:
-
Sealed CO2 Glass Tube
-
The gross weight:
-
500kg
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-30m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
RuiDa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EKLASER
-
Weight (KG):
-
500 KG
-
Product name:
-
Fabric laser cutting machine
-
Laser power:
-
100w/130w/150w
-
Cutting materials:
-
fabric ,leather ,cloth
-
Working area:
-
1600*1000mm
-
Control system:
-
Ruida Control System
-
Driving system:
-
Stepper Motor
-
Transmission:
-
Belt Transmission
-
Working Voltage:
-
220V/50HZ 110V/60HZ
-
Laser tube:
-
Sealed CO2 Glass Tube
-
The gross weight:
-
500kg

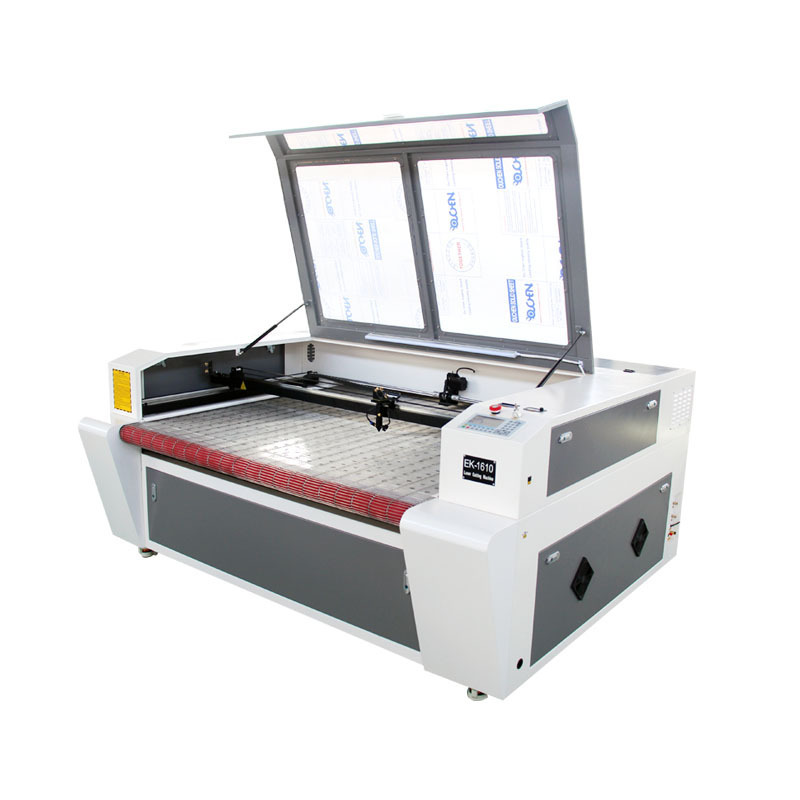

1610 100w co2 auto feeding laser cutting machine for fabric
1. Adopts automatic stainless steel crawler platform & large scope, can meet the demand of large-format cutting, carving for clothing and other fields.
2. With advantages of small speed, higher precision can save time and greatly improve production efficiency combing with automatic feeding device.
3. Red Light Pointer realizes the exact position without laser.
4. Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
5. Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.
|
Machine model
|
EK-1610 Fabric laser cutting machine
|
|
laser type
|
Sealed CO2 laser tube, wavelenght:10:64μm
|
|
laser power
|
60w/80w/100w/150w/180w/280w/300w
|
|
Cooling mode
|
Circulating water cooling
|
|
Laser power control
|
0-100% software control
|
|
Control system
|
Ruida/DSP offline control system
|
|
Max. engraving speed
|
60000mm/min
|
|
Max cutting speed
|
50000mm/min
|
|
Repetition accuracy
|
≤±0.01mm
|
|
Min. Letter
|
Chinese:1.5mm, English:1mm
|
|
Table size
|
1600*1000mm
|
|
Working voltage
|
110/220v 50-60Hz
|
|
Working conditions
|
temperature:0-45℃,humidity:5%-95%
|
|
File formats
|
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*.las,*.doc
|
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.
