Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Y-F
-
Dimension(L*W*H):
-
140*75*94cm
-
Weight:
-
250 KG
-
Product name:
-

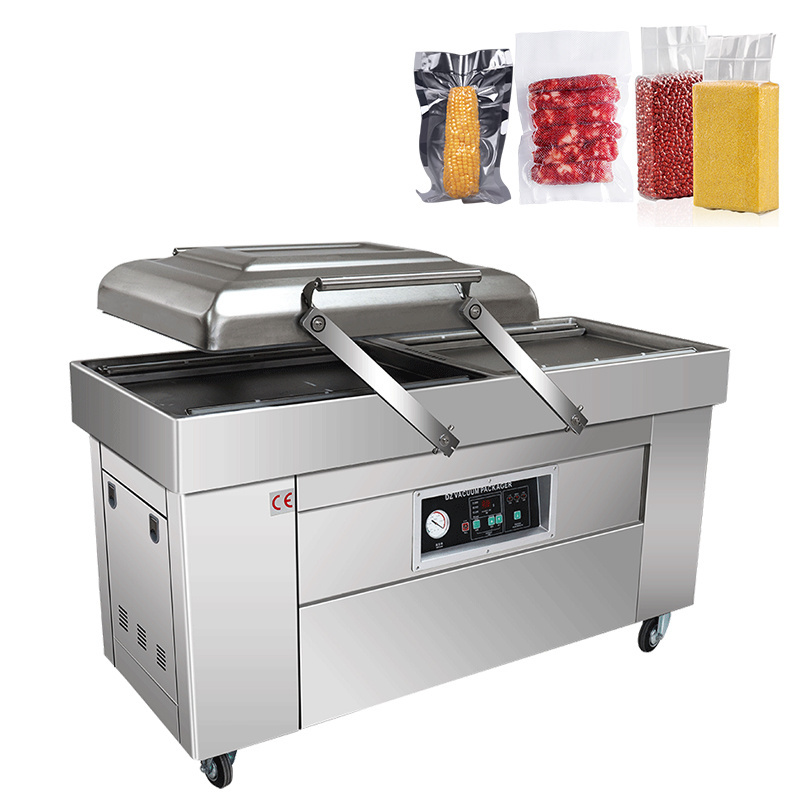

Double Chamber Vacuum Packing Machine
-
Keyword:
-
Vacum Sealing Machine
-
Function:
-
Vacuum Seal Food Packing Machine
-
Machine Material:
-
All 304 Stainless Steel
-
Model:
-
600-2S/700-2S/800-2S
-
Item:
-
Double Chamber Vacuum Packaging Machinery
-
Number of sealing strips:
-
2pcs/chamber
-
Sealing Length:
-
600 mm/700 mm/800 mm and more
-
Sealing speed:
-
1-4times/min
Quick Details
-
Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, case
-
Packaging Material:
-
Plastic
-
Voltage:
-
220V/380V, 380V/50HZ
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Y-F
-
Dimension(L*W*H):
-
140*75*94cm
-
Weight:
-
250 KG
-
Product name:
-
Double Chamber Vacuum Packing Machine
-
Keyword:
-
Vacum Sealing Machine
-
Function:
-
Vacuum Seal Food Packing Machine
-
Machine Material:
-
All 304 Stainless Steel
-
Model:
-
600-2S/700-2S/800-2S
-
Item:
-
Double Chamber Vacuum Packaging Machinery
-
Number of sealing strips:
-
2pcs/chamber
-
Sealing Length:
-
600 mm/700 mm/800 mm and more
-
Sealing speed:
-
1-4times/min
Product parameter
|
Model
|
600-2S
|
700-2S
|
800-2S
|
|
Chamber Size
|
60*58*12cm
|
70*62*12cm
|
80*65*12cm
|
|
Seal Size
|
60*1cm (4pcs)
|
70*1cm(4pcs)
|
80*1cm(4pcs)
|
|
Machine Size
|
140*75*94cm
|
162*82*94cm
|
145*60*103cm
|
|
Electrothermal power
|
0.8KW/hr
|
1KW/hr
|
1KW/hr
|
|
Electric power
|
2.2KW/hr
|
3KW/hr
|
3KW/hr
|
|
Voltage
|
380V/50HZ
|
380V/50HZ
|
3KW/hr
|
|
Pumping Speed
|
100m3/h
|
100m3/h
|
100m3/h
|
|
Vacuum Pump
|
100pump
|
100pump
|
100pump
|
|
Vacuum degree
|
100Pa
|
100Pa
|
100Pa
|
|
Weight
|
280KG
|
380KG
|
480KG
|
Don't need special vacuum bag any more
Vacuum
machine does not limit bags, all kinds of vacuum bags can be used
Friendly Reminder :
We can customize larger vacuum chambers 900mm or more.
We have 20 years experience in making large chamber vacuum machines for customers.
Just tell us: size of the bags you will vacuum
Product Details
Industrial pump
Large industrial pump, stable operation,
full power, low noise
CE certifications
The machine with CE stickers.
Intelligent control panel
Easy operate and adjust.(The flat type is Knob control panel)
Two kinds of table surfaces
Including auxiliary pad and flat groove are presented according to your needs.
Emergency stop switch
humanized design, to prevent emergency stop machine operation.
Double swing arm
More easily switch between two vacuum chambers.
Copper three-way solar term mouth
good air tightness, long and durable.
Sealing strip & printing code
By loading the printing code into the small hole on the back of the silica gel strip, the date can be printed.The vacuum sealing printing can be completed at one time, which is convenient and quick, and greatly improves the efficiency.
Product Description
Industrial automatic double chamber vacuum bag packing packaging sealing sealer machine for food with large chamber to use
Main Features:
1. Double chamber, high efficient packing vacuum machine.
2.Material of Main Structure: 304 stainless steel body.
3.Electrical requirement and plug could be custom according to customer requirement.
4.The products can be prevented from oxidation, going mould,insects or getting damp, thus can be kept fresh for longer time.
5.Can finish the whole programs of vacuum extraction, gas flushing (optional) , sealing, cooling and exhaust automatically.
6.The vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work.
4.The products can be prevented from oxidation, going mould,insects or getting damp, thus can be kept fresh for longer time.
5.Can finish the whole programs of vacuum extraction, gas flushing (optional) , sealing, cooling and exhaust automatically.
6.The vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work.
7.
We can provide OEM & ODM for different company with deep vacuum chamber, automatic swing lid, control panel, vacuum pump, gas filling, full 304SS etc.
Detailed description of the method of operation:
1. Plug in the power (220V or 380V).
2. Turn on the power button.
3. Adjust the pumping time (about 20-30 seconds).
4. Adjust the sealing time (about 3 seconds).
5. Adjust the cooling time (about 3 seconds).
6. Installed items, placed inside the bag sealed.
7. Press the top cover to operate the vacuum gauge back to zero to complete the work.
1. Plug in the power (220V or 380V).
2. Turn on the power button.
3. Adjust the pumping time (about 20-30 seconds).
4. Adjust the sealing time (about 3 seconds).
5. Adjust the cooling time (about 3 seconds).
6. Installed items, placed inside the bag sealed.
7. Press the top cover to operate the vacuum gauge back to zero to complete the work.
