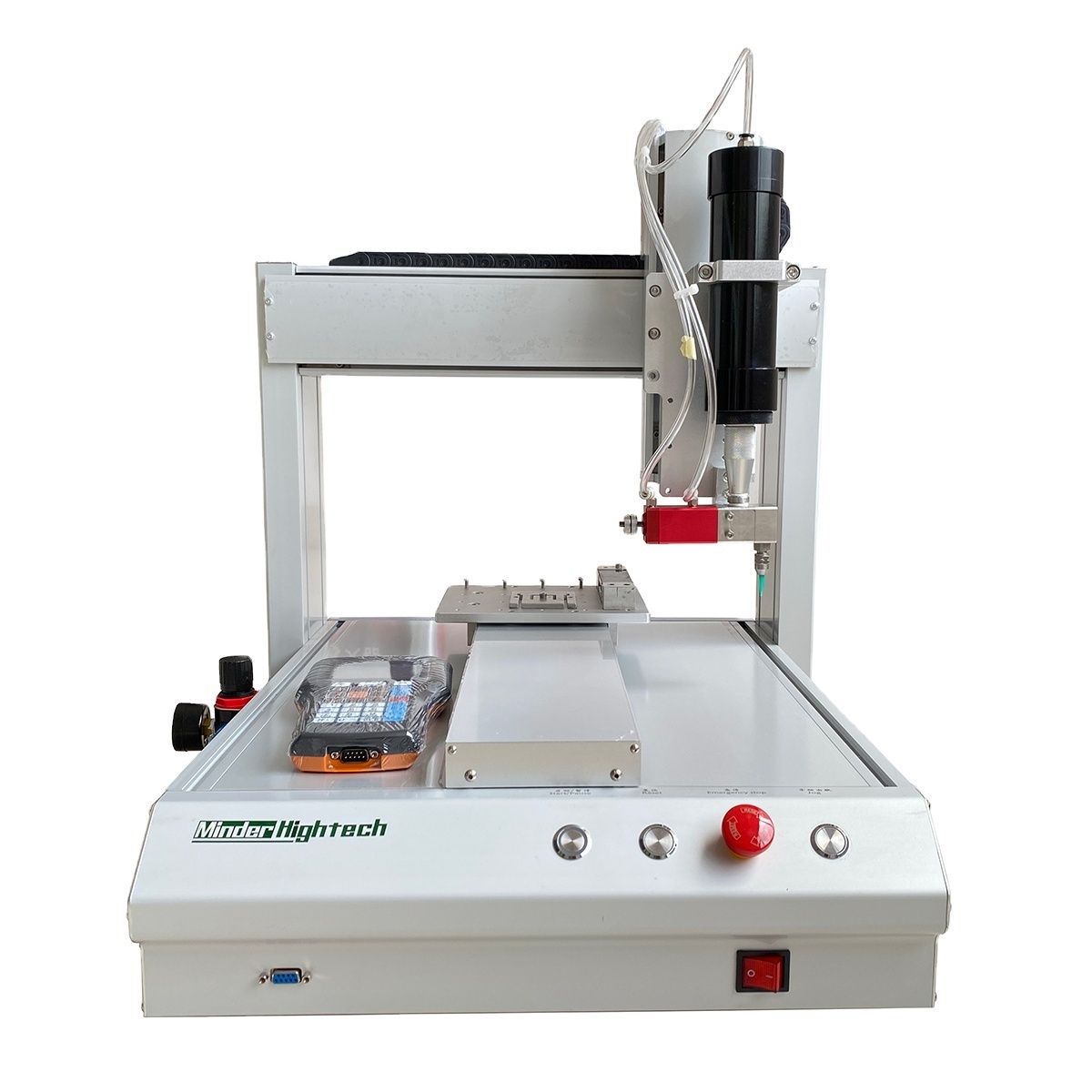

Quick Details
-
Power Supply:
-
110V / 220V AC
-
Number of axes:
-
4
-
Repeat accuracy:
-
±0.02mm
-
Power:
-
400W
-
Spit gum head:
-
1
-
Programming interface:
-
Teaching pendant / PC
-
Weight:
-
75kg
-
Movement range(Xmm):
-
500mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minderhightech
-
Condition:
-
100% Original
-
Power Supply:
-
110V / 220V AC
-
Number of axes:
-
4
-
Repeat accuracy:
-
±0.02mm
-
Power:
-
400W
-
Spit gum head:
-
1
-
Programming interface:
-
Teaching pendant / PC
-
Weight:
-
75kg
-
Movement range(Xmm):
-
500mm
Product Description
Tips
Because the specific configuration of the equipment needs to be matched according to product requirements and actual conditions, please contact customer service for product details.
Specification
|
Model
|
|
|
DJ5331
|
DJ5441
|
DJ8551
|
||||
|
Trip
|
|
|
500/300/300/100
|
500/400/400/100
|
800/500/500/100
|
||||
|
Programmatically
|
|
|
Import teaching programming or graphics
|
|
|
||||
|
Motion graphics
|
|
|
Point, line, arc, circle, curve, multiple lines, spiral, ellipse
|
|
|
||||
|
Dispensing head
|
|
|
Plastic needle/TT needle
|
|
|
||||
|
Dispensing cylinder
|
|
|
3CC/5CC/10CC/30CC/55CC/100CC/200CC/300CC/500CC
|
|
|
||||
|
Minimum discharge
|
|
|
0.01ML
|
|
|
||||
|
The glue frequency
|
|
|
5times/SEC.
|
|
|
||||
|
Load
|
|
Y/X axle load
|
10kg
|
|
|
||||
|
|
|
Z axle load
|
5kg
|
|
|
||||
|
Axial dynamic speed X/Y/Z
|
|
|
0-600mm/sec
|
|
|
||||
|
Resolving power
|
|
|
0.01mm/Axis
|
|
|
||||
|
Repeatability positioning accuracy
|
|
Screw drive
|
0.01-0.02
|
|
|
||||
|
|
|
Synchronous belt drive
|
0.02-0.04
|
|
|
||||
|
Program record mode
|
|
|
least 100,5000points each
|
|
|
||||
|
Display mode
|
|
|
LCD Teaching box
|
|
|
||||
|
Motor system
|
|
|
Japan precision micro stepping motor
|
|
|
||||
|
Drive mode |
Guide
|
|
Taiwan HIWIN guide rail
|
|
|
||||
|
|
Wire road
|
|
HIWIN screw rod
|
|
|
||||
|
|
Belt
|
|
Italy Italy Lartey synchronous belt
|
|
|
||||
|
|
|
|
X/Y/Z axis synchronous belt for standard configuration
Z axis screw rod is optional, XYZ axis screw rod for customization. |
|
|
||||
|
Motion filing function
|
|
|
3axis(3 dimensional space, any route can)
|
|
|
||||
|
Input power
|
|
|
Full voltage AC110v~220V
|
|
|
||||
|
External control interface
|
|
|
RS232
|
|
|
||||
|
Motor control shaft number
|
|
|
4 axis
|
|
|
||||
|
Axis range |
X
|
|
500
|
500
|
800
|
||||
|
|
Y
|
|
300
|
400
|
500
|
||||
|
|
Y
|
|
300
|
400
|
500
|
||||
|
|
Z
|
|
100
|
100
|
100
|
||||
|
Outline size
|
|
|
730/589/630
|
730/689/632
|
1030/789/630
|
||||
|
Body weight
|
|
|
65Kg
|
75Kg
|
85Kg
|
||||
