Quick Details
-
Fork Length:
-
1220mm
-
Fork Width:
-
175mm
-
Overall Dimensions:
-
1370*2116*2850mm
-
Weight (KG):
-
10000 kg
-
Load Centre:
-
600mm
-
Wheel Base:
-
2580mm
-
Overhead Guard Height:
-
2445mm
-
Free Lifting Height:
-
180mm
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
Heli
-
Fork Length:
-
1220mm
-
Fork Width:
-
175mm
-
Overall Dimensions:
-
1370*2116*2850mm
-
Weight (KG):
-
10000 kg
-
Load Centre:
-
600mm
-
Wheel Base:
-
2580mm
-
Overhead Guard Height:
-
2445mm
-
Free Lifting Height:
-
180mm
Contact Way
Products Description

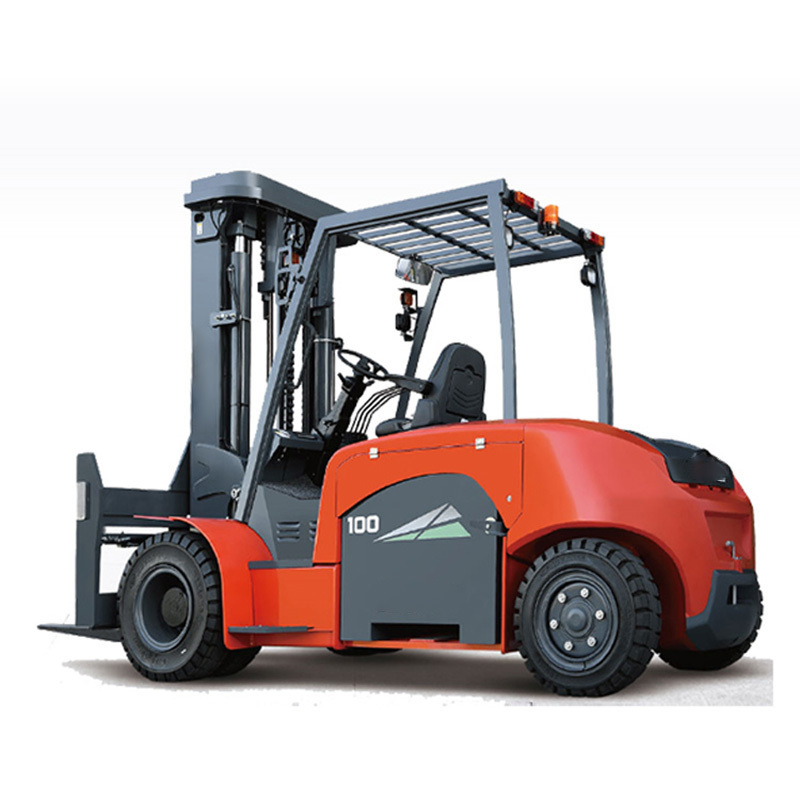

Heli Heavy Forklift 10 Ton Electric Forklift CPD100 with Triple Mast
● Modern appearance and excellent vision
The vehicle adopts a new streamlined design, the appearance becomes smoother and more beautiful, super-low height of balance weight offers the driver with an excellent rear vision field.
● High stability
By optimizing the quality distribution of the whole vehicle, the load capacity of mast is better than diesel trucks with the same tonnage.
The machine comes with larger tyres for increased traction on muddy and uneven terrain.
The counterweight has been lowered for excellent stability and heavy loading capability of mast ass’y.
● High efficiency and comfortability
The design of compacted frameworks makes the vehicle much more flexible while moving freely even in a small space.
Full hydraulic synchronous steering system and automatic parking function ensure quick and trouble-free daily operation.
Equipped with full suspension seat ass’y the driver felt more comfortable and the use of silent gear pump reduces the noise a lot.
● Convenient maintenance
The two groups of batteries are arranged from both sides, which is easily to be replaced directly from each side.
The frameworks bring charging interface and the whole trucks can be charged at the same time for both batteries.
Come with automatic water-in system and maintenance-free wet braking as standard installment.
The reversal of cooling fan removes dust and it is free of maintenance.
● Active safety
The circulating cooling system based on multi-point temperature intelligent control makes the temperature of each component at the best point.
Installment of OPS system and intelligent speed-limiter enhanced the general security.
Active braking and implementing the parking brake after parking when the truck is out of order.If fails, it can decelerate the speed to park and stop actively.
● Energy-saving
Energy-saving type hydraulic system.
Power recovery has priority, piecewise superimposed electric-hydraulic braking.
The vehicle adopts a new streamlined design, the appearance becomes smoother and more beautiful, super-low height of balance weight offers the driver with an excellent rear vision field.
● High stability
By optimizing the quality distribution of the whole vehicle, the load capacity of mast is better than diesel trucks with the same tonnage.
The machine comes with larger tyres for increased traction on muddy and uneven terrain.
The counterweight has been lowered for excellent stability and heavy loading capability of mast ass’y.
● High efficiency and comfortability
The design of compacted frameworks makes the vehicle much more flexible while moving freely even in a small space.
Full hydraulic synchronous steering system and automatic parking function ensure quick and trouble-free daily operation.
Equipped with full suspension seat ass’y the driver felt more comfortable and the use of silent gear pump reduces the noise a lot.
● Convenient maintenance
The two groups of batteries are arranged from both sides, which is easily to be replaced directly from each side.
The frameworks bring charging interface and the whole trucks can be charged at the same time for both batteries.
Come with automatic water-in system and maintenance-free wet braking as standard installment.
The reversal of cooling fan removes dust and it is free of maintenance.
● Active safety
The circulating cooling system based on multi-point temperature intelligent control makes the temperature of each component at the best point.
Installment of OPS system and intelligent speed-limiter enhanced the general security.
Active braking and implementing the parking brake after parking when the truck is out of order.If fails, it can decelerate the speed to park and stop actively.
● Energy-saving
Energy-saving type hydraulic system.
Power recovery has priority, piecewise superimposed electric-hydraulic braking.
Product Paramenters
|
Model
|
|
CPD85
|
CPD100
|
|
||||
|
Configuration number
|
|
GA2Li
|
GA2Li
|
GB2Li
|
||||
|
Rated capacity
|
Q(kg)
|
8500
|
10000
|
10000
|
||||
|
Load center distance
|
c(mm)
|
600
|
600
|
600⑴
|
||||
|
Power mode
|
|
Lithium Battery
|
|
|
||||
|
Driving mode
|
|
Seated
|
|
|
||||
|
Wheel base
|
L1 (mm)
|
2400
|
2580
|
|
||||
|
|
|
|
|
|
||||
|
Tyre type
|
|
Solid type
|
|
|
||||
|
Wheel number(front/rear)
|
|
4X/2
|
|
|
||||
|
Front wheelbase
|
W3/W4(mm)
|
1636/1524
|
|
|
||||
|
Tyre(front/rear)
|
|
8.25-15/250-15
|
|
|
||||
|
|
|
|
|
|
||||
|
Front overhang
|
L2(mm)
|
660
|
|
|
||||
|
Mast tilt angle, front/rear
|
α/β(°)
|
6/9
|
|
|
||||
|
Height with mast retraction
|
H1(mm)
|
2700
|
2850
|
2950
|
||||
|
Free lifting height
|
H3(mm)
|
180
|
|
|
||||
|
Max.Lifting height
|
H(mm)
|
3000
|
|
|
||||
|
Overhead guard height
|
H4(mm)
|
2445
|
|
|
||||
|
Overhead guard clearance(from face of seat)
|
H7(mm)
|
1024
|
|
|
||||
|
Max.Height underworking condition
|
H2(mm)
|
4226
|
4360
|
4510
|
||||
|
Traction pin center height
|
H9(mm)
|
687
|
677
|
|
||||
|
Backrest height(calculated from the fork surface)
|
H13(mm)
|
1012
|
|
|
||||
|
fork size：thickness×widthxlength
|
TXWXL4(mm)
|
85X175X1370
|
|
85X175X1820
|
||||
|
Truck body length(with forks)
|
L(mm)
|
4950
|
5130
|
5580
|
||||
|
Truck body length(without forks)
|
L'(mm)
|
3580
|
3760
|
|
||||
|
Truck body width
|
W2(mm)
|
2116/1750
|
|
|
||||
|
Turning radius
|
r(mm)
|
3140
|
3320
|
|
||||
|
Battery voltage/tapacity(disc harging capacity in 5 hours)
|
V/Ah
|
80/808
|
80/1084
|
|
||||
