Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xianglu
-
Model Number:
-
BDS400-FL2
-
Material:
-
plastic, plastic
-
Dimension:
-
600*304*530mm, 600*304*530mm
-
Magnification:
-
400x, 400X
-
Color:
-
white
-
Nosepiece:
-
Quintuple
-
Filter:
-
blue green amber grey
-
Working Stage:
-
210*241mm
-
WEIGHT:
-
13.5kg
-
Condenser:
-
LWD 72mm (Without Condenser 195mm)
Quick Details
-
Warranty:
-
1 year
-
Theory:
-
Fluorescence Microscope
-
Drawtube:
-
Trinocular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xianglu
-
Model Number:
-
BDS400-FL2
-
Material:
-
plastic, plastic
-
Dimension:
-
600*304*530mm, 600*304*530mm
-
Magnification:
-
400x, 400X
-
Color:
-
white
-
Nosepiece:
-
Quintuple
-
Filter:
-
blue green amber grey
-
Working Stage:
-
210*241mm
-
WEIGHT:
-
13.5kg
-
Condenser:
-
LWD 72mm (Without Condenser 195mm)
Product Description

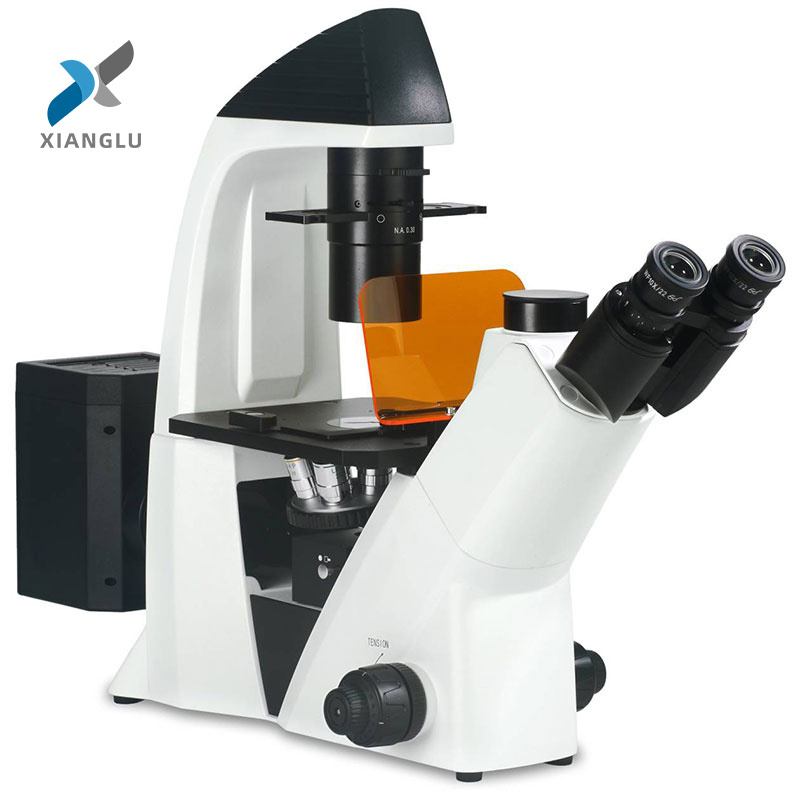

BDS400-FL
Inverted Fluorescence Microscope
New R & D and manufacturing, pleasing and steady, the atmosphere, for the professional and comfortable working environment custom infinite color correction optical system, with the international advanced level of a new generation of products for cell tissue observation and training.
Details Images
1.Same Objective for Both Bright Field & Phase Contrast Observation.
2.New research and new development.
3.Apply to observation and cultivation for cell tissue.
4.4X/10X/20X/40X Objective forBoth Bright Field & Phase Contrast.
5.Long working distance condenser N.A. 0.30，Working distance：72mm.
6.Working distance: 195mm (without condenser)，available for extra high culture dish.
7.Large size stage, convenient for research. Size：240mm（X）× 210（Y）mm.
8.Mechanical stage available for 96 holes plate. Moving range：128mm（X）× 80（Y）mm.
9.Large diameter quintuple nosepiece can be installed more objectives, more convenient for using.
10.Light distribution (both): 100 : 0 (100% for eyepiece);80 : 20 (80% for trinocular head and 20% for eyepiece).
Culture Dish Holder
Product Parameters
Objective Parameter List (Cover-glass thickness1.1mm)
LWD Infinity Plan Objectives
LWD Infinity Plan Phase
Contrast Objectives
|
|
Objectives
|
N.A.
|
Working distance(mm)
|
|
LWD Infinity Plan Objectives
|
L Plan FL 4X
|
0.11
|
12.1
|
|
|
L Plan FL 10X
|
0.25
|
10.3
|
|
|
L Plan FL 20X
|
0.45
|
5.8
|
|
|
L Plan FL 40X
|
0.65
|
5.1
|
|
LWD Infinity Plan Phase Contrast Objectives
|
L Plan FL PHP 4X (Both for Bright Field & Phase Contrast)
|
0.10
|
9.2
|
|
|
L Plan FL PHP 10X (Both for Bright Field & Phase Contrast)
|
0.25
|
10.3
|
|
|
L Plan FL PHP 20X (Both for Bright Field & Phase Contrast)
|
0.45
|
5.8
|
|
|
L Plan FL PHP 40X (Both for Bright Field & Phase Contrast)
|
0.65
|
5.1
|
|
BDS400-FL Inverted Fluorescence Microscope Outfits
|
|
|
|
|||
|
Item
|
Specification
|
|
Outfits
|
|||
|
Eyepiece
|
WF10×／22mm
|
|
●●
|
|||
|
LWD Infinity Plan Objectives
|
L Plan FL 4X／0.11
|
W.D.=12.1mm
|
○
|
|||
|
|
L Plan FL 10X／0.25
|
W.D.=10.3mm
|
○
|
|||
|
|
L Plan FL 20X／0.45
|
W.D.=5.8mm
|
○
|
|||
|
|
L Plan FL 40X／0.65
|
W.D.=5.1mm
|
○
|
|||
|
LWD Infinity Plan Phase Contrast Objectives
|
L Plan FL PHP 4X／0.10
(Both for Bright Field & Phase Contrast) |
W.D.=9.2mm
|
○
|
|||
|
|
L Plan FL PHP 10X／0.25
(Both for Bright Field & Phase Contrast) |
W.D.=10.3mm
|
●
|
|||
|
|
L Plan FL PHP 20X／0.45
(Both for Bright Field & Phase Contrast) |
W.D.=5.8mm
|
●
|
|||
|
|
L Plan FL PHP 40X／0.65
(Both for Bright Field & Phase Contrast) |
W.D.=5.1mm
|
●
|
|||
|
Annular Spot
|
10×/20×/ 40×
|
|
●
|
|||
|
|
4×
|
|
○
|
|||
|
Seidentopf
Trinocular Head |
Inclined 45°, interpupilary distance: 48-76mm
Light distribution (both): 100: 0（100% for eyepiece） 80:20 (80% for trinocular head, and 20% for eyepiece) |
|
●
|
|||
|
Seidentopf
Trinocular Head |
Inclined 45°, interpupilary distance: 48-76mm
Light distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head) |
|
○
|
|||
|
Nosepiece
|
Quintuple
|
|
●
|
|||
|
Mechanical Stage
|
Stage size: X×Y: 210×241mm， Round slide size：Φ110mm,
Attached mechanical stage (available for 96 holes plate, moving range X×Y：128×80mm.) |
|
●
|
|||
|
Culture Dish Holder
|
65mm
|
|
○
|
|||
|
|
54mm
|
|
●
|
|||
|
|
35mm
|
|
○
|
|||
|
|
blood cell counter
|
|
○
|
|||
|
|
Glass Holder
|
|
○
|
|||
|
|
Universal Holder
|
|
○
|
|||
|
Condenser
|
Long working distance, Quickly detachable , N.A.0.3,
Working distance: 72mm (with condenser),195mm(without condenser). |
|
●
|
|||
|
Koehler Illumination
|
6V/30W （input voltage：100V～240V）
|
|
●
|
|||
|
|
5WLED (input voltage：100V～240V)
|
|
○
|
|||
|
Filter
|
Blue
|
|
●
|
|||
|
|
Green
|
|
●
|
|||
|
|
Amber /Grey
|
|
○
|
|||
|
C-mount
|
1 X /0.5X /0.75X C-Mount (focus adjustable)
|
|
○
|
|||
|
Epi Fluorescence Illumination
|
Epi fluorescence media unit , field diaphragm，center adjustable.
|
|
○
|
|||
|
|
100W mercury lamp ,5WLED(input voltage:100V～240V)
|
|
○
|
|||
|
|
B, G, V, UV fluorescence filters can be chosen
|
|
○
|
|||
|
Infinity Fluorescence objective
|
L Plan Fluor 10X/0.3 W.D.=10mm
|
|
○
|
|||
|
|
L Plan Fluor 20X/0.45 W.D.=6.6mm
|
|
○
|
|||
|
|
L Plan Fluor 40X/0.6 W.D.=3.5mm
|
|
○
|
|||
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
BDS400-FL Inverted
Fluorescence
Microscope Size(mm)
