Quick Details
-
Model Number:
-
TLF18-08NO
-
Type:
-
Inductive Sensor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AKUSENSE
-
Theory:
-
proximity sensor
-
Output:
-
switch output
-
Diameter:
-
m12
-
Mounting way:
-
flush
-
Switch output:
-
npn
-
Sensing distance:
-
4 mm ± 10 %
-
Housing:
-
Stainless steel
-
Supply voltage:
-
10-30VDC
-
Switch frequency:
-
1000 Hz
-
Estimated lead time:
-
3 working days
-
OEM service:
-
yes
-
Connection:
-
m8 4 pin connector
Quick Details
-
Use:
-
metal detection
-
Mounting Type:
-
easy
-
Description:
-
hall effect current sensor, inductive sensor
-
Model Number:
-
TLF18-08NO
-
Type:
-
Inductive Sensor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AKUSENSE
-
Theory:
-
proximity sensor
-
Output:
-
switch output
-
Diameter:
-
m12
-
Mounting way:
-
flush
-
Switch output:
-
npn
-
Sensing distance:
-
4 mm ± 10 %
-
Housing:
-
Stainless steel
-
Supply voltage:
-
10-30VDC
-
Switch frequency:
-
1000 Hz
-
Estimated lead time:
-
3 working days
-
OEM service:
-
yes
-
Connection:
-
m8 4 pin connector
Product Description
Specification

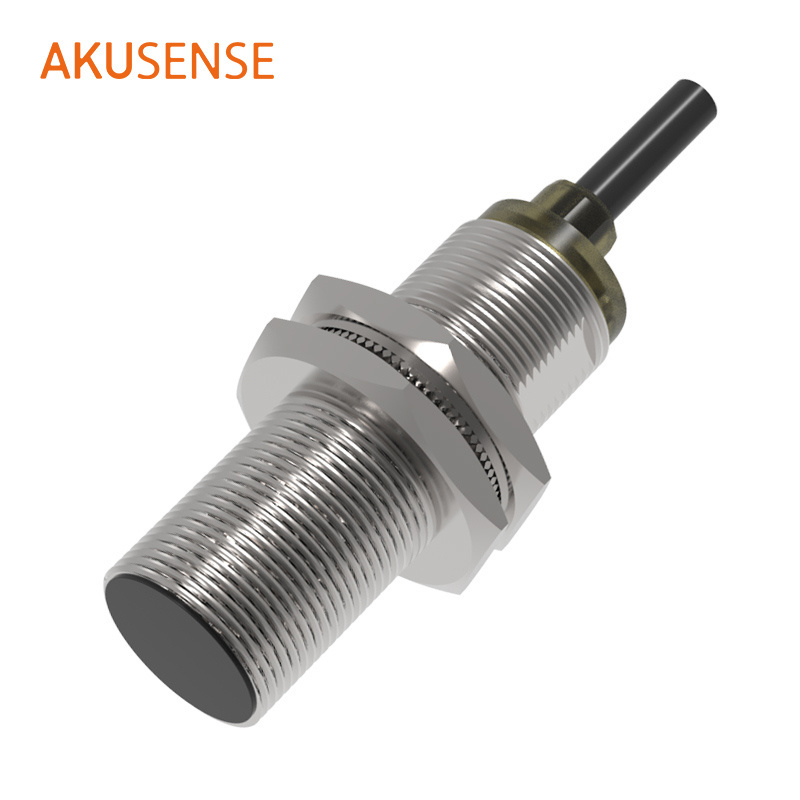

Standard Distance Type (TL series)
●
Classical cylindrical appearance, high stability
●
Adaptive to different occasions, top-notch quality, prolong distance
●
Customizable cables & connectors as requested
|
Model
|
TLF18-08NO
|
|
Type
|
Shielded
|
|
Size
|
M18
|
|
Sensing distance
|
8mm
|
|
Material
|
Nickel plated brass
|
|
Operating Voltage
|
10~30V DC(Ripple＜10%)
|
|
Voltage drop
|
＜1.5V
|
|
Load Current
|
150mA
|
|
No load current
|
＜10mA
|
|
Leakage Current
|
＜0.01mA
|
|
Output Type
|
NPN Open collector， Normally Open
|
|
Switch frequency
|
500Hz
|
|
Response Time
|
0.5ms
|
|
Repeat accuracy
|
＜1.0%(Sr)
|
|
Switch hysteresis
|
＜15%(Sr)
|
|
Material active face
|
PBT
|
|
Operating Temperature
|
-25℃~+70℃
|
|
Protection
|
Short-circuit Protection
|
|
Protection Degree
|
IP 67
|
|
Overload trip point
|
180mA
|
|
Connection
|
2M/3-wires cable
|
