Quick Details
-
Power:
-
15kw
-
Weight:
-
1250
-
Dimension(L*W*H):
-
1519*862*1484 mm
-
Product name:
-
DPFX Series Nozzle Separator
-
Material:
-
Stainless Steel 304/316L
-
Function:
-
Liquid solid separation
-
Bowl inner diameter:
-
430mm
-
Bowl rotary speed:
-
6000 rpm
-
Separation factor:
-
8500
-
Number Of Nozzles:
-
12
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
CONOVAL
-
Voltage:
-
220V / 380V
-
Power:
-
15kw
-
Weight:
-
1250
-
Dimension(L*W*H):
-
1519*862*1484 mm
-
Product name:
-
DPFX Series Nozzle Separator
-
Material:
-
Stainless Steel 304/316L
-
Function:
-
Liquid solid separation
-
Bowl inner diameter:
-
430mm
-
Bowl rotary speed:
-
6000 rpm
-
Separation factor:
-
8500
-
Number Of Nozzles:
-
12
Product Description

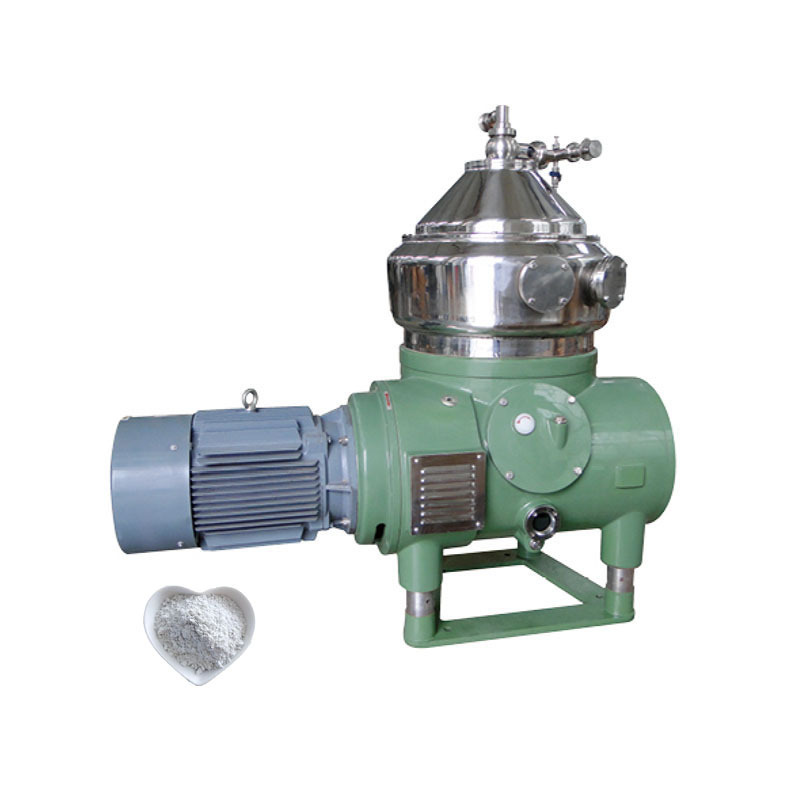

DPFX Series Nozzle Separator Liquid Solid Centrifuge
DPFX series nozzle separator is a kind of continuous discharge separator with high speed, high precision and high efficiency Sevral nozzles are installed outside of the bowl wall. Under the centrifugal force formed by high rotation speed of bowl,insoluble soilds which deposit in the sediment chamber will be discharged out continuously.
Main Features：
DPFX series separator is suitable for solid-liquid two phase separation and concentration which content high solid content
(max.20%),such as fermentation liquor, alga, kaolinic and so on
(max.20%),such as fermentation liquor, alga, kaolinic and so on
Details Images
Specification
|
Model
|
Capacity (M3/H)
|
Inlet pressure (Mpa)
|
Outlet pressure (Mpa)
|
Motor Power (KW)
|
Weight (KGS)
|
Outline Dimension (MM)
|
|
DPFX430
|
5-20
|
0.2
|
≤0.2
|
15
|
1250
|
1800*1120*1910
|
|
DPFX470
|
7.5-30
|
0.2
|
≤0.2
|
30
|
1720
|
1780*1154*1710
|
|
DPFX550
|
25-50
|
0.2
|
≤0.2
|
45
|
2500
|
1860*1300*1860
|
|
DPFX720
|
45-80
|
0.2
|
≤0.4
|
75
|
3000
|
2130*1950*2242
|
Notes:If any change of data, we will not notify further
