Quick Details
-
Capacity:
-
100 Password, 100 Card, 100 fingerprint
-
Orientation:
-
Can be changed easily
-
Application:
-
Office, Home, Apartment
-
OEM:
-
Accept OEM
-
Packing:
-
4pcs
Quick Details
-
Place of Origin:
-
China
-
Product Name:
-
Digtal Door Lock
-
Identification:
-
Fingerprint, M1 Card, Keys and password
-
Capacity:
-
100 Password, 100 Card, 100 fingerprint
-
Orientation:
-
Can be changed easily
-
Application:
-
Office, Home, Apartment
-
OEM:
-
Accept OEM
-
Packing:
-
4pcs

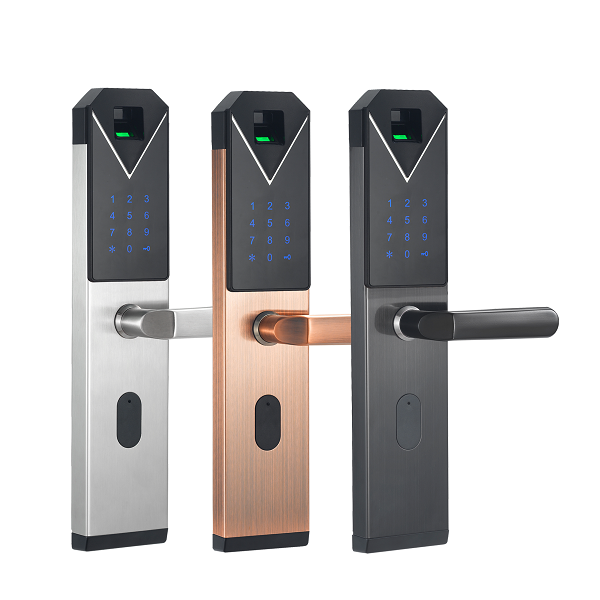

>>>Biometrics Smart Card Digtal Door Lock
Note: Door Thickness must be over than 40mm
>>>Product Introduction:
Features : Delicate appearance design, Reasonable structure, Secure fingerprint lock.
Applications: Government, Police station, Army, Bank, Law Court, Hospital, Office building, Residential area, etc.
We adopt the international advanced biotechnology to ensure its high quality; 4 pieces of AA batteries; handles can prevent the wreaking havoc.
Opening patterns: 1.fingerprint +password+card+key.2.card +password+key.
>>>Lock Dimensions:
>>>Product Specifications:
|
No. |
Items |
Technical parameters |
|
1 |
Sensor resolution |
Bright background, 500dpi |
|
2 |
Sensor damage resistance ability |
1000 times of impact with 4H pencil |
|
3 |
Starting time |
<1 second |
|
4 |
Way of contrast |
1:N |
|
5 |
False rejection rate |
≤1% |
|
6 |
Error rate |
≤0.0001% |
|
7 |
Finger point |
360° |
|
8 |
Fingerprint registration module |
Create one fingerprint module at one time |
|
9 |
Fingerprint update mode |
Auto update |
|
10 |
Fingerprint information |
The fingerprint information will not lose when the battery is off or changed |
|
11 |
Fingerprint capacity |
100 Pieces |
|
12 |
Lights interfere |
Avoid explosion under high light |
|
13 |
Fingerprint collector |
Hard glass, nanometer surface treatment |
|
14 |
Static Power Consumption |
< 30 u A |
|
15 |
Dynamic Power Consumption |
The working current is under 200 mA |
|
16 |
Control system |
Dicaryon dual circuit and individual control |
|
17 |
The fingerprint battery life |
Open door for 5000 times |
|
18 |
The combination battery life |
Open door for 6000 times |
|
19 |
Working voltage |
DC 6 V |
|
20 |
Power supply mode |
Battery powered |
|
21 |
Combination capacity |
100 Groups |
|
22 |
backup power |
DC 9 V |
|
23 |
Low voltage alarm |
4.9 V |
|
24 |
Antistatic ability |
Contact discharge 8KV,air discharge 15KV |
|
25 |
Working temperature |
-10℃ to 55℃ |
|
26 |
Working humidity |
10% to 90% |
|
27 |
Storage temperature |
-20℃ to 7 0℃ |
|
28 |
Combination design |
Random combination |
|
29 |
Combination length |
6-digit numbers |
|
30 |
Door open method |
Left open, right open |
|
31 |
Card Capacity |
100 Pieces |
>>>Dimension of strike plate and lock body:
>>>Packing List:
|
Serial NO. |
Items |
Quantity |
|
01 |
Front lock case |
|
|
02 |
Back lock case |
|
|
03 |
Lock cylinder |
|
|
04 |
Door buckle |
|
|
05 |
lock holder case |
|
|
06 |
Cross recessed raised countersunk head screws(adaptation) |
4 pieces |
|
07 |
Square shaft: 8x8xL (adaptation) |
1 piece |
|
08 |
Lock-in knot:5x5Xl(adaptation) |
1 piece |
|
09 |
2 pieces of mechanical keys |
1 set |
