- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
cansen
-
Model Number:
-
LW30-32
-
Max. Current:
-
32
-
Mechanical Life:
-
100000
-
Color:
-
Blue
-
Certification:
-
TUV, CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
660
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
cansen
-
Model Number:
-
LW30-32
-
Max. Current:
-
32
-
Mechanical Life:
-
100000
-
Color:
-
Blue
-
Certification:
-
TUV, CE

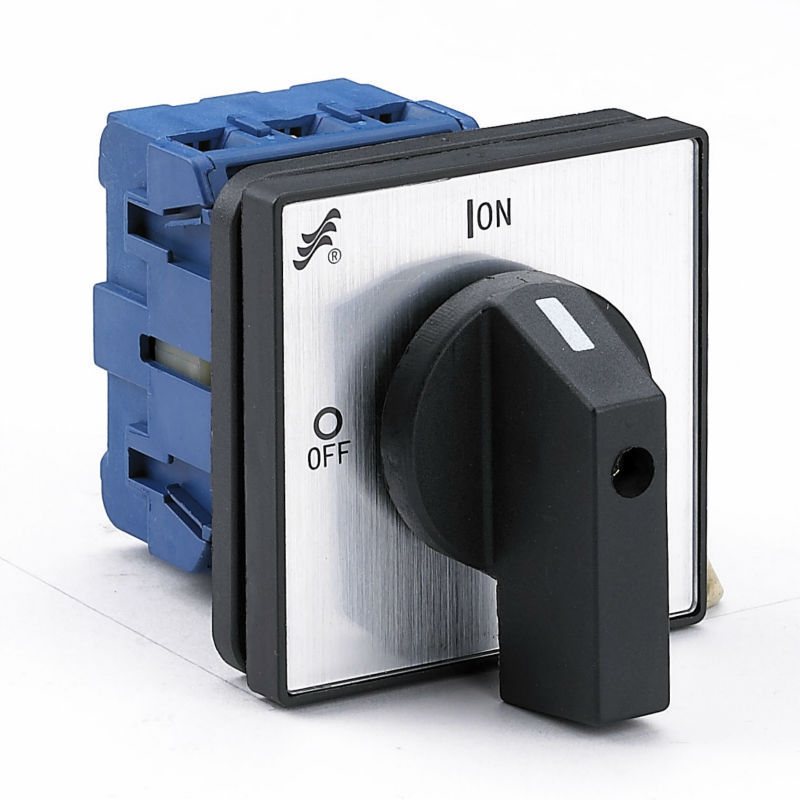

Rotary speed control switch LW30-32 (ROHS,CE certificate) base installation
|
No. |
Tech Parameters |
requirement |
|
1. |
rated voltage |
below 440V |
|
2. |
rated current |
20A,25A,32A |
|
3. |
frequency |
AC50HZ |
|
4. |
No.of poles |
2P,3P,4P |
|
5. |
No.of layers |
make as required with circuit diagram |
|
6. |
installation |
Panel installation |
|
7. |
colour of handle |
black,white,red,grey |
|
8. |
Working temperature |
-25°C~+40°C REMARKS :the average temperature mustn’t be pass 35°C |
|
9. |
Working height |
≤2,000m |
|
10. |
Relative humidity |
≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C) |
|
11. |
Instalation conditions |
polution class III |
|
12. |
Mechanical life |
0.1*10 6 times |
|
13. |
Electrical life |
0.03*10 6 times |
|
14. |
Operative frequency |
120times/hour |
|
15. |
transform angle |
90° |
