Quick Details
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
380*200*320mm
-
Weight (KG):
-
15
-
After-sales Service Provided:
-
Online service
-
Type:
-
Other
-
Product name:
-

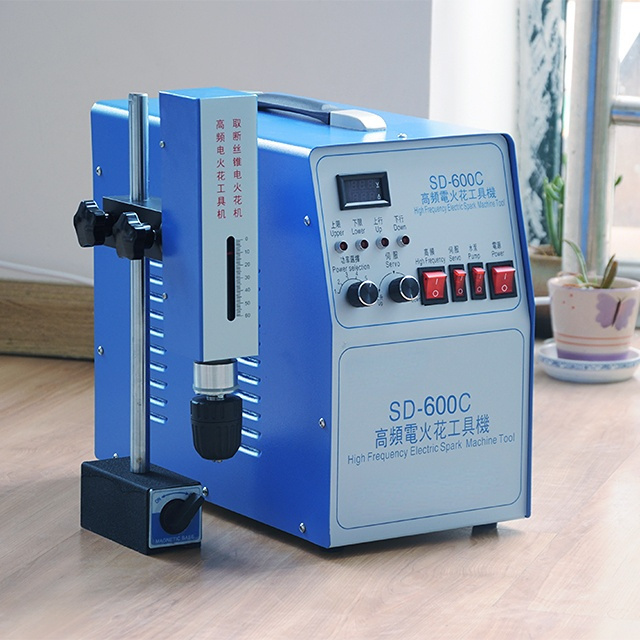

Remove broken reamer sparking hole drilling machine
-
Working liquid:
-
Water
-
Electrode range:
-
0.5mm-10mm
-
Manual travel:
-
310mm
-
Processing speed:
-
1mm/min
-
Processing range:
-
Tap/Drill/Screw/Metal hole
-
Location control:
-
Yes
-
Weight:
-
15kg
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Year:
-
2021
-
Brand Name:
-
Decca
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
380*200*320mm
-
Weight (KG):
-
15
-
After-sales Service Provided:
-
Online service
-
Type:
-
Other
-
Product name:
-
Remove broken reamer sparking hole drilling machine
-
Working liquid:
-
Water
-
Electrode range:
-
0.5mm-10mm
-
Manual travel:
-
310mm
-
Processing speed:
-
1mm/min
-
Processing range:
-
Tap/Drill/Screw/Metal hole
-
Location control:
-
Yes
-
Weight:
-
15kg
Electrolytic Corrosion principle, no damage to work-piece
1.Remove broken in workpiece diameter tap, drill, reamer, tools/tools such as screw, plug gauge;
2.can be working in any size, shape of workpieces
3.Various angles,different shapes from surface of electrodes,processing multiple holes
4.Processing no precision requirement hole
5.Especially suitable for difficult to processing large workpieces in edm machine
Remove Broken taps
short electrode and reduce the jitter
Remove broken screw
the tap above M20 can be processed by several times
Working principle
Use workpiece and electrode contact broken tap from short-circuit spark, corrosion broken tap, remove broken tap bit by bit.
Application
1.Remove broken in workpiece diameter tap, drill, reamer, tools/tools such as screw, plug gauge;
2.can be working in any size, shape of workpieces
3.Various angles,different shapes from surface of electrodes,processing multiple holes
4.Processing no precision requirement hole
5.Especially suitable for difficult to processing large workpieces in edm machine
Operating feature
1.Automatically feed processing
2.Using water as working fluid, economic and convenient
3.220 v power supply, convenient connection
4.Automatic deep processing control
5.Built-in imported high-pressure electromagnetic pumps, water supply convenient and quick, 2 seconds after launch out of the water
6.Cooling fan, can guarantee tool pilot time continuous working more than 12 hours
7.Working head can be arbitrary Angle adjustment
The choice of electrode (broken tap, screws, for example)
According to the size of the broken item to select suitable electrode shape and size of electrode materials,and choose brass wire, brass rod or copper tube, etc
