Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
SUOTO
-
Model Number:
-
G series
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
1-30hp
-
Outlet Size:
-
1-12 inch
-
Power:
-
1-50kw
-
motor:
-
Electric, diesel
-
Capacity:
-
9~200 M3/h
-
Feature:
-
High Efficiency
-
Material:
-
SS304, SS316, cast iron
-
Theory:
-
Metering Pump
-
Function:
-
Transport Liquid
-
Color:
-
Customers' Requirement
-
MOQ:
-
1 Set
-
Liquid:
-
Strong Corrosion Resistance
-
Frequency:
-
50Hz-60Hz
Quick Details
-
Application:
-
Industrial Utilities, Machining, Pharmaceutical industry
-
Pressure:
-
High Pressure
-
Voltage:
-
220V/380V/416V
-
Warranty:
-
1 year
-
Brand Name:
-
SUOTO
-
Model Number:
-
G series
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
1-30hp
-
Outlet Size:
-
1-12 inch
-
Power:
-
1-50kw
-
motor:
-
Electric, diesel
-
Capacity:
-
9~200 M3/h
-
Feature:
-
High Efficiency
-
Material:
-
SS304, SS316, cast iron
-
Theory:
-
Metering Pump
-
Function:
-
Transport Liquid
-
Color:
-
Customers' Requirement
-
MOQ:
-
1 Set
-
Liquid:
-
Strong Corrosion Resistance
-
Frequency:
-
50Hz-60Hz
Products Description

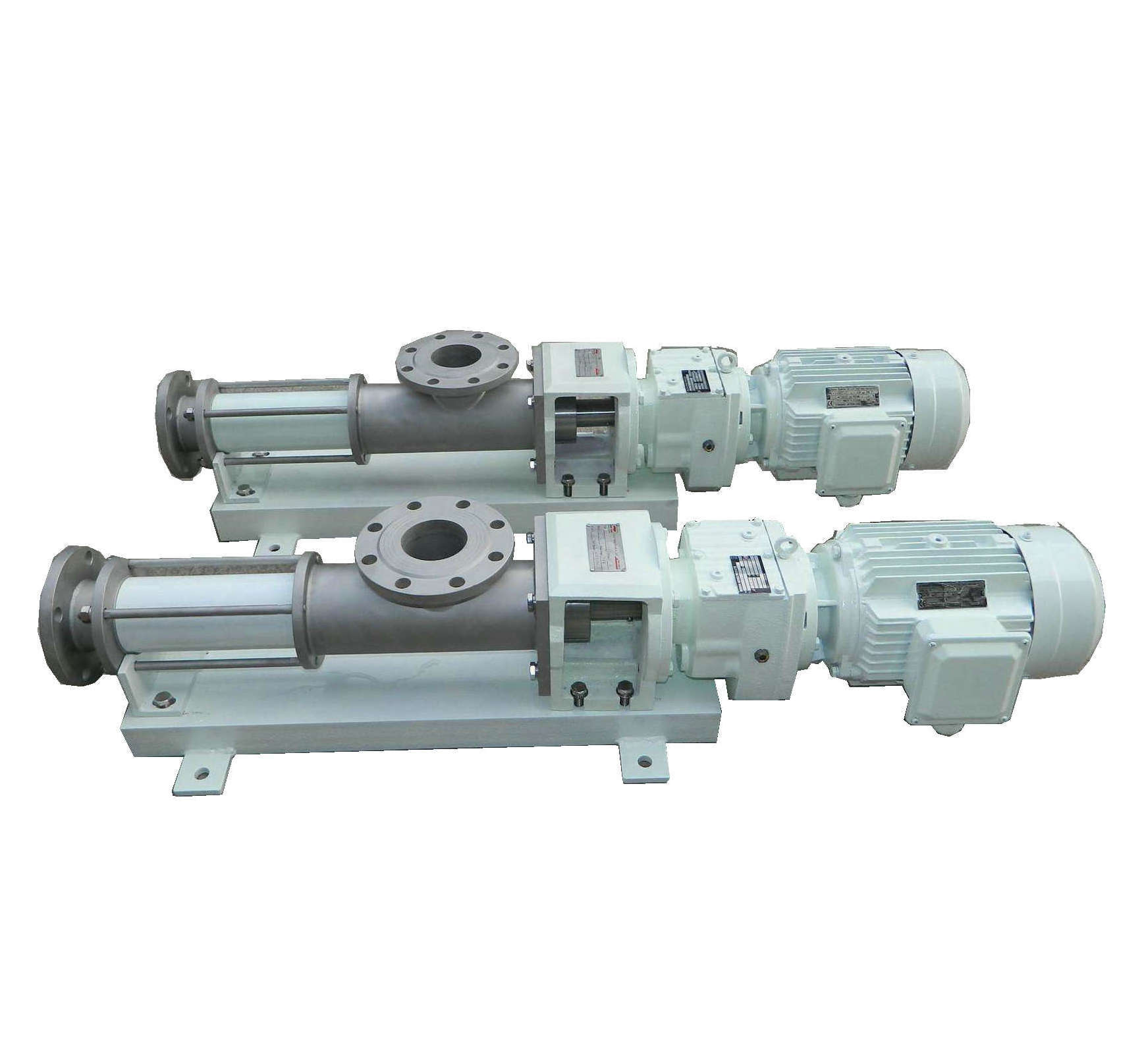

G Progressive Cavity Helical Rotor Mono Screw Pump for Mud Similar to Netzsch MONO Seepex Allweiler
Because the stator adopts various elastic material, this kind of pump can convery high viscosity fluid containing rigid suspended particles or fiber. The flow rate is proportional to the speed.
Features
1. Wide application; Convey both fluid and non-fluid
2. Constant fluid conveying process, with little pulsating flow
3. No stirring of medium in the pump, no extrusion or cutting
4. Capacity is directly proportional to the speed; Variable conveying; Used as metering feeding
5. Adopt elastic stator, with certain abrasion resistance
Medium
1. Medium of various viscosities (viscosity is up to 106 mm2/s)
2. Fluid of various concentrations and dry material through separation dehydration
3. Various solid particles, fibers and suspended matters
Product Series
1. Standard Series Applied to various structure forms
2. Long-lead Series Applied to low-pressure large-flow
3. Spraying Series Special for concrete spraying before coal water slurry boiler
Several Configurations
1. Material: Components and parts can be made of different metals and rubber materials
2. Drive Types: Motor reducer drive, variable speed motor drive, mechanical variable speed drive, etc.
Performance Parameters
|
Model
|
Capacity
|
Pressure
|
Speed
|
Motor
|
Head
|
(NPSH)r
|
Inlet
|
Outlet
|
|
|
(m3/h)
|
(MPa)
|
(r/min)
|
(KW)
|
(m)
|
(m)
|
(mm)
|
(mm)
|
|
G20-1
|
0.8
|
0.6
|
960
|
0.75
|
60
|
4
|
25
|
25
|
|
G20-2
|
|
1.2
|
|
1.5
|
120
|
|
|
|
|
G25-1
|
2
|
0.6
|
960
|
1.5
|
60
|
|
40
|
32
|
|
G25-2
|
|
1.2
|
|
2.2
|
120
|
|
|
|
|
G30-1
|
5
|
0.6
|
960
|
2.2
|
60
|
|
50
|
40
|
|
G30-2
|
|
1.2
|
|
3
|
120
|
|
|
|
|
G35-1
|
8
|
0.6
|
960
|
3
|
60
|
|
65
|
50
|
|
G35-2
|
|
1.2
|
|
4
|
120
|
|
|
|
|
G40-1
|
12
|
0.6
|
960
|
4
|
60
|
|
80
|
65
|
|
G40-2
|
|
1.2
|
|
5.5
|
120
|
|
|
|
|
G50-1
|
20
|
0.6
|
720
|
5.5
|
60
|
4.5
|
100
|
80
|
|
G50-2
|
|
1.2
|
|
7.5
|
120
|
|
|
|
|
G60-1
|
30
|
0.6
|
720
|
11
|
60
|
5
|
125
|
100
|
|
G60-2
|
|
1.2
|
|
15
|
120
|
|
|
|
|
G70-1
|
40
|
0.6
|
720
|
11
|
60
|
|
150
|
125
|
|
G70-2
|
|
1.2
|
|
18.5
|
120
|
|
|
|
|
G85-1
|
65
|
0.6
|
630
|
15
|
60
|
|
150
|
150
|
|
G85-2
|
|
1.2
|
|
30
|
120
|
|
|
|
|
G105-1
|
100
|
0.6
|
500
|
30
|
60
|
|
200
|
200
|
|
G105-2
|
|
1.2
|
|
55
|
120
|
|
|
|
|
G135-1
|
150
|
0.6
|
400
|
45
|
60
|
|
250
|
250
|
|
G135-2
|
|
1.2
|
|
90
|
120
|
|
|
|
