Quick Details
-
Brand Name:
-
CHANGI
-
Model Number:
-

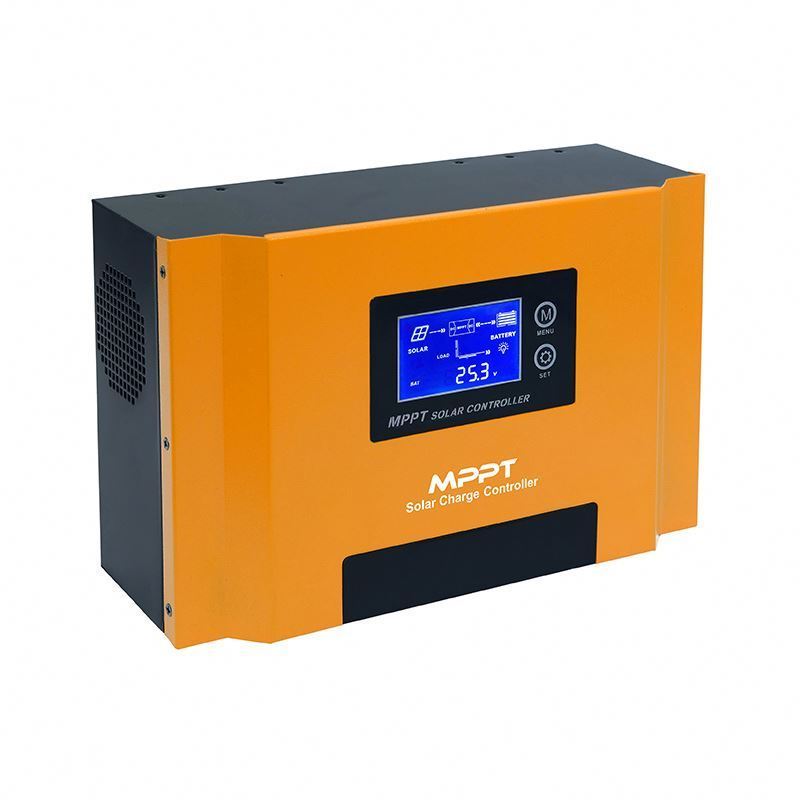

PY-Wonder 1 MPPT solar charge controller
-
Work Time (h):
-
12
-
Max PV Power:
-
5600w
-
Max PV Voltage:
-
150v
-
Certificate:
-
CE,ISO
-
Warranty:
-
36 months
-
Product name:
-
MPPT solar charge controller
-
Rated current:
-
10A/20A/30A/40A/50A/60A/80A/100A
-
Battery voltage:
-
12v/24v/48v auto recognition
-
Max PV input voltage(VOC):
-
150v
-
Charging mode:
-
MPPT maximum power point tracking
-
Battery type:
-
lead acid,gel,lifepo4,customized
-
MPPT route number:
-
1
-
Display:
-
LCD
-
MPPT Tracking efficiency:
-
>99%
-
Communication port:
-
RS485
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHANGI
-
Model Number:
-
PY-Wonder 1 MPPT solar charge controller
-
Work Time (h):
-
12
-
Max PV Power:
-
5600w
-
Max PV Voltage:
-
150v
-
Certificate:
-
CE,ISO
-
Warranty:
-
36 months
-
Product name:
-
MPPT solar charge controller
-
Rated current:
-
10A/20A/30A/40A/50A/60A/80A/100A
-
Battery voltage:
-
12v/24v/48v auto recognition
-
Max PV input voltage(VOC):
-
150v
-
Charging mode:
-
MPPT maximum power point tracking
-
Battery type:
-
lead acid,gel,lifepo4,customized
-
MPPT route number:
-
1
-
Display:
-
LCD
-
MPPT Tracking efficiency:
-
>99%
-
Communication port:
-
RS485
1. Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating efficiency increase near 20%;
2. LCD display PV data and chart simulates power generation process;
3. Multiple working modes to adapt different working occasion;
4. Wide PV input voltage range, convenient for system configuration;
5. Intelligent battery management function, extend battery life;
6. 12V/24V/48V automatic recognition, users are more flexible and convenient to use.
7. RS485 communication port optional.
| Model: Wonder1 |
150/10, 150/20, 150/30
(10/20/30) |
150/40, 150/50, 150/60
(40/50/60) |
150/80, 150/100
(80/100) |
| Rated Current | 10A/20A/30A | 40A/50A/60A | 80A/100A |
| Rated System Voltage | 12V/24V/48V Auto Recognition | ||
|
Max PV Input Voltage(Voc)
temperature) |
150V | ||
| MPPT Tracking Voltage Range | 12V system:15V-120V;24V system:30V-120V;48V system:60V-120V | ||
|
Recommended operating voltage range |
12V system:15V-20V;24V system:30V-40V;48V system:60V-80V | ||
| PV array Max power |
12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/
1120W(80A)/1400W(100A);
2240W(80A)/2800W(100A);
4480W(80A)/5600W(100A) |
||
| Battery Type |
Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification) |
||
| Floating Voltage | 13.8V/Single battery | ||
| Charge Voltage | 14.2V/Single battery | ||
| Charging Protection Voltage | 15V/Single battery | ||
| Promote recovery voltage | 13.8V/Single battery | ||
|
Recovery voltage after low voltage disconnect |
12.5V/Single battery | ||
| Discharge Limited voltage | 10.5V/Single battery | ||
|
Temperature Compensation Coefficient |
-3mV / ℃ / 2V (25℃ is base line) (Optional) | ||
| Charging Mode | MPPT maximum power point tracking | ||
| Charging Method | Three stages: constant current(MPPT); constant voltage; floating charge | ||
| Protection | Over-voltage/under-voltage/over-temperature/PV anti-reverse protection | ||
| Conversion Efficiency | >98% | ||
| MPPT Tracking Efficiency | >99% | ||
| Machine Size(L*W*Hmm) | 185*135*65 | 240*143*74 | 280*180*100 |
| Package Size(L*W*Hmm) |
235*185*116(1pc)
383*249*246 (4pcs) |
290*203*126(1pc)
419*304*266 (4pcs) |
330*240*153(1pc)
487*345*166 (2pcs) |
| N.W(kg) | 1.15(1pc) | 1.8(1pc) | 3.7(1pc) |
| G.W.(kg) | 1.35(1pc) | 2(1pc) | 4.0(1pc) |
| System Parameters | |||
| Display | LCD | ||
| Thermal Method | Cooling fan in intelligent control | ||
| Type Of Mechanical Protection | IP20 | ||
| Operating Temperature | -15℃~+50℃ | ||
| Storage Temperature | -20℃~+60℃ | ||
| Elevation | 5000m(Dreating above 2000m) | ||
| Humidity | 5%~95%(No condensation) | ||
| Communication | RS485/APP(WIFI monitoring or GPRS monitoring) | ||
| Accept OEM/ODM | |||
Safe Packaging
Our factory specialize in designing and manufacturing portable power stations, solar inverters, and pure sine wave inverters for more than 15 years.
Q1: Do you support OEM?
A1: Yes. OEM & ODM are available.
Q2: Do you have any MOQ?
A2: Yes, we have MOQ for mass production, it depends on the different models. 1~10pcs sample order is available. Welcome to take samples for testing.
Q3: What kind of certificate you have?
A3: ISO, CE,IEC etc. All series product pass different laborary testing according to your special requirements.
Q4: How is your after-sale service?
A4: We provide 3 years warranty and 1% sapre parts for free.
We have specialized after-sales service engineers to provide professional after-sales service and technical support.
Q5: Does your company also provide other solar products except Inverter?
A5: Yes, we also provide other solar products for the whole solar power systems, such as solar charge controllers, solar panels, off grid solar inverters, on/off grid in one inverters, batteries, and other accesories related to the solar power system.
Q6: How to choose a right inverter?
A6: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q7 How about the delivery time?
A7: 3- 7 days for sample; 10-20 days for bulk order.
Q8: How to solve the technical problem?
A8: 24 hours after-service consultancy just for you and to make your problem to solve easily.
