Quick Details
-
Dimension(L*W*H):
-
1740*260*420mm
-
Weight:
-
320 KG
-
Drilling Diameter:
-
50-130mm
-
Mobility:
-
Move by Crawler
-
Product name:
-
DTH Drilling Rig
-
Application:
-
Construction
-
Feature:
-
Light Weight High Drilling Efficiency
-
Key words:
-
DTH Blasthole Drilling Machine
-
Drill rod diameter:
-
42-60mm
-
Working Pressure(bar):
-
0.5-1MPA
-
MOQ:
-
1 Set
-
Advantage:
-
Drill Rocks Easy
-
Certification:
-
ce
-
Drill rod length:
-
1025MM
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG/OEM
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
1740*260*420mm
-
Weight:
-
320 KG
-
Drilling Diameter:
-
50-130mm
-
Mobility:
-
Move by Crawler
-
Product name:
-
DTH Drilling Rig
-
Application:
-
Construction
-
Feature:
-
Light Weight High Drilling Efficiency
-
Key words:
-
DTH Blasthole Drilling Machine
-
Drill rod diameter:
-
42-60mm
-
Working Pressure(bar):
-
0.5-1MPA
-
MOQ:
-
1 Set
-
Advantage:
-
Drill Rocks Easy
-
Certification:
-
ce
-
Drill rod length:
-
1025MM
Product Description
DTH drilling can be performed in almost any rock drill-ability category. It is a common drilling equipment in the natural gas extraction, mineral extraction,drilling water wells, construction, creating oil wells. DTH drilling rigs can be equipped with diesel or electric motors according to different working conditions. During the rock drilling process, the impactor sneaks into the borehole, which can reduce the energy loss caused by the impact of the drill rod, thereby reducing the influence of the drilling depth on the borehole.
Product Paramenters
|
Model
|
YG-70
|
YG-80
|
YG-100
|
YG-120
|
|
Drilling Diameter
|
50-90mm
|
90-120mm
|
80-100mm
|
100-150mm
|
|
Drilling Depth
|
≤15m
|
≤15m
|
≤25m
|
≤40m
|
|
Drilling Pipe Diameter
|
42mm
|
42mm
|
50mm
|
60mm
|
|
Power
|
3kw
|
4kw
|
4kw
|
5.5kw
|
|
Air Consumption Volume
|
4.5m3/min
|
4.5m3/min
|
6m3/min
|
10m3/min
|
|
Weight
|
320kg
|
340kg
|
470kg
|
480kg
|
|
Size(mm)
|
1740*260*420
|
1740*260*420
|
2280*440*550
|
2230*380*550
|

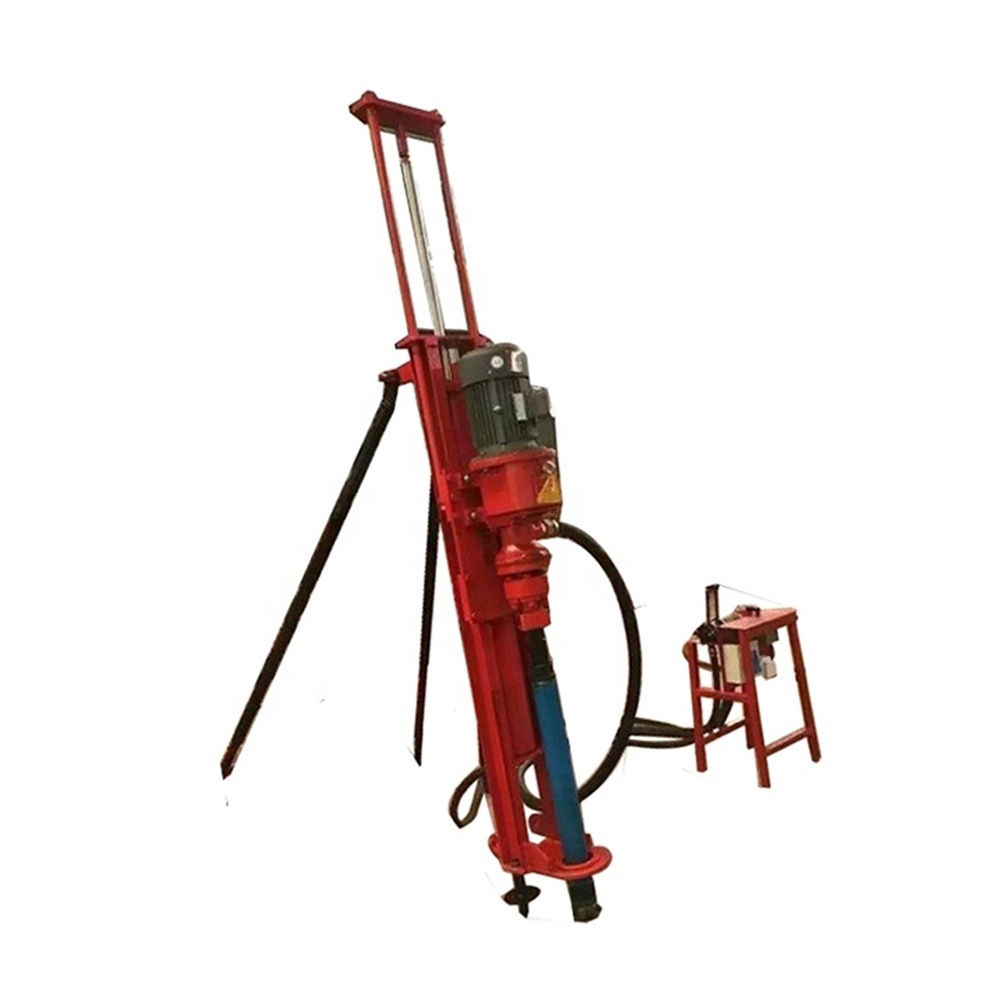

Product Display
Product Real Shot
Product Usage
Product Packaging
Packaging Details
1. Out package: Standard marine export plwywood cases;
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Delivery Time
Within one week
Shipping
Port : Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight : FOB/CIF/DDU quotation are all available.
Transport method : By logistics; by automobile; by train; by shipping; by air etc.
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Delivery Time
Within one week
Shipping
Port : Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight : FOB/CIF/DDU quotation are all available.
Transport method : By logistics; by automobile; by train; by shipping; by air etc.
