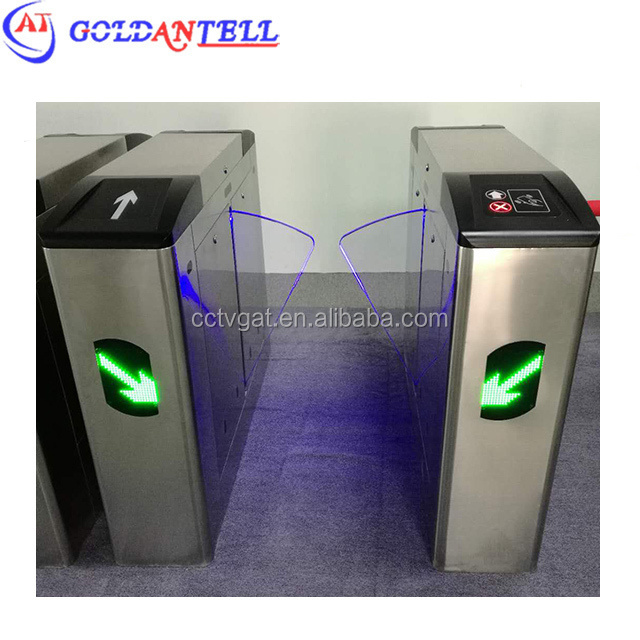

Half height prestige security bidirectional flap barrier gate automation turnstile rfid door entry system

Half height prestige security bidirectional flap barrier gate automation turnstile rfid door entry system

FOB Reference Price: Get Latest Price

≥2 Sets

US $1200

≥1000 Sets

US $655

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Passage width:: 550mm-600mm

Pass speed:: 30-40 persons/min

Power supply:: 110~240 V(AC)

Max power consumption:: 60w

Frequency:: 50~60 Hz

IP Protection:: IP54

Working temperature:: -15~75 °C

Working environments:: indoor/outdoor

Dimension excluding bars:: 1200x300x1000 mm

Net weight:: 70 Kg

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Goldantell/OEM

Model Number:: GAT-NEW series

Passage width:: 550mm-600mm

Pass speed:: 30-40 persons/min

Power supply:: 110~240 V(AC)

Max power consumption:: 60w

Frequency:: 50~60 Hz

IP Protection:: IP54

Working temperature:: -15~75 °C

Working environments:: indoor/outdoor

Dimension excluding bars:: 1200x300x1000 mm

Net weight:: 70 Kg

Half height prestige security bidirectional flap barrier gate automation turnstile rfid door entry system

—— —— —— —— —— —— —— —— —— —— —— —— —— ——

Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin Machine&QR code/Bar code System&ESD Tester Access Control(If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except acess system,also can use remote control.

Field Application

1. Operation Place:Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

2. Wing color: black, red, black or others optional.

Specification

1	Power	AC 220±10% Volt, 50HZ
2	Operating temperature	-15°C--75°C
3	Relative Humidity	≤95%, No Condensation
4	Arm length	51cm
5	Passing Speed	30~40 persons/min(IC Card)
6	Motor	0.5NM/24V(Fully Automatic)
7	Input Connection	+12V Level Signal or Pulse Wide>100ms DC12V
8	Communication Connection	RS485 Communication Module Standard.
9	Material	SUS304,thickness is no less than 1.3mm
10	Protection Grade	IP54
11	Colour	SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)

Detailed Images

1- Control board Name: Control board (panel) with LCD
	2- Retractable Flap Wings Name: Retractable Flap Arms Material: Acrylic Color: transparent, or standard red, blue, black and so on. Led Optical light (optional): standard blue, green, red and so on
3-Reading or scanning Area Name: Reading / scanning Area Reader type: rfid cards as right, or fingerprint. Access Indicator signal: two signs, if no entry or invalid access, for " red cross " ; only valid access with right rfid cards for " green arrow ".
	4-IR sensors Name: IR sensors Functions:anti-pinching, Anti-trap function

Access Control

More Access control system

-rfid card or wristband control

-fingerprint or fingerprint +rfid+password

-QR code /barcode , ticket control

-esd testing system

-facial recognition

Intelligent Series with link

* Access System: facial recognition

* Model: GAT-214

* System testing included

91.8% Response Rate

Intelligent Series with link

_{* Access System:

QR code/ barcode}

* Model: GAT-206

* System testing included

91.8% Response Rate

Intelligent Series with link

* Access System: fingerprint

* Model: GAT-218

* System testing included

91.8% Response Rate

Project Sites

Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control.

For more kinds of "TURNSTILE GATE".

Packing & Shipping

Package-Type: bubble bags + carton case Outer packaging: crate case for one package, or high-quality wooden case for the whole package

Standard Function

1. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.

2. Before received the open signal, the turnstile will lock automatically
3. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
4. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
5. Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
6. Infrared induction clamp function (4 pairs Infrared).
7. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
8. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
9. Can manager and long-range control the turnstile directly by managing the computer.
10. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.

Special function:

1. LED counting function
2. Box house can lengthen, swing arm lengthen
3. Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared) Voice Prompt Function
4. Normally open or closed can be adjust to meet the requirements of the different place. Sound and light alarm prompt functions
5. Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately.

Competitive service

1. pre-sale service: good communication to better understanding of your demand,our professional and passionate staff will soon offer you full product info including manual, testing video,details picture, certification and similar project. Furthermore, to save your time and cost, we can also give you professional suggestion and effective solutions to best support your item.

2. on-purchase service: keep updating the production process to you,once production is well done, will send the product clear photos and testing video for your final confirmation.

3. after-sale service: regarding the usage, offer you the instruction, manual or detailed video to guide you quickly install and use the product. Regarding guarantee & repairing, if any product quality question in warranty, we are totally responsible for it. If spare parts was damaged, we will send you free accessories By fastest express way,you no need bear any fee. If other problem resulted the product work unstable, our engineers will instruct and help you solve it asap,only need you take a video or photo for us.

4. OEM/ODM service: More than 10 years powerful ODM/OEM ability,could make product shape design, customize logo, customize product size and color, customize package.

5. professional service: 16 hours online or off-line prompt response to your inquiry; help you confirm what product you really need; product and related software system can be both provided by us.
