Quick Details
-
Input:
-
24 HD MI
-
Output:
-
RF DVB-C DVB-T ATSC ISDBT
-
OSD:
-
Support
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Support:
-
TS Re-multiplexing
-
Management:
-
web-NMS
-
Power supply:
-
AC 110V± 10%50/60Hz AC 220 ± 10% 50/60Hz
-
Size:
-
482mm*328mm*44mm
Quick Details
-
Place of Origin:
-
China
-
Product name:
-
video encoder Modulator
-
Application:
-
Digital Television Front End System
-
Input:
-
24 HD MI
-
Output:
-
RF DVB-C DVB-T ATSC ISDBT
-
OSD:
-
Support
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Support:
-
TS Re-multiplexing
-
Management:
-
web-NMS
-
Power supply:
-
AC 110V± 10%50/60Hz AC 220 ± 10% 50/60Hz
-
Size:
-
482mm*328mm*44mm

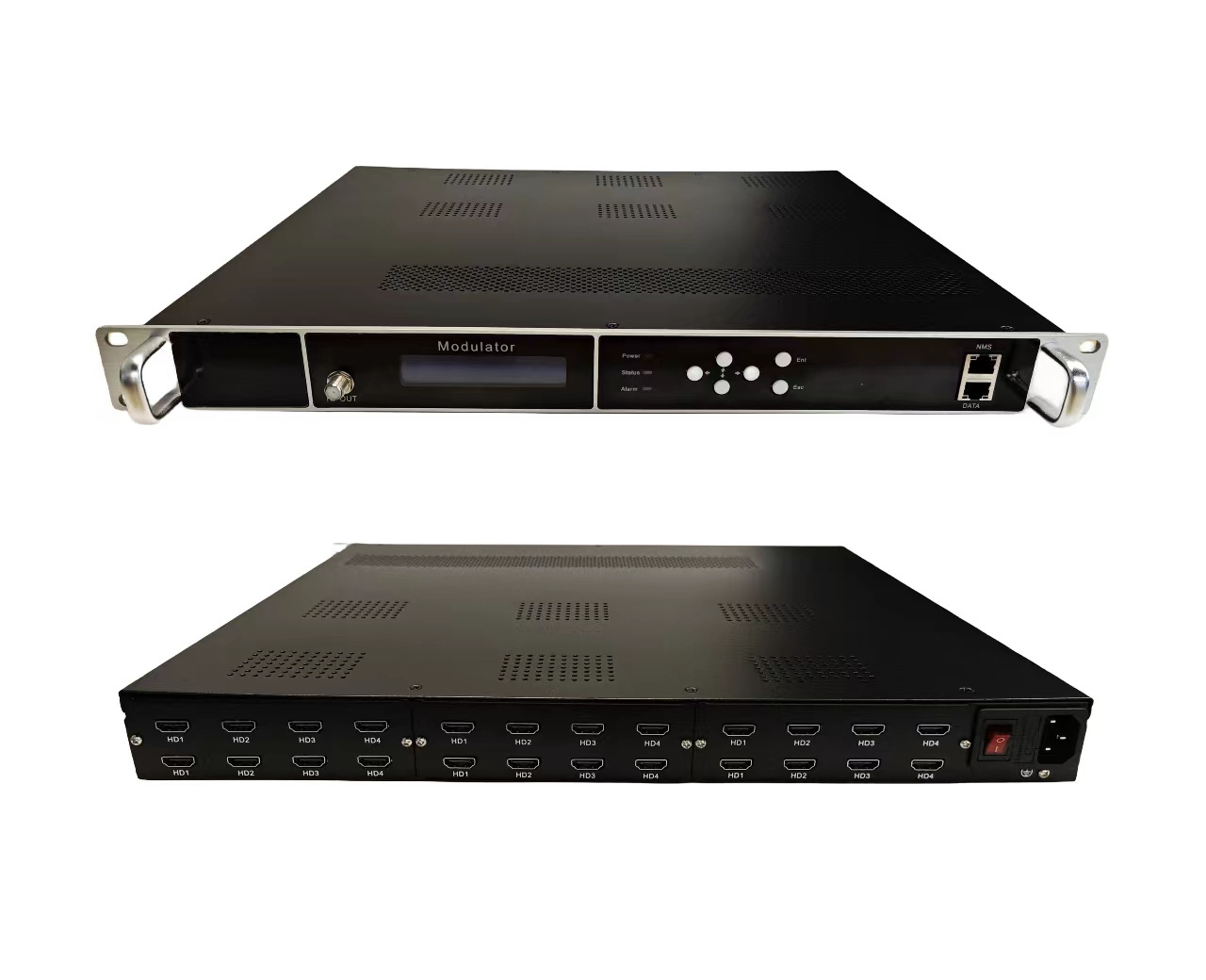

New Product Multi-Channel Digital TV HD Encoder Modulator All-in-One
Product Description
Specification
General Description
The EX2408X series editorial tuner is a newly developed cost-effective device with input HDMI and modulation functions. The device supports 8/16/20/24 HDMI (optional) inputs, 1 Gigabit IP I/O; 8 carrier (ATSC, ISDBT, DTMBT, DVB-C /-T) outputs and 1 MPTS output. A single unit integrates a complete set of front-end system functions, featuring high integration, high performance and low cost, which is very suitable for digital TV transmission systems in hotels, clubs, hospitals, bathrooms and other places.
Key Features
Supports 24 HDMI inputs (supports HDCP)
Supports 1 Gigabit IP input/output, /MPTS output, UDP/RTP and protocol (multicast), RTSP unicast output optional.
Supports different carrier modulation (ATSC, ISDBT, DTMBT, DVB-C/- T) output options
Support LCD and key functions
Support network management (Web)
Support online upgrade
Supports multiplexed outputs, pid remapping
|
Input
|
HDMI*24
|
|
|
|
|
IP
|
|
|
|
Output
|
RF output 8 frequencies（DVB-C/DVB-T/ATSC/ISDBT/DMBT）
|
|
|
|
|
IP output, (MPTS)
|
|
|
|
|
|
|
|
|
Video Encoding
|
Encode Format
|
MPEG-4 AVC/H.264
|
|
|
|
Input port
|
HDMI
|
|
|
|
Input Resolution
|
1920×1080P/1920×1080i/1280×720P/720x576i/
720x480i @50/59.94Hz |
|
|
|
Output Resolution
|
1920×1080_30P,1920×1080_30P,1280×720_30P,
720x576_25P,720x480_25P |
|
|
|
Code Rate
|
1Mbps~13Mbps（each channel)
|
|
|
|
|
|
|
|
Video Encoding
|
Encode Format
|
MPEG1 Layer2
|
|
|
|
Sample Rate
|
48KHz
|
|
|
|
Bit Rate
|
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps, 384kbps
|
|
Other similar products
Packing&haulage
Packing
environmental protection brown carton packaging
