Quick Details
-
Brand Name:
-
wanrooetech
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
depends
-
Power (kW):
-
90
-
Weight (T):
-
3
-
Product name:
-
Single Shaft Shredder Knife Knives Blade
-
company brand:
-
wanrooetech
-
shaft design:
-
single shaft
-
motor brand:
-
Siemens
-
blade material:
-
SKD-11
-
power source:
-
380V 50Hz
-
Weight:
-
depends
-
Power(W):
-
90-180kw
-
Capacity:
-
500-5000kg/h
-
Color:
-
Customers' Demand
-
Certification:
-
CE
Quick Details
-
Max.Production Capacity (kg/h):
-
2000
-
Place of Origin:
-
Jiangsu, China
-
Production Capacity (kg/h):
-
100 - 2000 kg/h
-
Brand Name:
-
wanrooetech
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
depends
-
Power (kW):
-
90
-
Weight (T):
-
3
-
Product name:
-
Single Shaft Shredder Knife Knives Blade
-
company brand:
-
wanrooetech
-
shaft design:
-
single shaft
-
motor brand:
-
Siemens
-
blade material:
-
SKD-11
-
power source:
-
380V 50Hz
-
Weight:
-
depends
-
Power(W):
-
90-180kw
-
Capacity:
-
500-5000kg/h
-
Color:
-
Customers' Demand
-
Certification:
-
CE

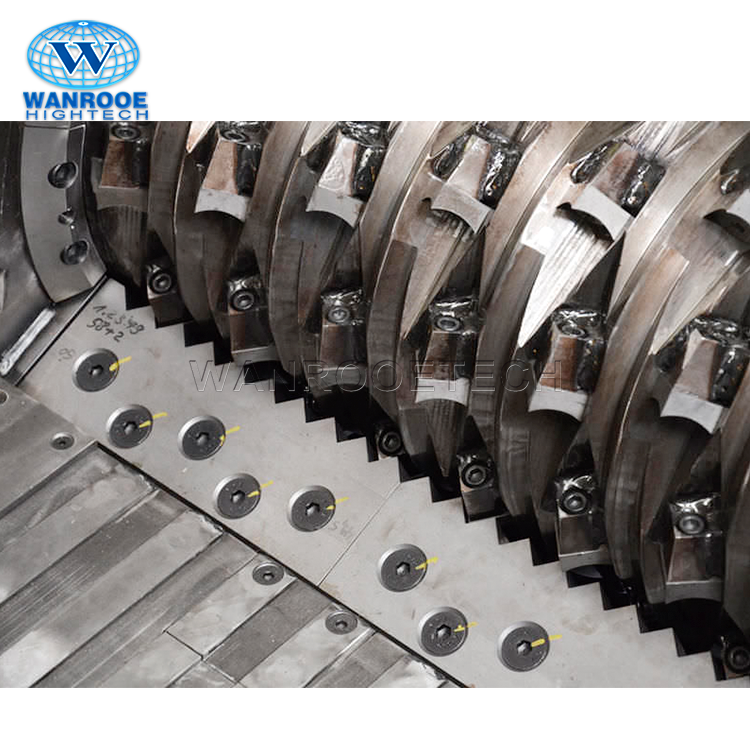

Single Shaft Shredder Knife Knives Blade
To better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, WhatsApp, wechat, etc.)
1. The shredder single shaft for plastic with the big feeding mouth, it can put the big plastic or rubber product freely.
2. The rotary and cutting blade with edge of special design, it can get very high efficiency and high capacity.
3. The shredder single shaft for plastic is controlled by PLC system; the blade can rotate in the opposite direction and close automatically if something unexpected happens; with very high safety service.
4. The shredder single shaft for plastic runs slowly with low noise and less dusty.
5. The blade material with special alloy steel made, with a long life.
6. All the machinery and electrical devices are protected following the European CE standard.
7. Hydraulic system Pushes the material automatically to the shredding rotor while working. More efficient and can achieve a high capacity. According to material kind, it can adjust the pushing speed to avoid overload.
8. The cooler system(optional) can maintain the temperature for continuous operation.
Application Areas:
The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:
•Refuse-derived fuel: straw, municipal solid waste;
•Textile: cloth fiber, nylon;
•Paper: industrial waste paper, packing paper, cardboard paper;
•Cable wires: copper core cable, aluminum cable, composite cables;
•Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
•Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums.
•Metal: Lathe Shaving Swarf Scraps.
|
Related Product |
| /Double Shaft Shredder Blade/ | |
| Double Shaft Shredder with loading hoppers, equipped with high-quality cutters with low rotation speed for lower energy consumption and noise reduction; It incorporates two counter-rotating shafts that intermesh with each other. | |
| Learn More |
|
Related Product |
| /Crusher Blade/ | |
| Plastic crusher is specialized in crushing various kinds of plastic materials into different sizes of granules(3-8mm). Crushed plastics can be recycled for the reproduction of plastic products. This machine can help reduce the volume of plastic waste, greatly save costs and resources. | |
| Learn More |
|
Motor power(kW) |
PNDS-600 |
PNDS-800 |
PNDS-1000 |
PNDS-1200 |
PNDS-1500 |
|
Rotating speed(rpm) |
80 |
80 |
80 |
80 |
80 |
|
Rotating blades(pcs) |
23+4 |
42+4 |
54+4 |
66+4 |
90+4 |
|
Fixed blades(pcs) |
4 |
4 |
4 |
4 |
6 |
|
Hopper intent(mm) |
790x600 |
1300x800 |
1300x1000 |
1300x1200 |
1300x1500 |
|
Change screen mesh |
Manual |
hydraulic |
hydraulic |
hydraulic |
hydraulic |
|
Weight(kg) |
1650 |
3650 |
4250 |
5050 |
6300 |
