Dongguang golden sincerty machinery manufacturing Co., Ltd. is located in Nanxiakou town, dongguang county, cangzhou city, hebei province.Our factory covers an area of one hundred thousand square meters with modem workshops and high standard manufacturing machines. Our company has attained ISO9001 quality system certification and is granted as "Famous and Excellent Enterprise" by Quality Technology Supervision Bureau of Hebei Province.My company is specialized enterprise for producing plastic packing machinery .It gathers the research and development ,production ,sales and after-sale service together.The major business is:Series of bottle blowing machinery,such as semi-automatic plastic bottle blowing machine and full-automatic plastic bottle blowing machine,PET blow molding machine.Our machineries suitable to produce 5ML-500L hollow plastic products by materials such as: PE、PP、PVC etc.So we have the ability to comply with all your requirement for plastic products. We really appreciate our honorable clients' support to our development.Thanks to their trusts to our company.
- Product Details
- {{item.text}}
Quick Details
-
Year:
-
2020
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000*2000*2500mm
-
Hollow part volume:
-
15L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
55 mm
-
Screw Heating Power(kW):
-
12 kW
-
Extruder Motor Power(kW):
-
11 kW
-
Mold Platen Size(Width)(mm):
-
500 mm
-
Mold Platen Size(Height)(mm):
-
500 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
0.8 m³/min
-
Die Head Heating Power(kW):
-
15 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
30
-
Weight (T):
-
3.4
-
After-sales Service Provided:
-
Online Support
-
Name:
-
Water Bottle Blowing Machine
-
Material:
-
PP PE HDPE
-
Station:
-
Doule Station
-
Machine:
-
Blowing Machine
-
Suitable bottle:
-
Oil Bottle
-
Marketing Type:
-
New Product 2020
-
sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Online support
-
Certification:
-
CE, IS09001
Quick Details
-
Clamping Force (kN):
-
50
-
Output (kg/h):
-
100 kg/h
-
Place of Origin:
-
China
-
Year:
-
2020
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000*2000*2500mm
-
Hollow part volume:
-
15L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
55 mm
-
Screw Heating Power(kW):
-
12 kW
-
Extruder Motor Power(kW):
-
11 kW
-
Mold Platen Size(Width)(mm):
-
500 mm
-
Mold Platen Size(Height)(mm):
-
500 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
0.8 m³/min
-
Die Head Heating Power(kW):
-
15 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
30
-
Weight (T):
-
3.4
-
After-sales Service Provided:
-
Online Support
-
Name:
-
Water Bottle Blowing Machine
-
Material:
-
PP PE HDPE
-
Station:
-
Doule Station
-
Machine:
-
Blowing Machine
-
Suitable bottle:
-
Oil Bottle
-
Marketing Type:
-
New Product 2020
-
sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Online support
-
Certification:
-
CE, IS09001
Item Description
Our Customers
Product Description

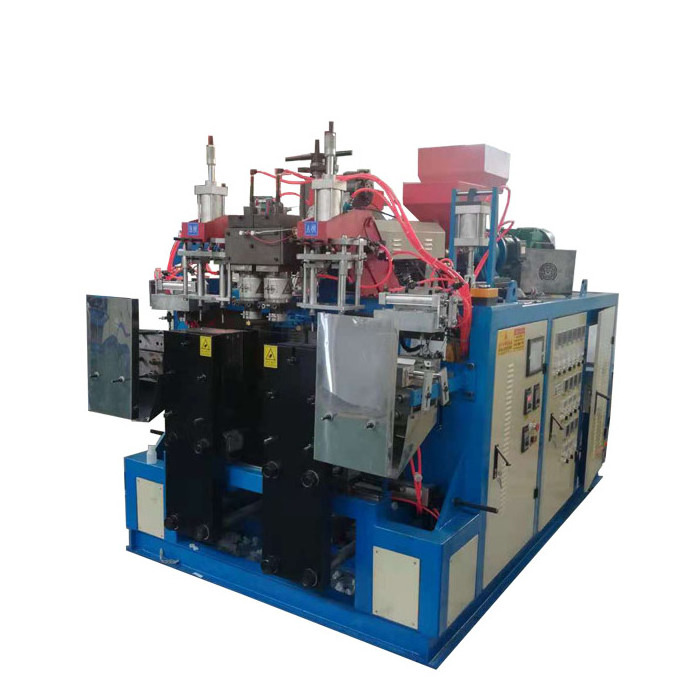

XL1-10 Hydraulic blow molding machine
This is our basic series machine.lt is double station.This machine is mainly suitable for PP, PE material plastic products,lt could blow max.10 liter plastic bottle, juice bottle,chemical bottle,engine oil pot,detergent bottle,sauce bottle,urea barrels etc. Optional function: double layer, three layer, liquid view line, wall thickness controller, inner label, hydraulic pressure, 1-6 mold cavity number. If you have other special requirements, we can provide customized services for you.
Product Details
|
Model
|
XL-2.5L
|
XL-5L
|
XL-10L
|
||
|
Bottle Volume
|
2.5
|
5
|
10
|
||
|
Screw Diameter
|
55
|
65
|
80
|
||
|
Screw L/D Ration
|
25:1
|
|
|
||
|
Motor Power
|
7.5
|
11
|
15
|
||
|
Hydraulic Motor Power
|
3
|
|
5.5
|
||
|
Heating Power
|
15
|
15
|
25
|
||
|
Max. Plastic Capacity
|
35
|
50
|
70
|
||
|
Heating Section NO.
|
6
|
7
|
8
|
||
|
Applicable Raw Material
|
PE/PP
|
|
|
||
|
Way of Control
|
PLC Control
|
|
|
||
|
Speed Regulating Method
|
Frequency Control of Motor Speed
|
|
|
||
Recommend Products
Curved arm type blow molding machine
This machine is mainly suitable for PP, PE material plastic products,lt could blow 1-10 liter plastic bottle,juice bottle,chemical bottle,engine oil
pot
,detergent bottle,sauce bottle,urea barrels etc.Optional function: double layer, three layer, liquid view line, wall thickness controller, inner label, hydraulic pressure, 1-6 mold cavity number.
Center straight top blowing molding machine
This machine is mainly suitable for PP, PE material plastic products,lt could blow 1-10 liter
plastic
bottle,juice
bottle,chemical bottle,engine oil pot,detergent bottle,sauce bottle,urea barrels etc.Optional function: double layer, three layer,liquid view line, wall thickness controller, inner label, hydraulic pressure, 1-6 mold cavity number.
bottle,chemical bottle,engine oil pot,detergent bottle,sauce bottle,urea barrels etc.Optional function: double layer, three layer,liquid view line, wall thickness controller, inner label, hydraulic pressure, 1-6 mold cavity number.
Center straight top blowing molding machine
This machine is mainly suitable for PP, PE material plastic products,lt could blow 1-10 liter
plastic
bottle,juice
bottle,chemical bottle,engine oil pot,detergent bottle,sauce bottle,urea barrels etc.Optional function: double layer, three layer,liquid view line, wall thickness controller, inner label, hydraulic pressure, 1-6 mold cavity number.
bottle,chemical bottle,engine oil pot,detergent bottle,sauce bottle,urea barrels etc.Optional function: double layer, three layer,liquid view line, wall thickness controller, inner label, hydraulic pressure, 1-6 mold cavity number.
Company Information
DONG GUANG GOLDEN SINCERTY MACHINERY MANUFACTURING CO.,LTD
ENTERPRISE CULTURE:
Seek development bu S&T,seek survival by quality : Credible cooperation make progress together; Xianglong Machinery has been keeping good cooperative ralations with customers since its foundation.Customers' satisfation is our max.persuit.ln the increasing hard market competition,only by keeping regarding customers' max.interest as our own task can we increase our comprehensive competitive capability. Sharing weal and woe, we sincerely thank above brands for their trust and support to our co.
Shipping Packing
Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, XIANGLONG is a Professional Blow Molding Machine Manufacture Company which we will try our best to satisfy the kinds of demand of customers.
FAQ
Q1:
Are you a trading company or a manufactory?
A1: We are a manufactory, and we also own import and export license.
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality after-service.
Also we have one year warranty of the spare parts, free of charge. And customised is available.
Q3: How can I install my machine when it arrives?
A3: We will send our engineer to your side as soon as you get all your machines ready , for testing and guiding your technicians how to run the machines.
For Extrusion Blow Molding Machine
Q1: Are you a trading company or a manufacturer?
A1: We own a factory ourselves, and we can assure the quality we manufactured.
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.
Q3: How can I install my machine when it arrives?
A3: We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
Q4: What after-sales service your company offers?
1, Your inquiry related to our product & price will be replied within 72 hours.2, Well-trained & experienced staff are to answer all your inquiries in English and Chinese.3, Working time: 8:00am ~6:30pm, Monday to Saturday.4, Your business relationship with us will be confidential to any third party.5, Good after-sales service offered, please get back to us if you got any questions.
Q5:Can I visit your factory and send team for learning and inspect?
A6: Yes, sure. We will do our best to teaching you how to use the machine.welcome to visit our factory!
Q6: What is our advantages?
A7: 1.Competitive price
2. Excellent technical support
3.Best service
Q7: Where is your factory located? How can we visit there?
A8: Our factory is located in Cangzhou City, Hebei Province, China.
