Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YongJin
-
Dimension(L*W*H):
-
1.5m*0.98m*2.1m, 1.5*0.98*2.1m
-
Weight:
-
400 KG
-
Power:
-
1.1KW
-
Commodity name:
-
Shuttleless webbing loom
-
Model Number:
-
YJ-V8/27
-
Place of origin:
-
GuangZhou, China
-
Export Markets:
-
Southeast Asia, the Middle East, Europe and America
Quick Details
-
Type:
-
Shuttleless Loom
-
Production Capacity:
-
Maximum machine speed:1700, 300sets / month
-
Application:
-
For Narrow Fabric, It can be used To produce jacquard elastic and non-elastic webbing
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YongJin
-
Dimension(L*W*H):
-
1.5m*0.98m*2.1m, 1.5*0.98*2.1m
-
Weight:
-
400 KG
-
Power:
-
1.1KW
-
Commodity name:
-
Shuttleless webbing loom
-
Model Number:
-
YJ-V8/27
-
Place of origin:
-
GuangZhou, China
-
Export Markets:
-
Southeast Asia, the Middle East, Europe and America
Narrow Fabric nylon woven weaving machine,woven label making machine muller
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

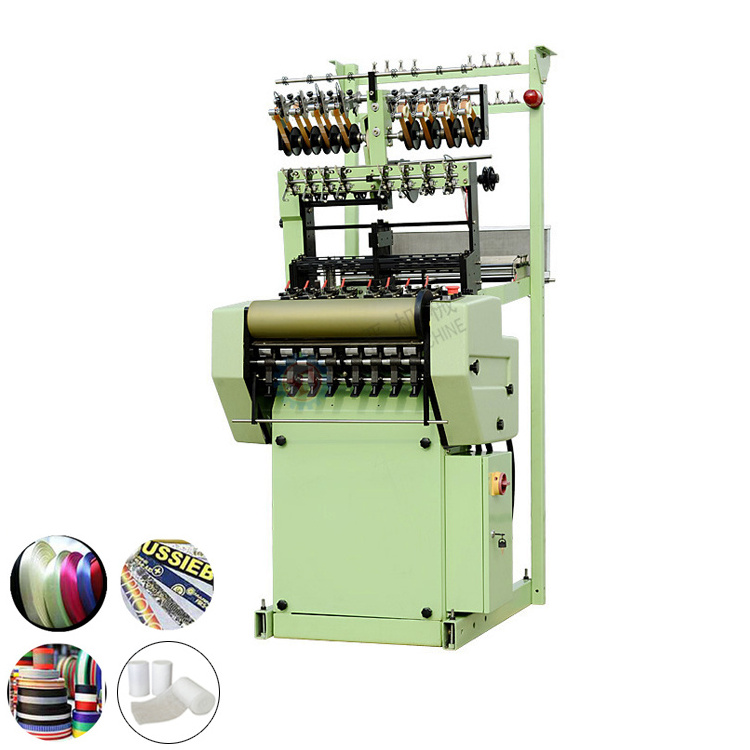

This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
| Model | 2/110 | 4/65 | 6/50 | 8/30 | 12/15 | 8/30-2 | 12/18-2 |
| Length of frame | 550MM | ||||||
|
Number of tapes |
2 | 4 | 6 | 8 | 12 | 16 | 24 |
| Width of reed | 110 | 65 | 50 | 30 | 15 | 30 | 18 |
| Maximum of tapes | 100 | 63 | 48 | 28 | 13 | 28 | 16 |
| Number of frame | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Power/Voltage | 1.1KW/380V | ||||||
| Circulation | 1:8/16-48 | ||||||
| Speed | 800-1500rpm | ||||||
