Quality Analyzer Portable Octane Cetane Number Analyzer of Fuel

Quality Analyzer Portable Octane Cetane Number Analyzer of Fuel

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Gold

Model Number:: GDSX-200

Product name:: Portable Octane Cetane Number Analyzer of Fuel

Working environment:: Temperature rang: 10℃~35℃

Test range:: Gasoline for motor vehicles Raw material: light gasoline:50.0~80.0/MON

Relative humidity:: <85%

Minimum scale:: 0.1/RON 0.1/MON

Response time:: 1s

Test result:: LCD display, it can store and print(External printer)

Dimension:: 210*100*40 mm

Power supply:: AC 220V 50Hz

Quick Details

Warranty:: 1 Year, 1 year

Power:: Electronic

Place of Origin:: Chongqing, China

Brand Name:: Gold

Model Number:: GDSX-200

Product name:: Portable Octane Cetane Number Analyzer of Fuel

Working environment:: Temperature rang: 10℃~35℃

Test range:: Gasoline for motor vehicles Raw material: light gasoline:50.0~80.0/MON

Relative humidity:: <85%

Minimum scale:: 0.1/RON 0.1/MON

Response time:: 1s

Test result:: LCD display, it can store and print(External printer)

Dimension:: 210*100*40 mm

Power supply:: AC 220V 50Hz

Products Description

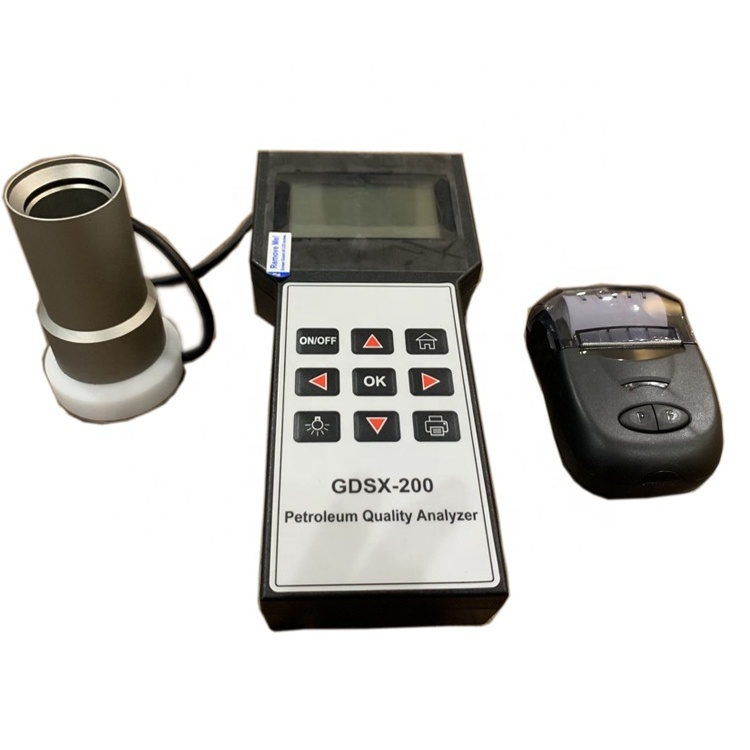

Quality Analyzer Portable Octane Cetane Number Analyzer of Fuel

Brief Introduction of Cetane and Octane number:
Cetane number (diesel fuel) and octane number (gasoline) both measure the tendency of the fuel to ignite spontaneously.
The cetane number refers to the eace with which desel fuel ignites easily at a relatively low temperature.
Octane number, measure of the ability of a fuel to resist knocking when ignited in a mixture with air in the cylinder of an internal-combustion engine.

Summary:
Our portable octane and cetane number analyzer is our company's new product.
portable octane and cetane number analyzer is suitable to determine the octane number and cetane number of aviation gasoline gasoline for motor vehicles,blended gasoline,ethanol gasoline,Methanol gasoline,automobile diesel fuels.

I. Main technical features:
1.It adopts high precision test sensor, comprehensive analysis of large data,advanced calculation methods
2.Gasoline octane number test: A test can display research octane number, motor octane number and antiknock index at the same time. Diesel fuels test can display the cetane number,to input standard density and mid-boiling point can get cetane index, to derive the correct the cetane number automatically.
3.The sensor signal adopts digital transmission technology, powerful anti-jamming performance, small variation, high precision, good reproducibility and repeatability.
4.It needs less test oil, every test only needs 150 ml samples; The test time is short, every test time is in 1 min.

II. Main technical specifications
1. Working environment:
Temperature rang: 10℃~35℃
Relative humidity: <85%

2.Test range:
(1)Gasoline for motor vehicles:
National standard: 70.0~110.0/RON blended gasoline: 75.0~110.0/RON
Ethanol: E93: 92.0~95.0/RON Isomerized gasoline: 87.0~108.0/RON
Methanol: M93 85~100/RON M97 92~110/RON
Methanol content:(M5~M25%) E97: 95.0~99.0/RON
(2)Raw material: light gasoline:50.0~80.0/MON Arene gasoline:95.0~120.0/RON
(3)Aviation gasoline: 85.0~105.0/MON
(4)Diesel fuel: 25~75/CN(cetane number); 20~80/CI(cetane index)

3.Accuracy:
Aviation gasoline: ≤± 1.5/MON
Gasoline for motor vehicles: ≤±1.5/RON ≤± 1.5/MON
Automobile diesel fuels: ≤±2.6/CN ≤±2.6/CI
Regression sample retest: ≤±0.5/RON: ≤±0.5/MON
Regression sample measurement: ≤±1.5/RON ≤± 1.5/MON
Calibration accuracy: ≤±0.2/RON

4.Precision (confidence level 95%)
Reproducibility: ≤±0.5/RON Repeatability: ≤±0.2/RON
5.Minimum scale: 0.1/RON 0.1/MON
6.Response time: 1s
7.Test result: LCD display, it can store and print(External printer)
8.Dimension: 210×100×40 mm
9.Power supply: Charger:AC220V±10V/4.2V;One charge can be used about a week.
10. Instrument with 16 keys board(At bottom from left port to right port as printer,charger,sensor)
