Continuous QH69 Bead Blast Machine Vertical Steel Plate Metal Cleaning Shot Blasting Machine

Continuous QH69 Bead Blast Machine Vertical Steel Plate Metal Cleaning Shot Blasting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $15000

≥3 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: Min78 kw and customized

Dimension(L*W*H):: Customized accordingly

Blast cleaning speed:: 0.5-4m/min

surface finish speed:: SA2.5-SA3.0

Blast wheel::: 4 sets or customise

Blast chamber:: 10mm shell &10mm Mn Alloy liner

Dust collector:: Cartridge/Bag type filter pulse reverse

Operate:: Fully Automatic Continuous blasting cleaning

Voltage:: customized according local request

Advantages:: 1.Various for plate,beam,pipe,sheet 2.Fully Automatic

PLC system:: Siemens, Omron or famous brand in china

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Hezhi

Weight (KG):: 5000 KG

Power:: Min78 kw and customized

Dimension(L*W*H):: Customized accordingly

Blast cleaning speed:: 0.5-4m/min

surface finish speed:: SA2.5-SA3.0

Blast wheel::: 4 sets or customise

Blast chamber:: 10mm shell &10mm Mn Alloy liner

Dust collector:: Cartridge/Bag type filter pulse reverse

Operate:: Fully Automatic Continuous blasting cleaning

Voltage:: customized according local request

Advantages:: 1.Various for plate,beam,pipe,sheet 2.Fully Automatic

PLC system:: Siemens, Omron or famous brand in china

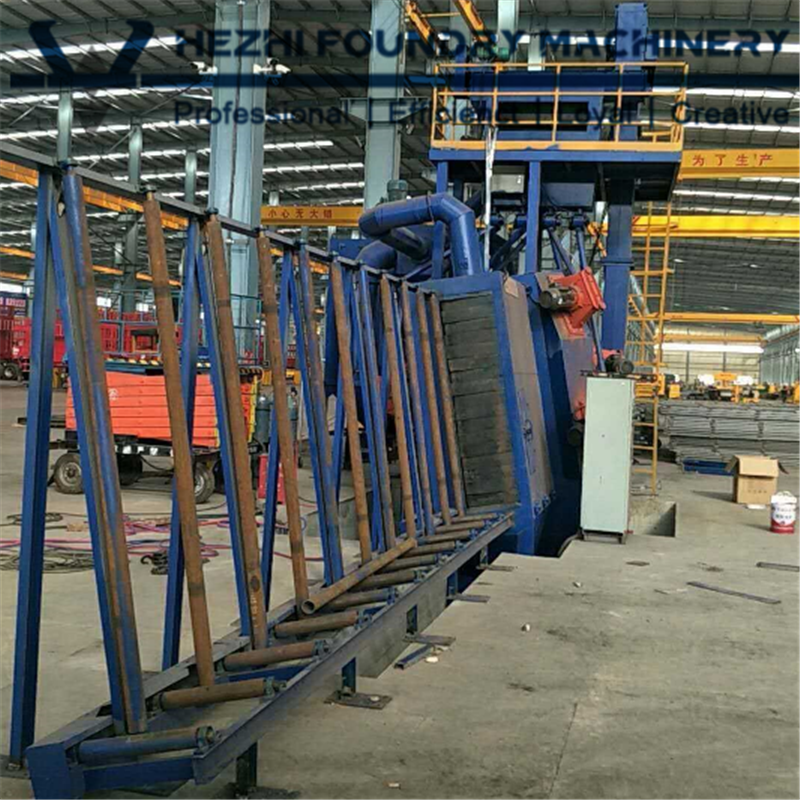

Vertical Steel Plate Shot Blast Machine is special blast cleaning equipment for Steel Plate & sheet.

Roller conveyors are made of three parts, feeding rollers, middle rollers and out-feeding rollers. Feeding rollers deliver work pieces to middle rollers in blasting chamber where work pieces will be blasted by blasting wheels mounted on the blasting chamber walls.Out-feeding rollers deliver blasted and finished work pieces out of blasting chamber for unloading.

Feeding rollers and out-feeding rollers are driven by variable speed reducers. Roller speed can be adjustable according to work pieces surface condition and metal surface finish level.

Vertical Steel plate & sheet Shot Blast Machine is heavy duty and versatile wheel blast cleaning equipment.
Work pieces include steel plate, sheets and strips, H beams, I beams, square tubes, tubes and pipes, bars and rebars.

Model	QH698	QH6912	QH6915	QH6920	QH6930	Q6940
Height	800mm	1200mm	1500mm	2000mm	3000mm	4000mm
Max width	300mm	400mm	500mm	500mm	500mm	500mm
Speed	0.5-4m/min	0.5-4m/min	0.5-4m/min	0.5-4m/min	0.5-4m/min	0.5-4m/min
Wheels	4 PCS	4 PCS	4 PCS	6 PCS	6 PCS	8 PCS
Capacity	4x125kg/s	4 x125kg/s	4 x125kg/s	6 x125kg/s	6 x125kg/s	8 x125kg/s
Air volume	17560 m3/min	19000 m3/min	19550 m3/min	27758 m3/min	28050 m3/min	38000 m3/min
Power	78kw	113kw	156kw	224kw	204kw	293kw
Dimension (mm)	12180x4250x7095	15200x5370x6797	30650x6850x9095	31200x6850x9095	44020x6385x7758	4500x7830x11117

We can design and manufacture all kinds of non-standard shot blasting machines

According to customers' different detail requirements for work piece ,weight and productivity .

Roller Conveyor System

Composition: feeding rollers, middle rollers, out-feeding rollers.

Loading Capacity: 2 tons per meter.

Rollers Distance: 1 m.

Rollers Speed: 0.5-4 m per min.

Roller Material: Steel

Drive: variable speed reducer.

Blasting Chambers

Composition: main blasting chamber, 2 auxiliary blasting chambers.

Auxiliary Blasting Chamber: Four layers rubber curtains .

Main Blasting Chamber: All the blasting wheels shot from different angles,protected by Mn alloy liners.

Divided &Modular Chamber: Designed according to shipping container's space

Abrasive Recycling System

Longitude Screw: to collect used steel shots and grits at the bottom of blasting chamber.

Horizontal Screw : to deliver collected shots and grits from longitude screw to bucket elevator.

Bucket elevator: to lift used steel shots and grits from bottom to top separator.

Separator: to separating qualified shots and grits out to abrasive hopper

Dust Collection System

Filtration Rate: 99.9%, dustless shot blasting machine,for health enviroment.

Cyclone Dust Collector: First sate dust collection.

Dust Collector: Cartridge or bag type are second stage dust collection.

Fan Extractor: To extract dusts from piping to dust collector.

Ventilation Piping : To collect dusts from blasting chambers and separators.

Electric Control System

Model: Automatic ( manual type is available).

Control Unit: P LC is optional.

P L C : Siemens, Omron or famous reliable brand in China for your choice.

Emergency Stop: On main control panel and rollers conveyors.

Power Indicator: Available on control panel.

Qingdao Hezhi is a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
We owned 3600m2 work shop area for production with 2x10 cranes.
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.

Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.

Choose Hezhi,Get factory price and reliable Machinery!

Q: What is basting speed of beam & profile shot blasting machine ?
A: 0.5-1.5 m per minutes.

Q: What is max weight of rollers of beam & profile shot blasting machine ?
A :2 tons per 1 meter.

Q: What kind of abrasives are used for beam & profile shot blasting machine ?
A:Steel shots, steel grits or steel cut wire.

Q: Is it necessary to dig pit for installation of beam & profile shot blasting machine ?

A: It depends on the rollers height and work piece size.

Q: How to clean small work pieces shorter than 1 meter ?
A: To make tooling on roller.

Q: How many operators are needed to run rotary drum shot blasting machine ?
A: 1 operator.
