Quick Details
-
Brand Name:
-
Hengxin/OEM/ODM
-
Model Number:
-
HX-4BP+2E
-
Place of Origin:
-
Guangdong, China
-
Total power:
-
65w(power built in)
-
Output power:
-
15.4W
-
Power supply standard:
-
IEEE802.3AF/AT
-
Input voltage:
-
AC110-220V
-
Transmission wire core:
-
1/2(+),3/6(-)
-
Transmission distance:
-
100 meter / 250 meter (setup)
-
Transmission medium:
-
Class 5 and above unshielded twisted-pair wire
-
Pass-through mode:
-
Store forward
-
Working temperature:
-
-10°C~60°C
-
Appearance material:
-
metal
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.8G
-
Brand Name:
-
Hengxin/OEM/ODM
-
Model Number:
-
HX-4BP+2E
-
Place of Origin:
-
Guangdong, China
-
Total power:
-
65w(power built in)
-
Output power:
-
15.4W
-
Power supply standard:
-
IEEE802.3AF/AT
-
Input voltage:
-
AC110-220V
-
Transmission wire core:
-
1/2(+),3/6(-)
-
Transmission distance:
-
100 meter / 250 meter (setup)
-
Transmission medium:
-
Class 5 and above unshielded twisted-pair wire
-
Pass-through mode:
-
Store forward
-
Working temperature:
-
-10°C~60°C
-
Appearance material:
-
metal
Product details
|
Product Parameters
|
|
|
||
|
Product name
|

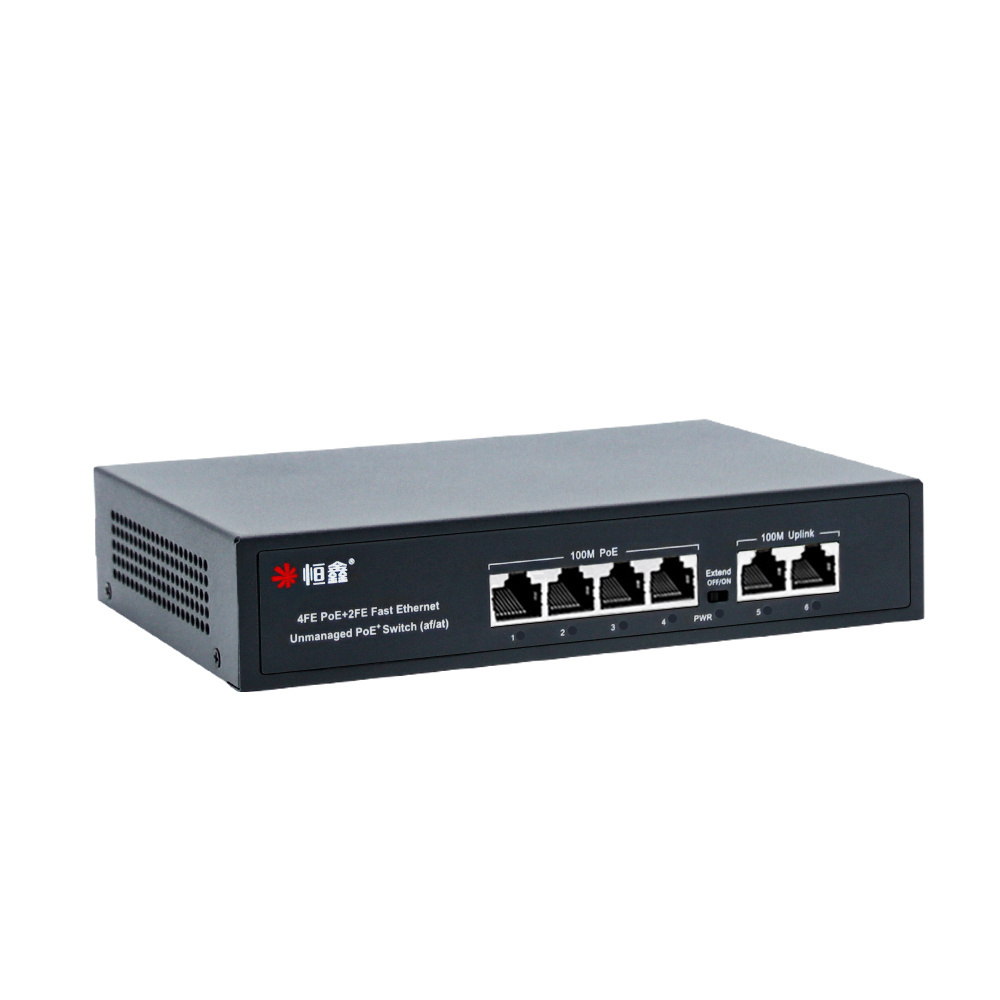

100M 4+2-port POE switch
|
1000M 4+2+1 port POE switch
|
||
|
Product specifications
|
4*100M POE port+2 * 100M Uplink port
|
4*1000 POE port+2*1000 uplink port+1*1000 SFP light port
|
||
|
Total power
|
65w (power built in)
|
|
||
|
Output power
|
15.4W
|
|
||
|
Power supply standard
|
IEEE802.3AF/AT
|
|
||
|
Input voltage
|
AC110-220V
|
|
||
|
Transmission wire core
|
1/2(+),3/6(-)
|
|
||
|
Network standards
|
IEEE 802.3、IEEE 802.3U、IEEE 802.3X、IEEE 802.3AF、IEEE 802.3AT
|
|
||
|
Transmission speed
|
6 port10/100Mbp(sself-adaption)
|
7 port 10/100/1000Mbp(sself-adaption)
|
||
|
Transmission distance
|
100 meter/250 meter(setup)
|
|
||
|
Transmission medium
|
Class 5 and above unshielded twisted-pair wire
|
|
||
|
Pass-through mode
|
Store forward
|
|
||
|
Port flip
|
Auto MDI/MDIX
|
|
||
|
Port function
|
power suppx oriorty mechanism, ast and ferwarding,MAC automatic learning and aging
|
|
||
|
Flow control mode
|
IEEE802.3X Full-duplex flow control and BACK PRESSURE half-duplex flow control
|
|
||
|
Pilot lamp
|
Power supplyindicator lamp,LINK/ACTindicator lamp
|
|
||
|
Working temperature
|
-10°C~60°C
|
|
||
|
Appearance material
|
metal
|
|
||
|
Outline dimension material
|
19*12.5*3.8 cm
|
|
||
|
Product weight
|
0.80KG(roduct weight)
|
|
||
