Quick Details
-
Color::
-
black
-
Diameter:
-
60mm
-
Rate:
-
90:1
-
drive mechanism:
-
worm gear
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
WM
-
Model Number:
-
WMD60-45H
-
Color::
-
black
-
Diameter:
-
60mm
-
Rate:
-
90:1
-
drive mechanism:
-
worm gear

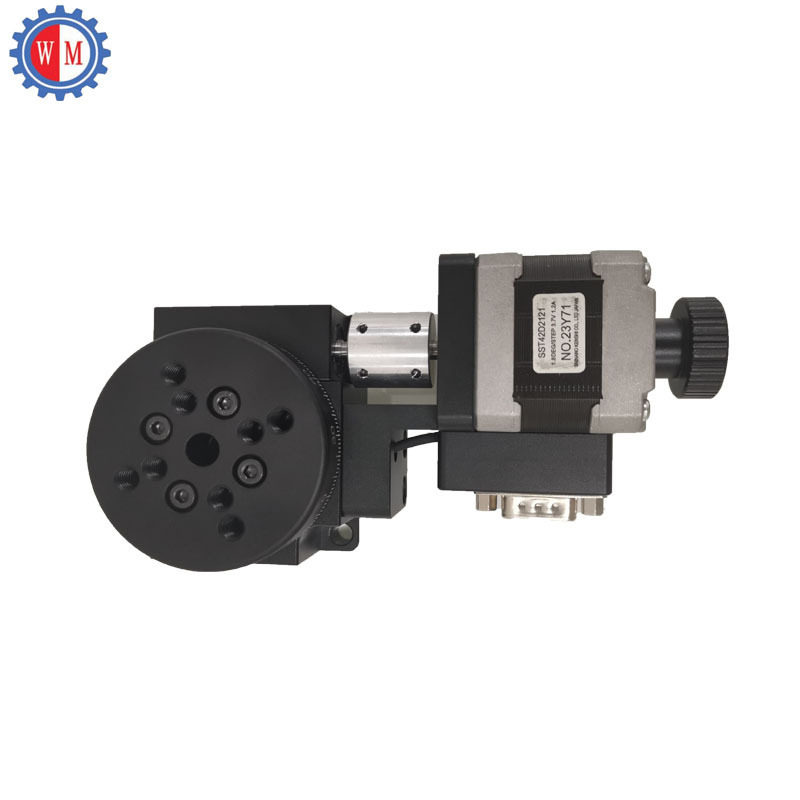

1.Small rotary positioner with different motors alternatives;
2. Standard Models d riven by stepping motor, angle automatically adjusted and controlled;
3. Both manual hand wheel and power hand wheel available;
4. All- in- one, high stability;
5. Provides precision 360 degrees continous rotation;
6. Mounting modification avalibale on request.
|
Structure Specifications
|
|
|
|
|||
|
Model
|
|
WMD60-45H
|
|
|||
|
Diameter of Moving Platform
|
|
Φ60mm
|
|
|||
|
Angular range
|
|
360° deg
|
|
|||
|
Drive Mechanism
|
|
Worm gear
|
|
|||
|
Worm Gear Reduction Rate
|
|
90:1
|
|
|||
|
Drive Motor
|
|
42 stepped Motor(1.8°)
|
|
|||
|
Step Angle
|
|
1.8°
|
|
|||
|
Max Speed
|
|
30°/S
|
|
|||
|
Center Clear aperture
|
|
Φ8mm
|
|
|||
|
Net weight
|
|
0.8kg
|
|
|||
|
Load Capacity(Centrally Placed)
|
|
|
|
|||
|
Horizontal
|
|
10kg
|
|
|||
|
Vertical
|
|
5kg
|
|
|||
|
Material & Environment Conditions
|
|
|
|
|||
|
Housing Material
|
|
Aluminum
|
|
|||
|
Housing Coating( Finish)
|
|
Black Anodizing
|
|
|||
|
Accurary Specification
|
|
|
|
|||
|
Resolution
|
|
0.02°
|
|
|||
|
Repeated Positioning Accurary
|
|
±0.01°
|
|
|||
|
Absolute on- Axis Accurary
|
|
±0.015°
|
|
|||
|
Scale Division of the moving plate
|
|
Graduated in 3° (standard model )/2° or 1° is available
|
|
|||
|
Backlash
|
|
0.002°
|
|
|||
|
Run-out of Top Plate
|
|
15um
|
|
|||
|
Parallelization
|
|
30um
|
|
|||
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 2 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample to test, but you need pay the sample fee and freight cost.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 50% T/T in advance ,balance before shippment.
