Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1760mm*1100mm*1295mm
-
Machine Weight:
-
520 kg
-
Bucket capacity:
-
0.15m3, 0.15 m³
-
Marketing Type:
-
Hot Products 2022
-
machine name:
-
Mini Skid Steer Loader with CE EPA
-
Operating Weight:
-
830 Kg
-
Operating Load:
-
200kg
-
Lifting Capacity KG:
-
380kg
-
Hydraulic oil tank capacity(L):
-
40
-
Drive:
-
Skid steering
-
Overall Dimensions(MM):
-
1525*1050*1258
-
Braking System:
-
Hydraulic enclosed brake
-
optional Engine:
-
HONDA HGX690 \Briggs Stratton 3864 \Rato R740
Quick Details
-
Engine Brand:
-
B&S or Kubota or Kohler
-
Power:
-
23HP, 25HP
-
Brand Name:
-
MINGKO
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1760mm*1100mm*1295mm
-
Machine Weight:
-
520 kg
-
Bucket capacity:
-
0.15m3, 0.15 m³
-
Marketing Type:
-
Hot Products 2022
-
machine name:
-
Mini Skid Steer Loader with CE EPA
-
Operating Weight:
-
830 Kg
-
Operating Load:
-
200kg
-
Lifting Capacity KG:
-
380kg
-
Hydraulic oil tank capacity(L):
-
40
-
Drive:
-
Skid steering
-
Overall Dimensions(MM):
-
1525*1050*1258
-
Braking System:
-
Hydraulic enclosed brake
-
optional Engine:
-
HONDA HGX690 \Briggs Stratton 3864 \Rato R740
Product Description

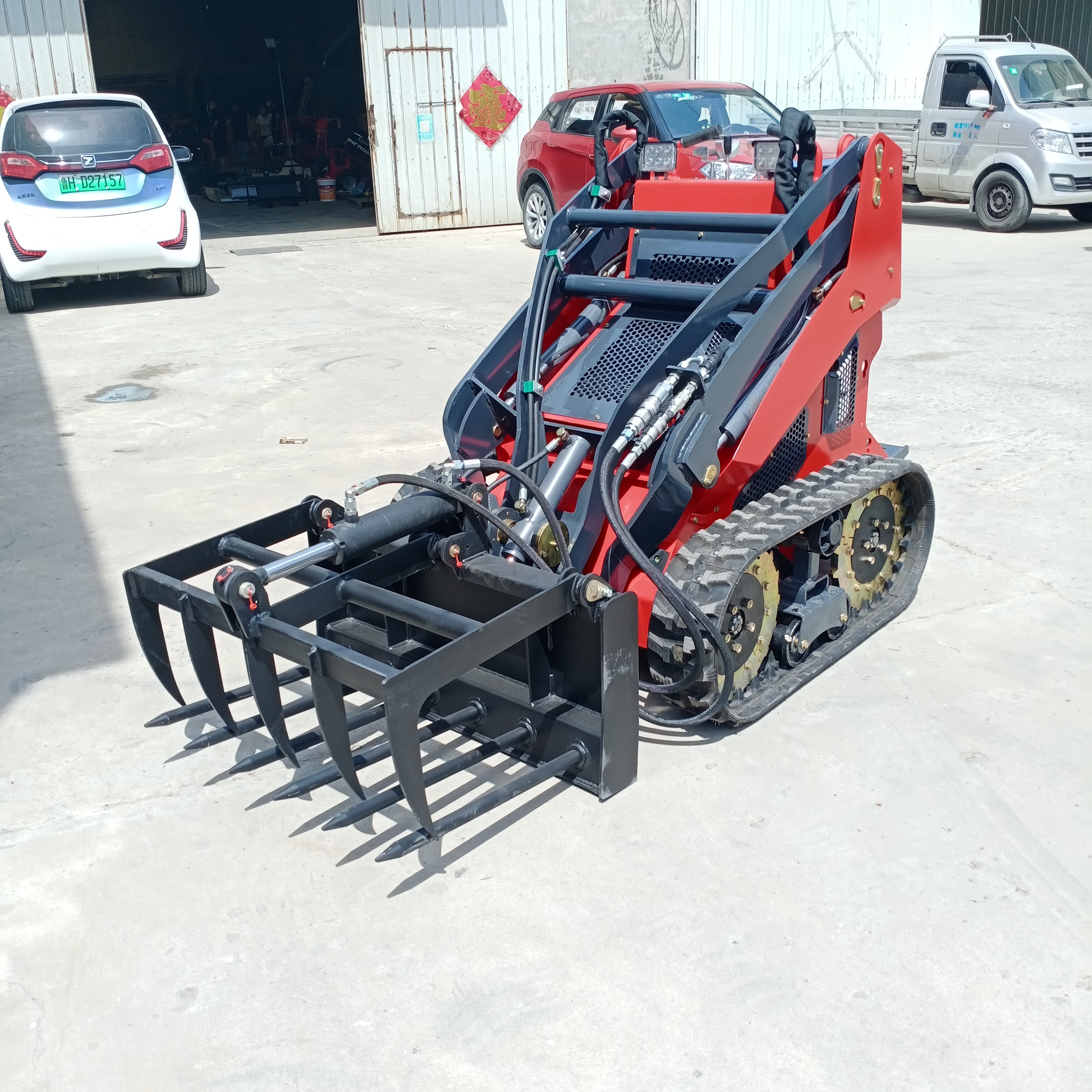

Multifunction Mini Skid Steer Loader Mini Skid Steer Loaders Skid Steer Like Dingo
Hydraulic Skid Steer Loader with HONDA Engine 25HP Compact and Smart Skid Steer Loader Can Enter Elevators
Specification
|
Engine Model HONDA GX630
|
Rated Power（KW）
|
15.27(21HP)
|
|
|
|
Rotating speed（rpm）
|
3600
|
|
|
|
noise (Db)
|
less95
|
|
|
Maximum flow of the pump
|
|
39.6-39.6L/min
|
|
|
Performance parameters
|
Rated Load
|
200kg
|
|
|
|
Tipping load
|
245kg
|
|
|
|
Bucket Capacity
|
0.1 m3
|
|
|
|
Max heavily lift
|
260kg
|
|
|
|
Max.Travel Speed
|
0~6 km./h
|
|
|
|
Operating Weight
|
760kg
|
|
|
Tire model
|
Solid tyres
|
16*6-8
|
|
|
|
Ordinary tire
|
4.0-8
|
|
|
overall length(including bucket)
|
|
1900
|
|
|
overall length(including bucket and pedal opening)
|
|
2100
|
|
|
Fuel tank capacity
|
|
26L
|
|
|
Oil tank capacity
|
|
19 L
|
|
|
Engine displacement
|
|
688 ml
|
|
|
Bucket breakout force
|
|
410Kg
|
|
|
packing measurement (truck)
|
|
1600*750*1300
|
|
Packing & Delivery
Find a dealer:
Please contact us to find a local dealer for doing good service for you or you can start now build the dealership with MINGKO skid steer loader .
Different Engine for optional
Depending on your country requested. EPA or No need EPA
Euro IV or no need Euro IV /V ?
For optional 25HP EPA models/ 30HP Euro V models / 35hp 4 cylinder diesel models.
Specification will be little different depending on engine brand differ.
EPA model 25hp specification:
COntrol Penal
.
