Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
agricultural equipment
-
field:
-
mushrooms cultivation
-
cooling mode:
-
water coolong / air cooling
-
Port:
-
Shanghai / Ningbo
-
cooling capacity:
-
13KW
-
Function:
-
both heating and cooling
-
Compressor:
-
Copeland
-
Used for:
-
Button mushroom,king oyster mushroom,golden needle mushroom growing
-
Certification:
-
ce iso9001
Quick Details
-
Weight (KG):
-
68
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KF
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
agricultural equipment
-
field:
-
mushrooms cultivation
-
cooling mode:
-
water coolong / air cooling
-
Port:
-
Shanghai / Ningbo
-
cooling capacity:
-
13KW
-
Function:
-
both heating and cooling
-
Compressor:
-
Copeland
-
Used for:
-
Button mushroom,king oyster mushroom,golden needle mushroom growing
-
Certification:
-
ce iso9001
Product Description

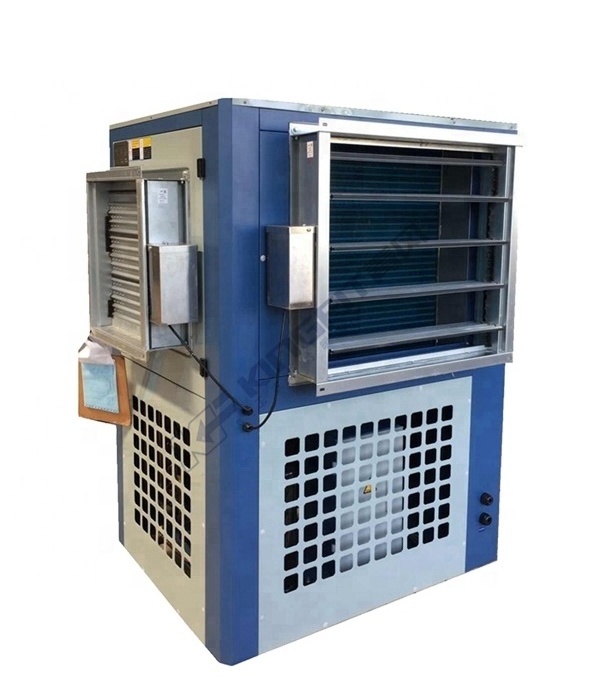

Individual Type Mushroom Climate Control Machine for Mushroom Farm:
1. The unit using integrated structure, the indoor unit and outdoor unit are combined into one.
2. The unit is installed outdoor and set aside air inlet hole. Power source outdoor designing to void the fire risk.
3. Cold air goes through the insulated air duct from outside into the rooms. The unit just needs to connect power source and indoor air duct then can be put into use.
4. The air bellow is made of stainless steel, which is suitable for long time in high humidity environment. The centrifugal fan and moisture-proof motor realized remote air delivery.
5. The fresh air inlet by initial effect+bag filter, effectively avoid the infection of the outside air to the mushroom rooms.
6. The unit gathered cooling, humidity, heating, CO2 control, fresh and return air mixing, exhaust and micro circulation as a
whole unit.
7. Use groundwater instead of the original electric heating method, which can save at least 30% of electricity consumption.
8. The constant underground water temperature does not require cooling tower fans to release so as to save energy.
2. The unit is installed outdoor and set aside air inlet hole. Power source outdoor designing to void the fire risk.
3. Cold air goes through the insulated air duct from outside into the rooms. The unit just needs to connect power source and indoor air duct then can be put into use.
4. The air bellow is made of stainless steel, which is suitable for long time in high humidity environment. The centrifugal fan and moisture-proof motor realized remote air delivery.
5. The fresh air inlet by initial effect+bag filter, effectively avoid the infection of the outside air to the mushroom rooms.
6. The unit gathered cooling, humidity, heating, CO2 control, fresh and return air mixing, exhaust and micro circulation as a
whole unit.
7. Use groundwater instead of the original electric heating method, which can save at least 30% of electricity consumption.
8. The constant underground water temperature does not require cooling tower fans to release so as to save energy.
Specification
|
Model
|
QSB08FC
|
QSB15FC
|
QSB30FC
|
QSB36FC
|
QSB45FC
|
QSB59FC
|
QSB72FC
|
|||||||
|
Cooling Capacity:
|
8KW
|
13KW
|
27KW
|
31KW
|
38KW
|
53KW
|
61KW
|
|||||||
|
Room temperature
|
12℃~14℃
|
|
|
|
|
|
|
|||||||
|
Input power
|
2.38KW
|
3.92KW
|
7.89KW
|
9.07KW
|
11.64KW
|
15.78KW
|
18.14KW
|
|||||||
|
Air Volume
|
2600m3/h
|
3000m3/h
|
6000m3/h
|
7200m3/h
|
8000m3/h
|
12000m3/h
|
14000m3/h
|
|||||||
|
Refrigerant: R22, R410A.
|
|
|
|
|
|
|
|
|||||||
|
Ambient temperature below:45℃
|
|
|
|
|
|
|
|
|||||||
Customer Photos
Why Choose Us
Production License No.: XK06-015-01630
Our service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Free spare parts replacement within warranty period.
* Professional after-sales department to provide technical support, all complaints should be replied within 24 hours.
* Engineers available to service machinery overseas.
Certifications:
Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.ISO9001, CE Certificate.
