Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
SUNCENTER
-
Model Number:
-
DGT60
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
none
-
Cable Length:
-
none
-
Outlet Size:
-
none
-
Power:
-
none, Pneumatic
-
motor:
-
none
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Reciprocating Pump
-
Boost Ratio:
-
60:1
-
Boost Medium:
-
natural gas
-
Material:
-
Stainless Steel
-
Feature:
-
High Flow
-
Usage:
-
natural gas
Quick Details
-
Application:
-
Automotive Industry, Commercial Buildings, Developing World Water Solutions, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Metal and Equipment Manufacturers, Mining industry, Raw Water Intake, temperature control, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
none
-
Warranty:
-
1 year
-
Brand Name:
-
SUNCENTER
-
Model Number:
-
DGT60
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
none
-
Cable Length:
-
none
-
Outlet Size:
-
none
-
Power:
-
none, Pneumatic
-
motor:
-
none
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Reciprocating Pump
-
Boost Ratio:
-
60:1
-
Boost Medium:
-
natural gas
-
Material:
-
Stainless Steel
-
Feature:
-
High Flow
-
Usage:
-
natural gas
Gas booster pump

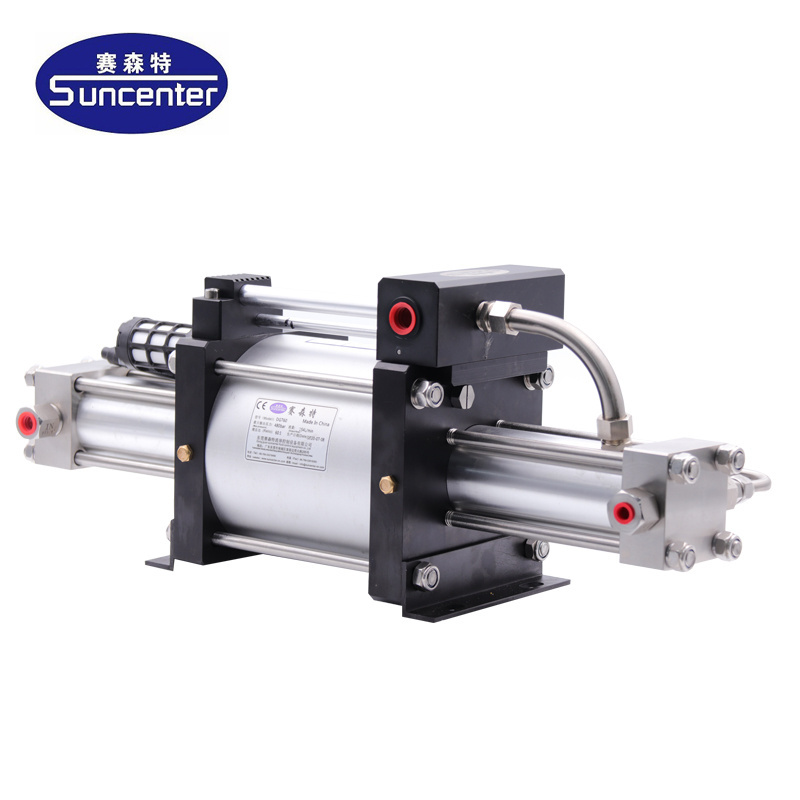

Compressed Air Driven Gas Booster Pump- DGA/DGD/DGT Series
Suncenter Air Driven Gas Boosters provide for pressures up to
80Mpa (11,600 psi)
. Used for virtually all known gases, these boosters are ideal for increasing gas pressure, transferring high pressure gas, charging cylinders and scavenging.
DGT series gas booster pumps(Double acting, double stage, single air drive head ):
DGT pumps are double acting, double stage with single air drive head pumps. They can provide for super high pressure with very low inlet pressure.
DGT pumps are available with high quality seals, which provide significantly better service life
All parts in contact with the gas are made of stainless steel.
Technical specification for DGT Series:
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
|
Model
|
Pressure boost ratio
|
Min. gas
Inlet pressure PA (bar) |
Max.gas
Inlet pressure PA (bar) |
Max. gas
outlet pressure PB (bar) |
Driven air pressure PL |
Formula to
calculate gas outlet pressure PB |
Connection:
Gas Inlet / Gas outlet (NPT thread) |
Max. flow at driven air pressure of 6bar (L/min)
|
|
DGT15
|
15:1
|
0.1
|
56
|
120
|
2-8 bar
|
15XPL
|
3/8/ 1/4
|
230(at PA of 8 bar )
|
|
DGT25
|
25:1
|
0.1
|
10
|
200
|
2-8 bar
|
25XPL
|
3/8/ 1/4
|
156(at PA of 8 bar )
|
|
DGT7/25
|
25:1
|
5
|
56
|
200
|
2-8 bar
|
25XPL
|
3/8/ 1/4
|
156(at PA of 8 bar )
|
|
DGT40
|
40:1
|
0.1
|
10
|
320
|
2-8 bar
|
40XPL
|
3/8/ 1/4
|
124(at PA of 8 bar )
|
|
DGT15/40
|
40:1
|
5
|
120
|
320
|
2-8 bar
|
40XPL
|
3/8/ 1/4
|
124(at PA of 8 bar )
|
|
DGT60
|
60:1
|
0.1
|
10
|
480
|
2-8 bar
|
60XPL
|
3/8/ 1/4
|
80(at PA of 15 bar )
|
|
DGT15/60
|
60:1
|
6
|
120
|
480
|
2-8 bar
|
60XPL
|
3/8/ 1/4
|
80(at PA of 15 bar )
|
|
DGT100
|
100:1
|
0.1
|
10
|
800
|
2-8 bar
|
100XPL
|
3/8/ 1/4
|
63(at PA of 8 bar )
|
