Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CET
-
Model Number:
-
SCCT
-
Product Name:
-
split core current transformer
-
Rated Primary Current:
-
100A
-
Rated Secondary Current:
-
5A
-
Rated Primary Current range:
-
10%In~120%In
-
Accuracy:
-
Class 0.5
-
Core Type:
-
Split-Core,Iron core
-
CT Window:
-
24 mm core
-
Working frequency:
-
20/400Hz
-
Enclosure Material:
-
ABS flame retardant plastic
Quick Details
-
Use:
-
Electronic
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CET
-
Model Number:
-
SCCT
-
Product Name:
-
split core current transformer
-
Rated Primary Current:
-
100A
-
Rated Secondary Current:
-
5A
-
Rated Primary Current range:
-
10%In~120%In
-
Accuracy:
-
Class 0.5
-
Core Type:
-
Split-Core,Iron core
-
CT Window:
-
24 mm core
-
Working frequency:
-
20/400Hz
-
Enclosure Material:
-
ABS flame retardant plastic

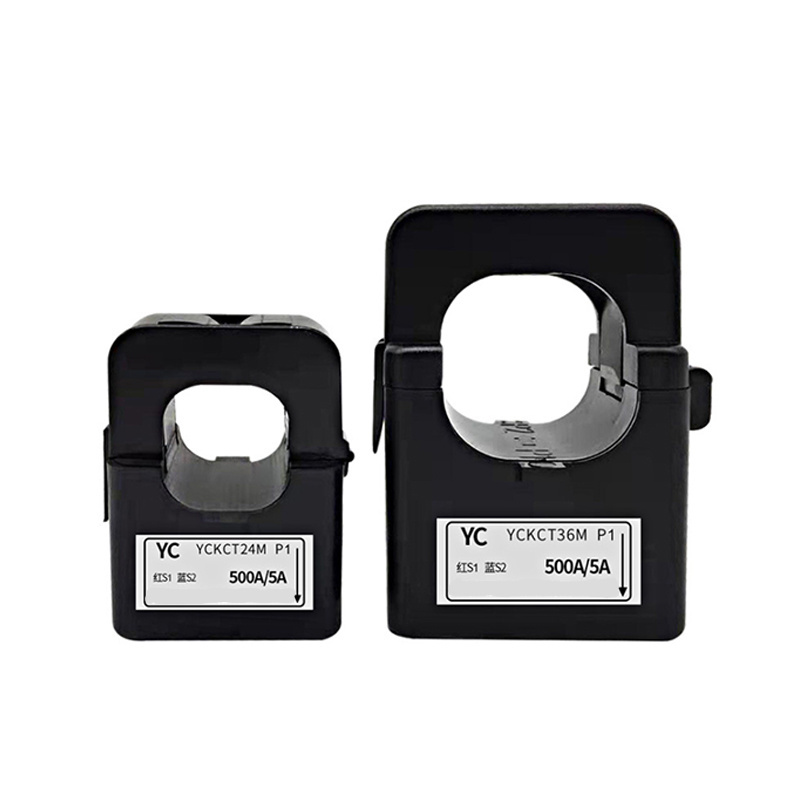

Prodduct Photos
Feature:
High precisionPure copper coil,
long service life
Stable performance, sturdy and durable
Small size, suit for circuit modification
Unique opening design, can be installed with electricity
Flame retardant material: high temperature resistance,prevent electric shock
Suitable: easily adapt to 5(6A), 2.5(5A), 3(6A) electric energy meters
Application Scene:Car charging piles, house electric meters, power grid modification
Technical Specification
|
Technical Specification
|
|
|
|
Product Name
|
Current Transformer
|
|
|
Ratio
|
100A/5A
|
|
|
Rated Primary Current (In)
|
100A
|
|
|
Rated Secondary Current
|
5A
|
|
|
Rated Primary Current range
|
10%In~120%In
|
|
|
Accuracy
|
Class 0.5
|
|
|
CT Core Window
|
Ø24mm
|
|
|
Working frequency
|
20/400Hz
|
|
|
Working voltage
|
0~1000V
|
|
|
Insulation resistance
|
DC 500V/1000MΩ
|
|
|
Enclosure Material
|
ABS flame retardant plastic
|
|
|
magnet
|
Iron core
|
|
|
Coil
|
Pure copper coil
|
|
|
Warranty
|
1 year
|
|
|
EnvironmentalConditions
|
|
|
|
Operating Temperature
|
-40°C to 85°C
|
|
|
Humidity
|
≤95%
|
|
|
Atmospheric Pressure
|
80-110kpa
|
|
|
Package Included:
|
|
|
|
1 x 5/100A Split Core Current Transformer
|
|
|
SCCT Model Selection
|
100A/5A
|
100A/5A,0.5 class,Split-Core,Ø24mm
|
|
150A/5A
|
150A/5A,0.5 class,Split-Core,Ø24mm
|
|
200A/5A
|
200A/5A,0.5 class,Split-Core,Ø24mm
|
|
250A/5A
|
250A/5A,0.5 class,Split-Core,Ø24mm
|
|
300A/5A
|
300A/5A,0.5 class,Split-Core,Ø24mm
|
|
40A/5A
|
400A/5A,0.5 class,Split-Core,Ø24mm
|
|
100A/5A
|
100A/5A,0.5 class,Split-Core,Ø36mm
|
|
150A/5A
|
150A/5A,0.5 class,Split-Core,Ø36mm
|
|
200A/5A
|
200A/5A,0.5 class,Split-Core,Ø36mm
|
|
250A/5A
|
250A/5A,0.5 class,Split-Core,Ø36mm
|
|
300A/5A
|
300A/5A,0.5 class,Split-Core,Ø36mm
|
|
400A/5A
|
400A/5A,0.5 class,Split-Core,Ø36mm
|
|
500A/5A
|
500A/5A,0.5 class,Split-Core,Ø36mm
|
|
600A/5A
|
600A/5A,0.5 class,Split-Core,Ø36mm
|
|
650A/5A
|
650A/5A,0.5 class,Split-Core,Ø36mm
|
SCCT Installation Procedure
Connect SCCT to Circuit:
* Secure CT on board and connect the CT’s secondary output to meter terminals.
* Open the hinge lock or pull apart the top part of the CT. Install the CT around the conductor to be measured.
* Verify if the CT is installed in the same current flow direction as marked on CT.
* Close the hinge lock or reattach the removable top part of the CT.
* For personnel safety and device protection. It is very important to maintain a closed circuit on the secondary winding when current is flowing through the primary circuit.
* If meter or device in the secondary circuit need to be serviced. A CT shorting block should be used to maintain a closed
circuit on CT secondary.
Disconnect SCCT from Circuit:
* Open the hinge lock or pull apart the top part of the CT.
* Remove the CT from the conductor.
* Remove the CT’s secondary wiring from meter terminals.
* Secure CT on board and connect the CT’s secondary output to meter terminals.
* Open the hinge lock or pull apart the top part of the CT. Install the CT around the conductor to be measured.
* Verify if the CT is installed in the same current flow direction as marked on CT.
* Close the hinge lock or reattach the removable top part of the CT.
* For personnel safety and device protection. It is very important to maintain a closed circuit on the secondary winding when current is flowing through the primary circuit.
* If meter or device in the secondary circuit need to be serviced. A CT shorting block should be used to maintain a closed
circuit on CT secondary.
Disconnect SCCT from Circuit:
* Open the hinge lock or pull apart the top part of the CT.
* Remove the CT from the conductor.
* Remove the CT’s secondary wiring from meter terminals.
