Quick Details
-
Brand Name:
-
JUNXELE
-
Model Number:
-
ATS
-
Rated Current:
-
40A 63A 100A -1600A
-
Material:
-
DMC \ Copper \ Silver
-
Rated current:
-
40A-1600A
-
Poles:
-
2/3/4P
-
Standard:
-
PC Grade \ CCC certification \ CE certification
-
Warranty:
-
2 years
-
Rated voltage:
-
230V/440V
-
Frequency:
-
50/60Hz
-
Color:
-
White/Black
-
Action time:
-
less 1s
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JUNXELE
-
Model Number:
-
ATS
-
Rated Current:
-
40A 63A 100A -1600A
-
Material:
-
DMC \ Copper \ Silver
-
Rated current:
-
40A-1600A
-
Poles:
-
2/3/4P
-
Standard:
-
PC Grade \ CCC certification \ CE certification
-
Warranty:
-
2 years
-
Rated voltage:
-
230V/440V
-
Frequency:
-
50/60Hz
-
Color:
-
White/Black
-
Action time:
-
less 1s
|
Current
|

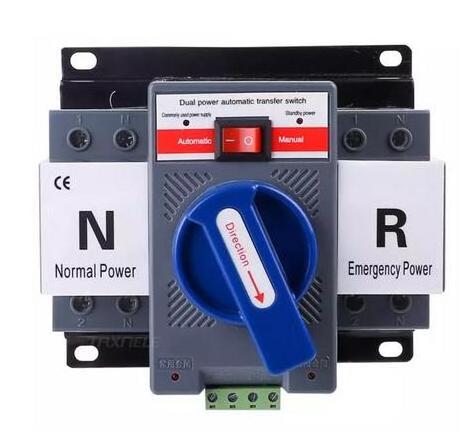

ATS 2P 63A 230V Micro Circuit Breaker mini Dual Power Automatic transfer switch Auto transfer switch(MCB)
|
20A
|
32A
|
40A
|
63A -1600A
|
||||
|
Rated insulation voltage Ui
|
690V
|
|
|
|
|
||||
|
Rated impaction withstand voltage Uimp
|
8KV
|
|
|
|
|
||||
|
Rated working voltage Ue
|
AC380V
|
|
|
|
|
||||
|
Rated working current Ie
|
16A 32A 63A 80A 100A 160A 200A 250A 315A 400A 630A 800A 1000A 1250A 1600A
|
20A
|
32A
|
40A
|
63A
|
||||
|
Load character
|
AC33iB
|
|
|
|
|
||||
|
Rated making capacity
|
10Ie
|
|
|
|
|
||||
|
Rated breaking capacity
|
8Ie
|
|
|
|
|
||||
|
Rated limting short-circuit current
|
50KA
|
|
|
|
|
||||
|
Rated short time withstand current Ie
|
7KA
|
|
|
|
|
||||
|
Change-over time
|
1S
|
|
|
|
|
||||
|
Voltage of control power supply
|
AC220V
|
|
|
|
|
||||
|
Energy consumption of the motor
|
40W
|
|
|
|
|
||||
Product Description
COD Manila spot Ats 2p 63a 230v 380v Micro Circuit Breaker Dual Power Automatic Transfer Switch Auto Transfer Switch(MCB) Product
Description Rated: voltage 220V 50/60HZ Noted: power will be interrupted when Switching. Switch time<4S Max current: 63A. 1. Dual power Automatic transfer switch can switch to Normal power or reserve power automatically. Please noted that the switch canrsquotturn on or turn off the generator. This switch Normal power first. If normal power on, the switch will switch to Normal power. If normal power off, and reserve power on, the switch will switch to reserve power.
COD Manila spot Ats 2p 63a 230v 380v Micro Circuit Breaker Dual Power Automatic Transfer Switch Auto Transfer Switch(MCB) Product
Description Rated: voltage 220V 50/60HZ Noted: power will be interrupted when Switching. Switch time<4S Max current: 63A. 1. Dual power Automatic transfer switch can switch to Normal power or reserve power automatically. Please noted that the switch canrsquotturn on or turn off the generator. This switch Normal power first. If normal power on, the switch will switch to Normal power. If normal power off, and reserve power on, the switch will switch to reserve power.
2.Wire Press the button to Automatic, the switch will switch to Normal power or reserve power automatically. Press the button to Manual, Then you have to switch the Direction
manually.
1.Application automatic transfer device. Itrsquos suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with
AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase), it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits. The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11 2.Normal conditions for operation and installation: Environmental Temperature Condition:-5~+40degC
Installation site is not more than 2000 meters above sea level. Pollution Level: Grade 3 NOTE:Please operate strictly according to
the instructions Violent use is prohibited
Installation site is not more than 2000 meters above sea level. Pollution Level: Grade 3 NOTE:Please operate strictly according to
the instructions Violent use is prohibited
