Suitable for printing on various materials such as wood, plastic, metal, glass, leather, cosmetics, gifts, or ceramic etc.Be
widely used in electronic industry, advertising, packing & printing, sports equipment, toy, stationery, gifts, industrial arts
fields etc.
Printing objects such as decal, cards, transfer paper, pester, sticker, PVC/PET/PC films, metal nameplate etc which are made of
non-deforming materials
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
660*760*870mm
-
Weight:
-
85 KG
-
Certification:
-
CE
-
screen machine action mode selection:
-
automatic/semi-automatic
-
screen printing machine Start way:
-
Plane
-
machine Squeegee pressure control:
-
pressure-regulating valve constant pressure
-
ax Stroke of up-and-down frame:
-
125mm
-
Working mesa dimension:
-
300*500mm
-
printer Maximum printing area:
-
250*350mm
-
printer Air pressure:
-
6 Bar
-
Thickness of printing matter:
-
0~60mm
-
Max. printing speed:
-
2000pcs/hour
-
printer Application area:
-
decal, cards, transfer paper, pester, sticker, PVC/PET/PC films
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
220V/110V 50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
660*760*870mm
-
Weight:
-
85 KG
-
Certification:
-
CE
-
screen machine action mode selection:
-
automatic/semi-automatic
-
screen printing machine Start way:
-
Plane
-
machine Squeegee pressure control:
-
pressure-regulating valve constant pressure
-
ax Stroke of up-and-down frame:
-
125mm
-
Working mesa dimension:
-
300*500mm
-
printer Maximum printing area:
-
250*350mm
-
printer Air pressure:
-
6 Bar
-
Thickness of printing matter:
-
0~60mm
-
Max. printing speed:
-
2000pcs/hour
-
printer Application area:
-
decal, cards, transfer paper, pester, sticker, PVC/PET/PC films
Products Description

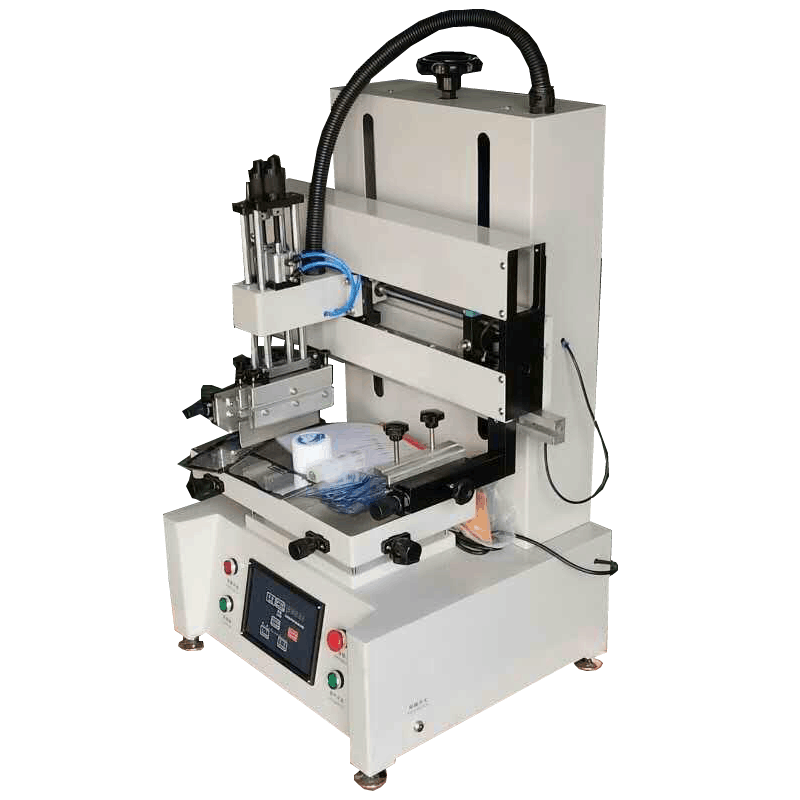

MINI Toptable System FLAT Silk Screen Printing Machine
|
Model Number
|
S-4030V
|
Thickness of printing matter
|
0~60mm
|
|
Size of printing table
|
300*500mm
|
Max printing area
|
250*300mm
|
|
Machine dimension
|
660*760*870mm
|
Max printing speed
|
2000pcs/hour
|
|
Air pressure
|
6 Bar
|
Power voltage
|
110V/220V 50Hz
|
Feature:
1. Advanced computerized system control
2. Built-in LED digital counter
3. Light-weight, strong aluminum cast machine frame
5. Can be operated in manual and semi-auto mode to suit different worker's skill level.
6. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
7. Squeegee/flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.
2. Built-in LED digital counter
3. Light-weight, strong aluminum cast machine frame
5. Can be operated in manual and semi-auto mode to suit different worker's skill level.
6. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
7. Squeegee/flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.
Samples
|
Paper box
|
Paper
|
Circuit board
|
pencil case
|
|||
|
More samples and pictures of the machine , please contact with us.
|
|
|
|
|||
