Quick Details
-
Brand Name:
-
START
-
Voltage:
-
220v/380v
-
Power:
-
5.5
-
Dimension(L*W*H):
-
customized
-
Weight:
-
2500 kg
-
Product name:
-

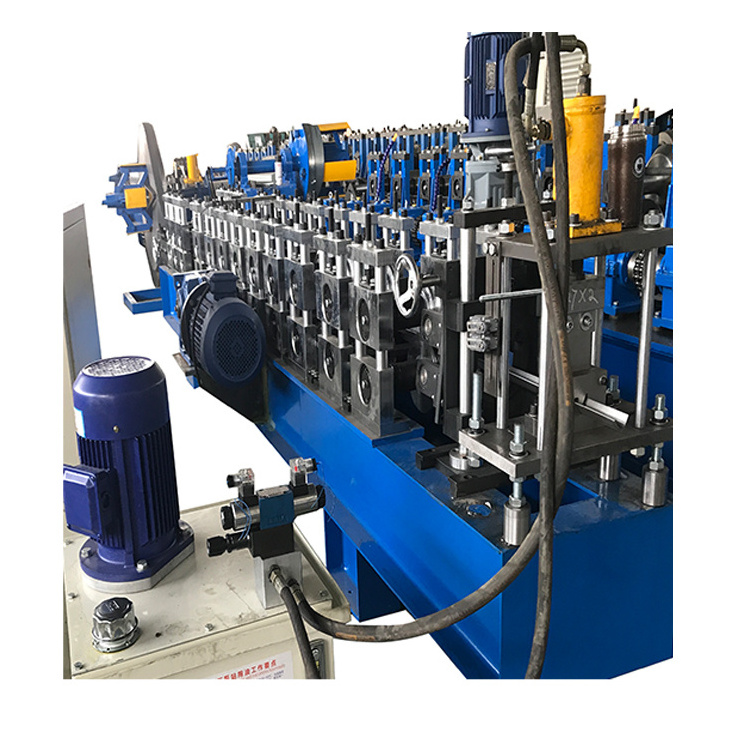

Stud Track Roll Forming Machine
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Construction Building Material
-
Keywords:
-
Stud and Track Machine
-
Shaft material:
-
45# High Grade Steel
-
Roller material:
-
Cr12
-
Control system:
-
PLC(imported Brand)
-
Raw material:
-
Steel Coil
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Production Capacity:
-
0-25 m/min
-
Place of Origin:
-
Jiangsu, China, China
-
Brand Name:
-
START
-
Voltage:
-
220v/380v
-
Power:
-
5.5
-
Dimension(L*W*H):
-
customized
-
Weight:
-
2500 kg
-
Product name:
-
Stud Track Roll Forming Machine
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Construction Building Material
-
Keywords:
-
Stud and Track Machine
-
Shaft material:
-
45# High Grade Steel
-
Roller material:
-
Cr12
-
Control system:
-
PLC(imported Brand)
-
Raw material:
-
Steel Coil
Processing flow diagram of machine
Manual decoiler→ → Feeding material into machine →Roll forming machine →Punching →Measure length →Hydraulic cutting →Finished Products
Specification
|
Material
|
Raw material
|
Galvanized
|
|
|
Thickness
|
0.3-0.8mm
|
|
Manual decoiler
|
Inner Diameter
|
450-550mm
|
|
|
Outer Diameter
|
max 1500mm
|
|
|
Max Coil width
|
300mm
|
|
|
Capacity
|
1.5T
|
|
Main Forming machine
|
Forming steps
|
12 rollers
|
|
|
Shaft diameter
|
50mm
|
|
|
Design type
|
Memorial arch
|
|
|
roller material
|
GCr12MoV steel
|
|
|
shaft material
|
45# steel
|
|
|
Work speed
|
0-25m/min
|
|
|
Transport
|
By gear
|
|
|
Power of main machine
|
5.5kw
|
|
|
Type of cutting
|
Hydraulic
|
|
|
Cutting tolerance
|
±1mm
|
|
|
Cutter
|
Gcr12
|
|
|
Cutter quantity
|
1 set
|
|
|
Working pressure
|
20MPA
|
|
Punching machine
|
Holes punching machine
|
1. Mould material: Gcr12
2. Power supper: Hydraulic Station |
|
Hydraulic system
|
Hydraulic oil
|
46#
|
|
|
Hydraulic power
|
3kw
|
|
|
Cutting length
|
As required
|
|
Control Device
|
control
|
By PLC
|
|
|
PLC language
|
English and Chinese (or as required)
|
|
|
Brand
|
Generally Delta, or as your requirement
|
|
|
Function
|
Automatic length and quantity measurement
|
