Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HAOSEN
-
Model Number:
-
HSHZD-600C
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
18800*2300*2200mm
-
Weight:
-
10000 KG
-
Positioning accuracy:
-
≤±0.3mm
-
Color:
-
milky
-
Max pouch-making speed:
-
30 pcs/ min
-
Max linear speed of unwinding:
-
≤ 30 m/min
-
Temperature setting range:
-
room temperature -400℃
-
Control system type:
-
GS high-speed bag machine control system
-
Feeding shaft:
-
air shaft with pneumatic locking units
-
Feeding way:
-
manual charging with pneumatic locking
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Other
-
Material:
-
Plastic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HAOSEN
-
Model Number:
-
HSHZD-600C
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
18800*2300*2200mm
-
Weight:
-
10000 KG
-
Positioning accuracy:
-
≤±0.3mm
-
Color:
-
milky
-
Max pouch-making speed:
-
30 pcs/ min
-
Max linear speed of unwinding:
-
≤ 30 m/min
-
Temperature setting range:
-
room temperature -400℃
-
Control system type:
-
GS high-speed bag machine control system
-
Feeding shaft:
-
air shaft with pneumatic locking units
-
Feeding way:
-
manual charging with pneumatic locking
Technical parameters
|
Function
|
4-side sealing bag in box making
|
Uncoiler number
|
2pc or 4pc or 6pcs
|
||
|
Pouch
Dimension |
Width=600mm ;Length =640mm*N
N=1,2,3,4,5,6(Multiple times feeding) |
Max Material Roll Dimension
|
￠700*600mm
(diameter * width) |
||
|
Positioning accuracy
|
≤±0.3mm
|
Numbers of Hot & Cooling Knives
|
28units
|
||
|
Temperature Control line
|
20 lines ； 3 sets of independent temperature control modules
|
Temperature
|
room temperature ∽ 400℃
|
||
|
Total Power
|
40KW
|
Dimension
|
18800*2300*2200mm (L XW XH)
|
||
|
Other Model No
|
HSHZD-1300C HSHZD-1600C HSHZD-2000C
|
|
|
||

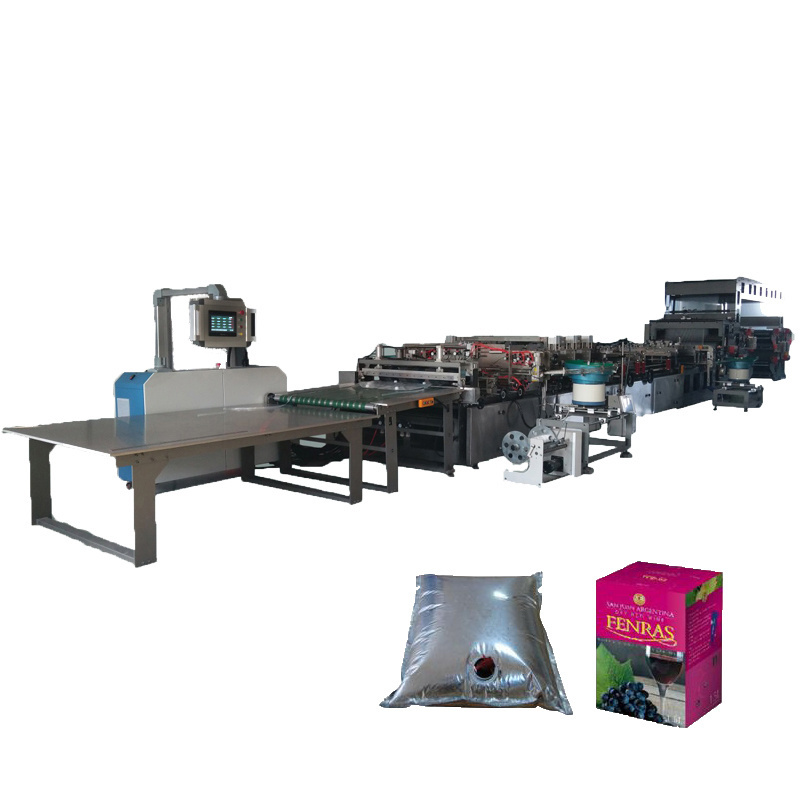

Bag In Box （BIB Pouch）Making Machine
Brief Introduction
HSHZD-600C
Bag In Box machine is widely used to produce bag in box for wine, fruit juice, spring water and others to ensure the good safety and make transportation convenient. Bag in box made in our machine has advantages in tightness and flexibility to protect goods well.
Machine Details
Bag-In-Box Test
Certifications
Equipment configuration and related parameters
1.Unwinding devices
2.Discharging tension
3.Deviation correction devices
4.Opposite-side pieces in upper and lower
5.longitudinal-sealing devices
6.traverse-sealing devices
7.Film traction device
8.Main transmission devices
9.Automatic positioning devices
10.Temperature control devices
11.Cutter
12.Multiple material feeding device
13.Punching device
