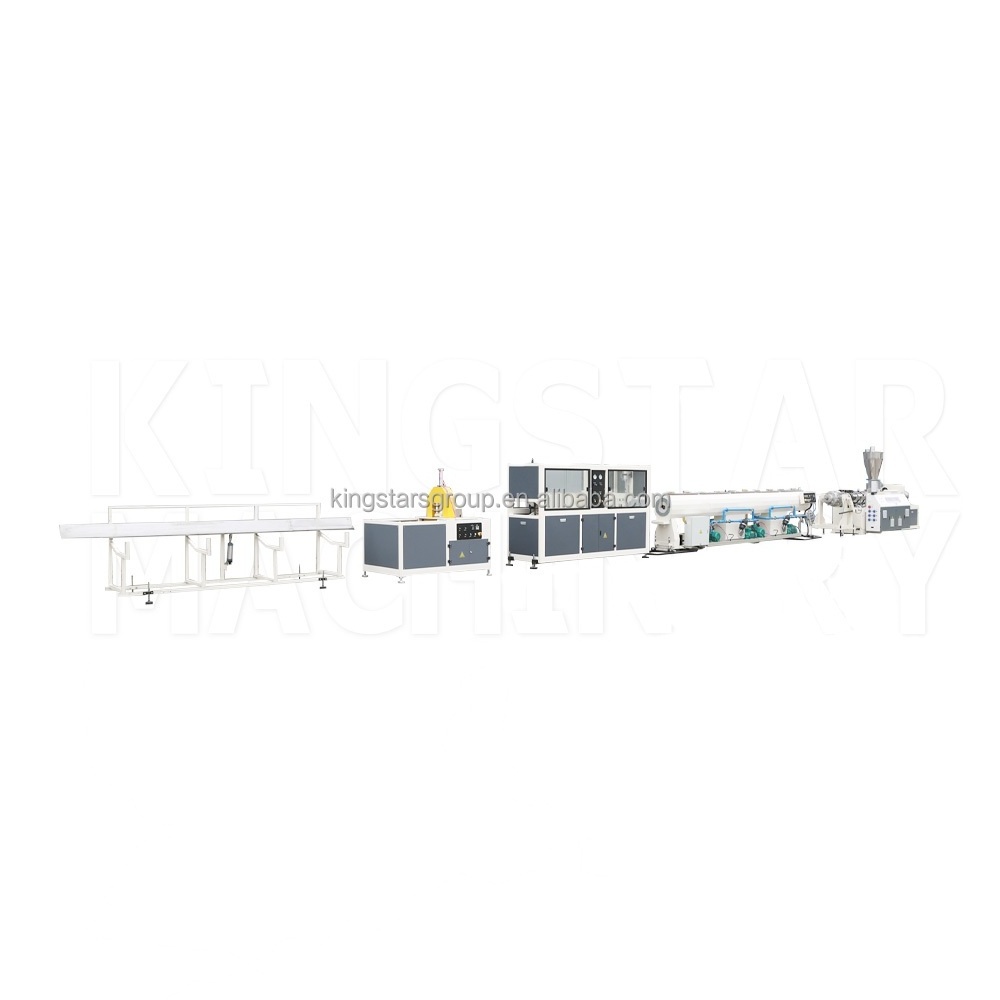

CPVC pipe pipe making machine automatic cutting recycled material can use low cost production line hot sale in Africa market hot
CPVC pipe pipe making machine automatic cutting recycled material can use low cost production line hot sale in Africa market hot
CPVC pipe pipe making machine automatic cutting recycled material can use low cost production line hot sale in Africa market hot
CPVC pipe pipe making machine automatic cutting recycled material can use low cost production line hot sale in Africa market hot
CPVC pipe pipe making machine automatic cutting recycled material can use low cost production line hot sale in Africa market hot
CPVC pipe pipe making machine automatic cutting recycled material can use low cost production line hot sale in Africa market hot
CPVC pipe pipe making machine automatic cutting recycled material can use low cost production line hot sale in Africa market hot
CPVC pipe pipe making machine automatic cutting recycled material can use low cost production line hot sale in Africa market hot

CPVC pipe pipe making machine automatic cutting recycled material can use low cost production line hot sale in Africa market hot

FOB Reference Price: Get Latest Price
≥1 Sets
US $50000
≥2 Sets
US $49500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Jiangsu, China
Brand Name:
Kingstar
Voltage:
Customized
Dimension(L*W*H):
30m*3m*4m
Power (kW):
105
Weight:
10000 KG
Gear box:
Zambello / Jiangyin
PLC:
Siemens
Color:
Client's Requirements
Contractor:
ABB
Certification:
CE,ISO
Delivery Detail:
50 days

Quick Details

Screw Design:
Double-screw
Screw L/D Ratio:
132:1
Screw Speed (rpm):
37 rpm
Place of Origin:
Jiangsu, China
Brand Name:
Kingstar
Voltage:
Customized
Dimension(L*W*H):
30m*3m*4m
Power (kW):
105
Weight:
10000 KG
Gear box:
Zambello / Jiangyin
PLC:
Siemens
Color:
Client's Requirements
Contractor:
ABB
Certification:
CE,ISO
Delivery Detail:
50 days
PVC Pipe Making Machine
Suitable Products
Product Description
PVC pipe extrusion machine has features of low energy consumption, high output, stable work.
The standard PVC pipe extrusion machine include: material feeder, SJSZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker/automatic belling machine.
We also can choose double/four PVC electric conduit extrusion line to make small size pipes.
The main electrics for PVC pipe extrusion machine adopt Siemens motor, Schneider contractor,ABB inverter, RKC/OMRON temperature controller.

Specification
Model
PVC63
PVC110
PVC160
PVC250
PVC315
PVC450
PVC630
Pipe diameter
16-63
50-110
63-160
110-250
160-315
250-450
315-630
Extruder（SJSZ）
51/105
55/120
65/132
80/156
80/156
92/188
92/188
Max. output(kgh)
150
180
300
400
400
700
700
Total power(KW)
60
70
90
120
160
200
230
Line length(M)
20
24
24
28
28
36
36
Machine Details
Twin Extruder Machine
1.1 Siemens PLC
1.2 Quality Screw and Barrel
1.3 Air Cooled Ceramic Heater
1.4 High Quality Gearbox and Distribution Box
1.5 Better Cooling of Gearbox
1.6 Advanced Vacuum System Both conical twin screw extruder and parallel twin screw extruder can be applied to produce PVC pipe. With latest technology, to lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing effect and high capacity.
Extrusion Die Head
2.1 Moving Device of Die Head
2.2 Die Head Rotary Device
2.3 CNC Processing
2.4 High Quality Material Extrusion die head apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment,mirror polishing and chroming to ensure material flow smoothly.
Die head is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. Can produce single layer or multi-layer pipe.
Vacuum Tank
3.1 Strong Cooling for Calibrator
3.2 Better Support for Pipe
3.2 Pressure Relief Valve
3.3 Double Loop Pipeline
3.4 Water, Gas Separator
3.5 Full Automatic Water Control
3.6 Centralized Drainage Device Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.
Cooling Tank
4.1 Pipe Clamping Device
4.2 Water Tank Filter
4.3 Quality Spray Nozzle
4.4 Pipe Support Adjusting Device
4.5 Pipe Support Device

Cooling tank is used to cool pipe further.
Haul off Machine
5.1 Pipe Clamping Device
5.2 Water Tank Filter
5.3 Quality Spray Nozzle
5.4 Pipe Support Adjusting Device
5.5 Pipe Support Device

Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed,also avoid deformation of pipe during traction.
Cutting Machine
6.1 Aluminum Clamping Device
6.2 Advanced Hydraulic System
6.3 Dust Collection System

Cutter controlled by Siemens PLC with chamfering function, working together with haul off unit to have precise cutting. Customer can set the length of pipe they want to cut.
Full Automatic Belling Machine
7.1 Pipe Cleaning System
7.2 Infrared Heating System
7.3 Central Height Adjustment

To make socket at pipe end which is easy for pipe connection. There are three types of belling type: U type, R type and Square type. We provide belling machine which can finish belling of pipe on line fully automatic. From minimum size 16mm to maximum size 1000mm, can with multi heating oven and belling station.
Final Product
Related Product
Usually buyers will buy related machines such as PVC milling machine and High speed mixer unit.Because they will need make further treatment after crushing pipes.
