Quick Details
-
Brand Name:
-
YUANDONG
-
Motor Power:
-
5.5/7.5/13/22KW
-
Charging Capacity:
-
500L/750L/1500L/5000L/CUSTROMIZED
-
Reclaiming capacity:
-
500L/750L/1500L/5009L/CUSTROMIZED
-
Speed of Mixing Drum:
-
21rmp
-
Water Supply Mode:
-
manual
-
Working Cycle Period:
-
4min
-
Discharge Way:
-
manual/hydraulic /electric
-
Outline Dimension:
-
dia0.9M*1.4M/Custromized
-
capacity:
-
250L-5009L
-
Product name:
-
Construction Equipment Concrete Mixer
-
Name:
-
JW Concrete mortar pan Mixer
-
Keywords:
-
cement mortar pan Mixer
-
Weight:
-
330kg-1500kg
-
Engine:
-
Diesel Gasoline Electric
-
Concrete mixer type:
-
jw type Vertical mixer
-
Model:
-
JW350/500/750/1000/1500/2000
-
Application:
-
Building Constrction
-
Voltage:
-
380V50hz
Quick Details
-
Mixing Power:
-
5.5/7.5/13/22KW
-
Productivity:
-
5-30cube/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUANDONG
-
Motor Power:
-
5.5/7.5/13/22KW
-
Charging Capacity:
-
500L/750L/1500L/5000L/CUSTROMIZED
-
Reclaiming capacity:
-
500L/750L/1500L/5009L/CUSTROMIZED
-
Speed of Mixing Drum:
-
21rmp
-
Water Supply Mode:
-
manual
-
Working Cycle Period:
-
4min
-
Discharge Way:
-
manual/hydraulic /electric
-
Outline Dimension:
-
dia0.9M*1.4M/Custromized
-
capacity:
-
250L-5009L
-
Product name:
-
Construction Equipment Concrete Mixer
-
Name:
-
JW Concrete mortar pan Mixer
-
Keywords:
-
cement mortar pan Mixer
-
Weight:
-
330kg-1500kg
-
Engine:
-
Diesel Gasoline Electric
-
Concrete mixer type:
-
jw type Vertical mixer
-
Model:
-
JW350/500/750/1000/1500/2000
-
Application:
-
Building Constrction
-
Voltage:
-
380V50hz
Product Description

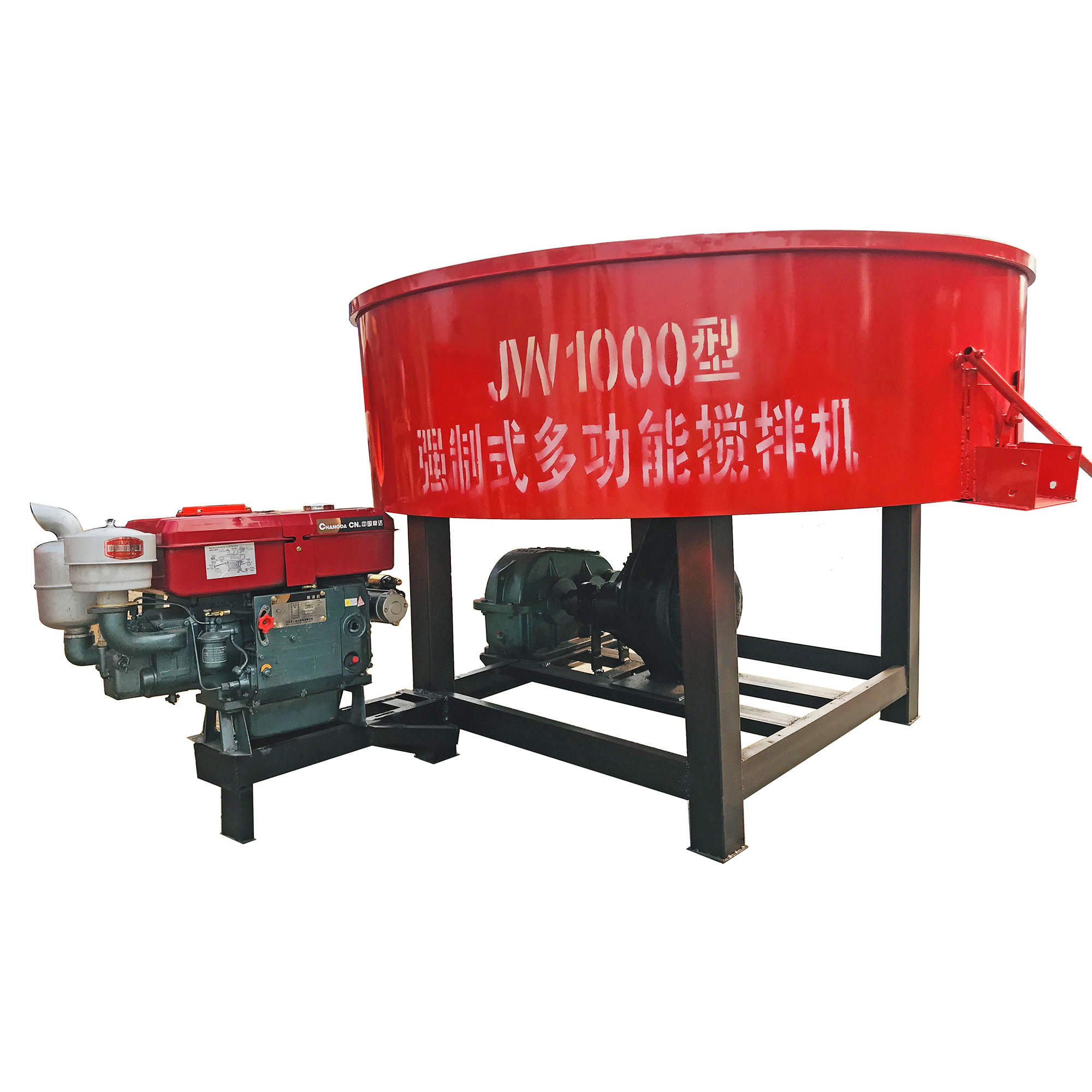

Pan Mixer With Diesel Engine Concrete Pan Mixer Spare Pan Mixer Cement
Product Specification
|
Model
|
JW250
|
JW350
|
JW500
|
JW750
|
JW1000
|
JW1500
|
JW3000
|
|
Volume
|
250L
|
350L
|
500L
|
750L
|
1000L
|
1500L
|
3000L
|
|
Productivity(m3/h)
|
6--8
|
9--12
|
15-18
|
18-20
|
25-30
|
30-40
|
30-60
|
|
Rotary speed(r/min)
|
19
|
21
|
40
|
40
|
21
|
21
|
21
|
|
Power(KW)
|
5.5
|
5.5
|
7.5
|
11
|
13
|
15
|
22
|
|
Dimension(M)(diameter*height)
|
Φ1.1×1.1
|
Φ1.2×1.4
|
Φ1.3×1.4
|
Φ1.5×1.4
|
Φ1.8×1.4
|
Φ1.8×1.6
|
Φ2.5×1.8
|
Product details
The transmission adopts the truck rear axle transmission, and the big horse-drawn car is not bad when it is scrapped.
Concrete Pan Mixer
380V50HZ 3-phase motor, equipped with motor power according to capacity
Concrete Pan Mixer
Pan Mixer With Diesel Engine Concrete Pan Mixer Spare Pan Mixer Cement
Product application
Packing And Transport
We use three-layer protective packaging products, first covered with plastic bags, and then re protected with recycled cotton to prevent paint damage, and finally put them into wooden or iron boxes to better ensure product safety.
Concrete Pan Mixer
Our company can ship at many export ports, such as Shanghai, Qingdao and Guangzhou, to provide more convenient services for your product transportation.
Pan Type Concrete Mixer
Our company
The production workshop is equipped with professional automated production equipment. Rich experience can provide professional customization and foundry processing services.
WORKSHOP
Our Serves
1.We offer a one-year warranty. Once the claim occurs, we will send you free parts by express delivery such as DHL.
Pan Type Concrete Mixer
2.We'll give you a 20% discount on each sample.
Pan Type Concrete Mixer
3.We provide overseas installation and maintenance services for engineers, and you are required to provide round-trip fees.
Pan Type Concrete Mixer
4. If you come to our company for field visits, we provide free pick-up and accommodation services.
5.If you have special requirements, we can provide custom services.
FAQ
1 Q: I haven't used this thing. What if I don't know how to use it?
We provide online technical guidance and video docking.
2 Q: Can you guarantee the quality of product?
Our company has welding robot, CNC machining center and other processing equipment, ISO9001 certification, production specifications, strict quality inspection.
3 Q: How to solve after-sales problems?
We provide a 1-year warranty, free of charge for non consumable parts.
