Quick Details
-
Product name:
-
Single Hydraulic Prop
-
Product specification:
-
DWS25-200/82X
-
Maximum height mm:
-
3500
-
Minimum height mm:
-
1960
-
Working stroke mm:
-
1540
-
weight Kg:
-
82
-
Rated working resistance KN:
-
300
-
Rated working pressure MPa:
-
31.8
-
Setting force KN:
-
132-176
-
Bore diameter mm:
-
110
Quick Details
-
Weight (KG):
-
60
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Product name:
-
Single Hydraulic Prop
-
Product specification:
-
DWS25-200/82X
-
Maximum height mm:
-
3500
-
Minimum height mm:
-
1960
-
Working stroke mm:
-
1540
-
weight Kg:
-
82
-
Rated working resistance KN:
-
300
-
Rated working pressure MPa:
-
31.8
-
Setting force KN:
-
132-176
-
Bore diameter mm:
-
110
Products Description
DWS25 Double Telescopic Suspension Hydraulic Acrow Prop Adjustable Steel Shore Prop Jack Post
DWS25 Double Telescopic Suspension Hydraulic Acrow Prop using mine (suspension) technical principles, pillars suspension force to achieve four-fifths
of the working resistance, the column is only one fifth of the force. Thus greatly improving the pillars of stability and security, improve the supporting pillar height, carrying capacity and anti-bias load capability.zmwm02
DWS25 Double Telescopic Suspension Hydraulic Acrow Prop Application
DWS25 Double Telescopic Suspension Hydraulic Acrow Prop abandoned lengthened cylindrical, stigma, and pistons, no arc welds, no internal leakage, visual inspection with the naked eye, pillar when disclosed, maybe replaced at any pillars that prop safer avoid the pillar caused by the presence of leaks inside the pillar top and cumbersome virtual testing work.
Product Paramenters
DWS25 Double Telescopic Suspension Hydraulic Acrow Prop Adjustable Steel Shore Prop Jack Post
|
Model
|
Maxi Height
|
Mini Height
|
Working Stroke
|
Working Resistance
|
Weight
|
|
DWS25-200/82X
|
2500
|
1050
|
1450
|
200KN
|
60KG
|
|
DWS25-250/92X
|
2500
|
1050
|
1450
|
250
|
65
|
|
DWS25-200/92X
|
3500
|
1500
|
2000
|
200
|
85
|

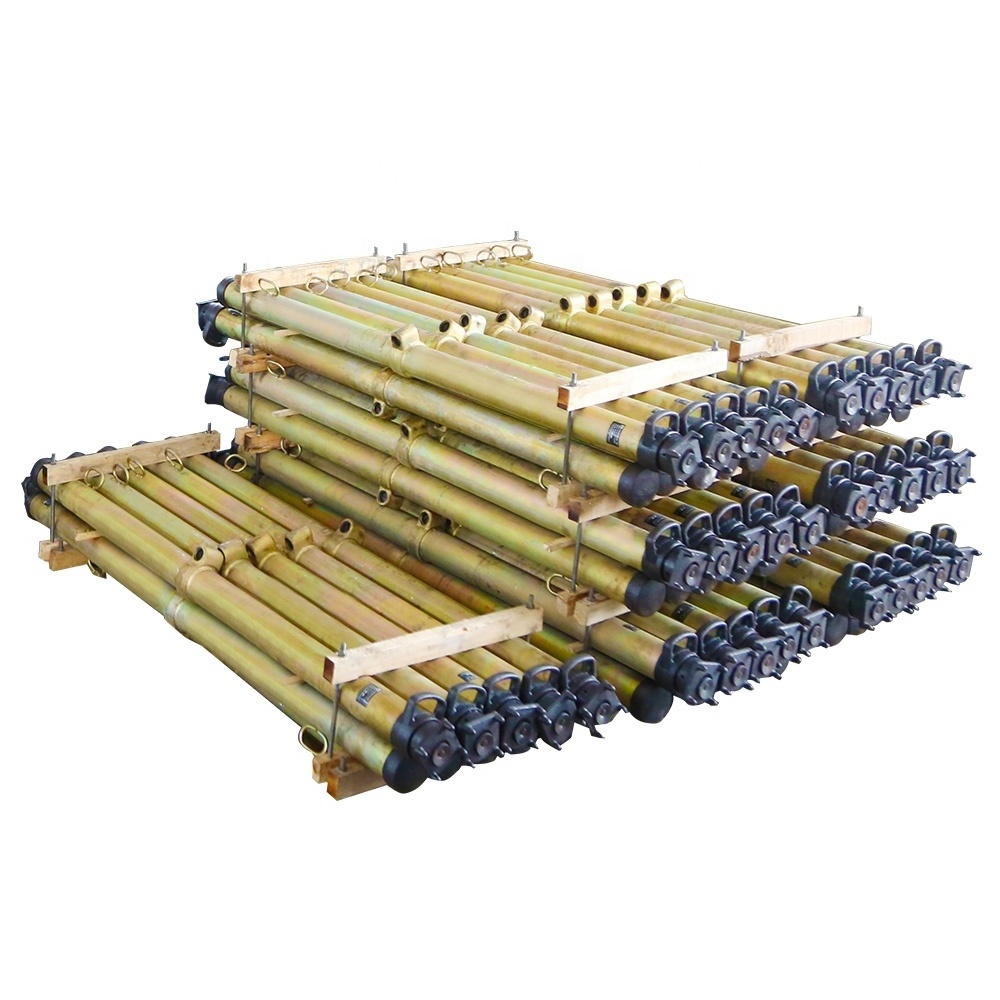

Details Images
DWS25 Double Telescopic Suspension Hydraulic Acrow Prop Adjustable Steel Shore Prop Jack Post
