Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
kili-led
-
Model Number:
-
KLWPMN030
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
105, 95
-
Working Time (hours):
-
100000
-
Item Type:
-
Outdoor Wall Lights
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Building office warehouse
-
Material:
-
Aluminum+PC Cover
-
Warranty:
-
5years
-
Driver:
-
Meanwell
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
120degree
Quick Details
-
Color Temperature(CCT):
-
3000k/4000k/5000K, Pure White
-
Warranty(Year):
-
5-Year
-
Power Supply:
-
VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
kili-led
-
Model Number:
-
KLWPMN030
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
105, 95
-
Working Time (hours):
-
100000
-
Item Type:
-
Outdoor Wall Lights
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Building office warehouse
-
Material:
-
Aluminum+PC Cover
-
Warranty:
-
5years
-
Driver:
-
Meanwell
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
120degree
mini wall pack dusk mini exterior outdoor entrance corridor pedestrian Light LED
PRODUCT DESCRIPTION

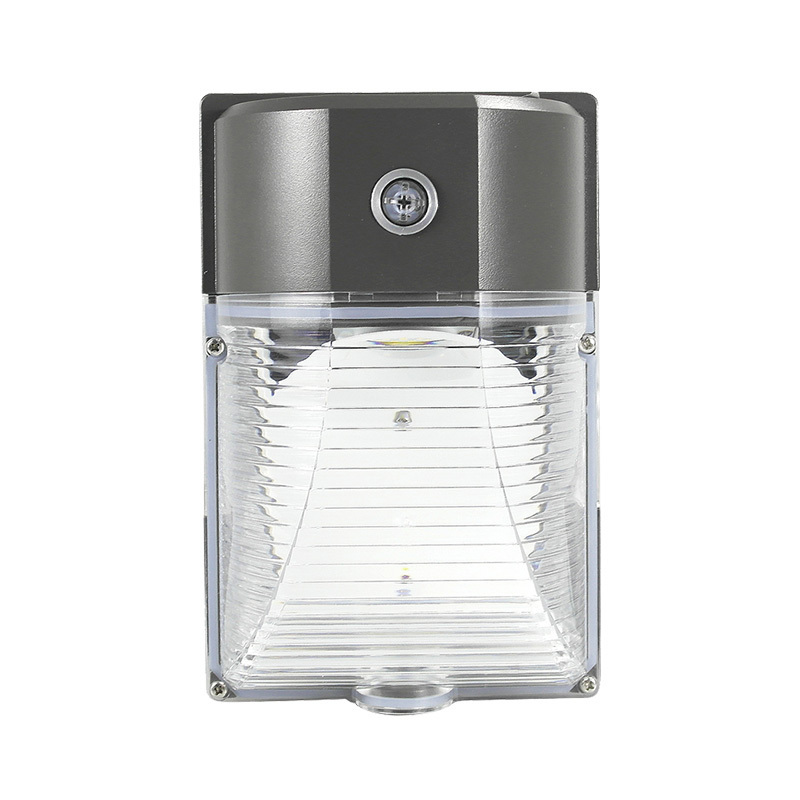

The KLWPMN mini LED wall pack is designed for entrances , stairwells , corridors and other pedestrian areas .
The WPMN 0 30 wall pack delivers 2 8 50 lumens at 5000K while accepts 100 -277 VAC , consumes 30 watts and produces luminous intensity equivalent up to 70W metal halide. With built-in photo cell sensor, the KL WPMN 0 30 LED wall pack is a perfect replacement for traditional CFL, HPS and MH wall packs
CONSTRUCTION & MATERIALS
· Cast aluminum back plate
· Casketing between back plate and front cover prevents entry of water and contaminants
· Injection-molded, one-piece, UV stabilized polycarbonate refractor
· Integral secondary heat sink to optimize thermal transfer and maximize performance and life of LED s
· Polyester powder-coated finish, rust and corrosion proof; stabilized to extreme climate changes without cracking or peeling
MOUNTING AND WIRING
· Surface mounting and wiring via the two convenient 3/4” knockouts
ENVIRONMENTAL SYSTEM
· ETL/cETL listed for outdoor locations
ELECTRICAL SYSTEM
· Integral high performance LED driver
· Universal input voltage 100-277VAC50/60Hz
OPTICAL SYSTEM
· High quality Polycarbonate (clear and Frost) to project light to a wide space
· High performance LEDs mounted on metal core board and integral aluminum heat sink
· Color temperature: 3000K/4000K/ 5000K.
LIGHTING CONTROL
· photocell sensor
SPECIFICATIONS
|
ITEM |
SPECIFICATION |
KLWP MN 0 30 |
|
GENERAL PERFORMANCE |
Power consumption (W) |
30W |
|
Lumens Delivered (lm) |
2800lm |
|
|
Efficacy (lm/W) |
95lm/W |
|
|
CRI |
>80 |
|
|
Color Temperature |
3000K/4000K/5000K |
|
|
L70 |
More than 50000hours |
|
|
Power Factor |
0.98at 120V AC 0.90 at 277VAC |
|
|
ELECTRICAL |
Input Voltage |
120-277VAC |
|
PHYSICAL |
Housing |
die-cast aluminum body(Bronze/Black). Polycarbonate . |
|
Installation |
Recessed outlet box or wall surface |
|
|
Operating temperature |
-30 ℃ Up to 50 ℃ (-22 ℉ up to122 ℉ ). |
|
|
CERTIFICATION |
Environment |
|
|
Warranty |
5 years |
|
|
Certification |
ETL/cETL |
DIMENSIONS
ORDER INFORMATION
|
Family |
Watt a ge |
S eparator |
CCT |
V ersion |
Label |
Diffuse |
|
KLWPMN : KILI-LED LED Mini Wall Pack
|
0 3 0 : 3 0W |
- |
30K: 3000K 40K: 4000K 50K: 5000K |
S : Standard
|
0: KILI-LED Label 1 : Customized Label
|
0: clear 1: Forst |
PACKAGING
Product No: KLWPMN030
Pieces/carton: 12pcs
NW: 20.28 kg( 44 . 7 lb)
GW: 2 1.5 kg ( 47.3 lb)
Box dimensions : 60 cm *38 cm *43 cm
PRODUCT & COMPANY OVERVIEW
1. Are these lights manufactured by you? Do you have you own factory?
Yes, all the lamps on our website are produced through our own factory, factory price direct sales and we will provide one-stop service so that save you money.
2. Can you do OEM or ODM?
Yes, we can do OEM and ODM.
3. What is the make of the Lamp beads and Drivers?
Lamp beads use Cree, Philips, Epistar. Drivers use Mean well, Inventronics, Sosen, and our own power supply. If the customer needs other brands of lamp beads or power supplies, we can also meet.
4. Is there an MOQ limit if buy led lights?
There are currently no quantitative restrictions. Small batches and large orders can be made, factory direct sales, and reasonable prices.
5.What kinds of transportation methods are there, and how long does it take to transport?
For LED lights export, our main modes of transportation are air and ocean, the shipping time will be 3-7 days for air or 25-30 days for ocean.
6. What are the cases of KiLi LED?
At present, we have cooperated with North American, European, and Middle East engineering contractors and dealers. The best-selling lighting fixtures have LED vapor tight, LED wall pack lights, gas station canopy lights, high bay lights, LED street light, etc.
7.What is the energy saving effect and life of LED lighting fixtures?
LED fixtures has a longer life, more than 50000hrs. They are more energy efficient than fluorescent and energy-saving lamps, they can save a lot of electricity cost every year. Currently, many national governments advocate the use of such efficient LED lighting fixtures.
