Conveying capacity : 30-3000t/h
Application : Widely used for transportation of various lumpy, granular and powdery materials.
Customized Solution is the Core concepts of SDCAD
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDCAD
-
Voltage:
-
Based on customization
-
Dimension(L*W*H):
-
Based on customization
-
Weight (KG):
-
500 kg
-
After-sales Service Provided:
-
Service Machinery Overseas
-
After Warranty Service:
-
Video Technical Support Field Maintenance
-
Belt material:
-
PVC PU Rubber Steel
-
Application:
-
Transportation
-
Advantage:
-
20 Years Production Experiences
-
Certification:
-
ISO9001/ISO14001/OHSAS18001
-
Customized Service:
-
Professional Conveyor Drawing Based
-
Motor:
-
Chinese Famous Brand
-
Capacity:
-
30~3000 T/h
Quick Details
-
Power:
-
Based on customization
-
Warranty:
-
2 years
-
Width or Diameter:
-
Based on customization
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDCAD
-
Voltage:
-
Based on customization
-
Dimension(L*W*H):
-
Based on customization
-
Weight (KG):
-
500 kg
-
After-sales Service Provided:
-
Service Machinery Overseas
-
After Warranty Service:
-
Video Technical Support Field Maintenance
-
Belt material:
-
PVC PU Rubber Steel
-
Application:
-
Transportation
-
Advantage:
-
20 Years Production Experiences
-
Certification:
-
ISO9001/ISO14001/OHSAS18001
-
Customized Service:
-
Professional Conveyor Drawing Based
-
Motor:
-
Chinese Famous Brand
-
Capacity:
-
30~3000 T/h
Product Overview

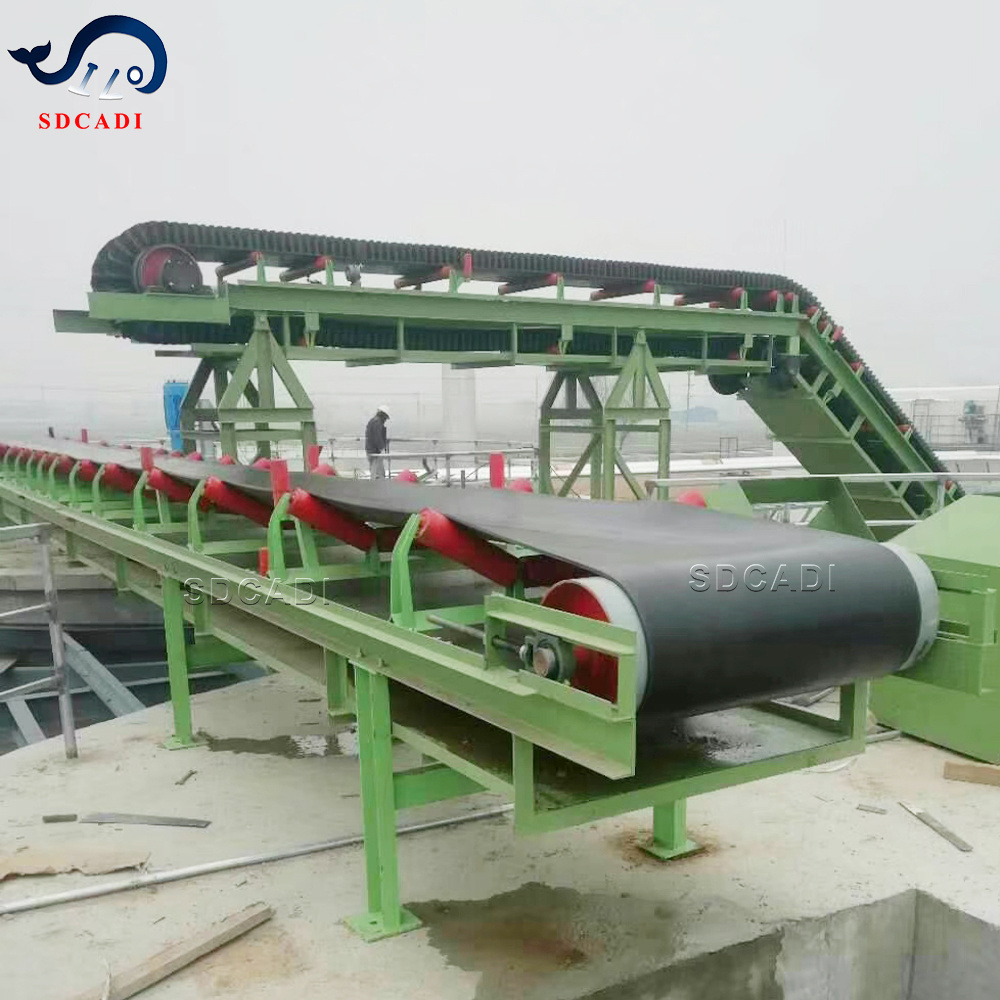

Belt conveyor
Belt conveyor is a kind of material handling equipment with strong adaptability, apply for conveying bulk density less than 1.67t/ m³, it is mostly used for powder, granular, small lump materials and bagged materials, such as sand, ore, coal, cement and other loose materials.
FEATURES AT A GLANCE
Rubber belt width
: 400-2400mm
Conveying capacity : 30-3000t/h
Application : Widely used for transportation of various lumpy, granular and powdery materials.
Customized Solution is the Core concepts of SDCAD
Conveying capacity : 30-3000t/h
Application : Widely used for transportation of various lumpy, granular and powdery materials.
Customized Solution is the Core concepts of SDCAD
High grade edge belt conveyor
Flat Belt Conveyor
Herringbone Belt Conveyor
PRODUCT CONFIGURATION
PRODUCT SPECIFICATIONS
|
Belt width
(mm)
|
Conveying length(m)
Power(kw)
|
|
|
Conveying speed
(m/s)
|
Conveying capacity
(t/h)
|
||
|
400
|
≤10m
3kw
|
12-15 m
3-4 kw
|
15-30 m
4-7.5 kw
|
1.25-2.0
|
30-60
|
||
|
500
|
≤10 m
3 kw
|
12-15 m
4-5.5 kw
|
15-30 m
5.5-7.5 kw
|
1.25-2.0
|
40-80
|
||
|
650
|
≤10 m
4 kw
|
12-15 m
7.5 kw
|
15-30 m
7.5-11 kw
|
1.25-2.0
|
80-120
|
||
|
800
|
≤10 m
4 kw
|
12-15 m
7.5 kw
|
15-30 m
7.5-15 kw
|
1.25-2.0
|
120-200
|
||
|
1000
|
≤10 m
5.5 kw
|
10-20 m
7.5-11 kw
|
20-40 m
11-22 kw
|
1.25-2.0
|
200-320
|
||
|
1200
|
≤10 m
7.5 kw
|
10-20 m
7.5-15 kw
|
20-40 m
15-30 kw
|
1.25-2.0
|
290-480
|
||
|
1400
|
≤10 m
11 kw
|
10-20 m
15-22 kw
|
20-40 m
22-45 kw
|
1.25-2.0
|
400-680
|
||
|
1600
|
≤10 m
15 kw
|
10-20 m
22-30 kw
|
20-50 m
30-75 kw
|
1.25-2.0
|
600-1080
|
||
|
1800
|
≤10 m
18.5 kw
|
10-20 m
30-45 kw
|
20-50 m
45-110 kw
|
1.0-2.0
|
800-1500
|
||
|
2000
|
≤10 m
22 kw
|
10-20 m
45-55 kw
|
20-50 m
55-132 kw
|
1.0-2.0
|
1000-2000
|
||
|
2400
|
≤10 m
30 kw
|
10-20 m
55-75 kw
|
20-50 m
75-185 kw
|
1.0-2.0
|
1500-3000
|
||
Benefits of belt conveyor
Structural advantages
:
compact structure, no foundation, can be directly laid on the floor of the roadway, the frame is light, and it is very convenient to disassemble and assemble.
Conveying advantages:
when the conveying capacity and distance are large, an intermediate drive device can be equipped to meet the requirements. According to the requirements of the conveying process, you can choose a single belt conveyor or a group of cement conveying systems to meet the needs of different operation lines.
Operation advantages:
belt conveyor has a reliable operation, easy to realize automation and centralized control, especially for high-yield and efficient mines. Belt conveyors have become the key equipment of coal mining electromechanical integration technology and equipment.
Working capacity of belt conveyor
The main parameters are generally determined according to the requirements of the material handling system, the various conditions of the material loading and unloading location, the relevant production process and the characteristics of the material.
Conveying capacity:
The conveying capacity of the belt conveyor refers to the amount of material conveyed per unit time. When conveying bulk materials, it is calculated by the mass or volume of the conveyed material per hour.
Conveying speed:
Increasing the conveying speed can improve the conveying capacity. When the conveyor belt is used as a traction member and the conveying length is large, the conveying speed is increasing day by day. However, high-speed belt conveyors need to be paid attention to vibration, noise and starting and braking. For conveyors that use chains as traction members, the conveying speed should not be too large to prevent increasing the dynamic load.
Component size: The component size of the belt conveyor includes the width of the conveyor belt, the width of the slat, the volume of the hopper, the diameter of the pipe and the size of the container. These component sizes directly affect the conveying capacity of the conveyor.
Conveying length and inclination: the length and inclination of the conveying line directly affect the total resistance of the
conveyor and the required power
Component size: The component size of the belt conveyor includes the width of the conveyor belt, the width of the slat, the volume of the hopper, the diameter of the pipe and the size of the container. These component sizes directly affect the conveying capacity of the conveyor.
Conveying length and inclination: the length and inclination of the conveying line directly affect the total resistance of the
conveyor and the required power
Packaging & Shipping
Successful Project
Project in Thailand
Project in India
Project in Russia
Project in
Malaysia
Project in
Mexico
Project in
Pakistan
SIMILAR PRODUCTS
Related Products
Bolted Silo
Container Horizontal Silo
Big Bag Hopper
Dry Mixing Station
Asphalt Mixing Plant and Bitumen Tank
Bag Packaging / Unpackaging machine
Concrete Batching Plant
Mobile / Dry Concrete Batching Plant
Planetary Mixer / Twin Shafts Mixer
Bag discharging machine
Pneumatic Conveying System
Dust Collector
Screw Conveyor
Belt Conveyor
Vertical Elevator
FAQ
May you introduce your
Factory
?
Our factory is with 10,000m2 factory floor area. More than 100 workers will service for you. Our factory is located in Shandong-the only province which cover all industrial sectors in China.
Our factory is with 10,000m2 factory floor area. More than 100 workers will service for you. Our factory is located in Shandong-the only province which cover all industrial sectors in China.
What's the
Advantage
of your products?
Full Process Solution Provider of Mixing, Storage, Conveying.
Our engineers team provide Customized Solution for every project!
What is your Delivery time ?
3-7 days for spare parts; 10-20 days for simple machine. 30-50 days for production line.
What Certificate do you have to ensure quality?
CE certification is provided.
ISO health, ISO Quality, ISO Environment are provided.
Do you have Quality Check QC Service?
QC checking work is including from material, steel processing, welding, painting, electric system, test, delivery, installation.
Quality check for full process
How can I Get Solution to my inquiry ?
Pls send inquiry to us now,
More project and contact information more better. Engineers will make plan for you. Our Sales manager will Quote to you in the first time.
Full Process Solution Provider of Mixing, Storage, Conveying.
Our engineers team provide Customized Solution for every project!
What is your Delivery time ?
3-7 days for spare parts; 10-20 days for simple machine. 30-50 days for production line.
What Certificate do you have to ensure quality?
CE certification is provided.
ISO health, ISO Quality, ISO Environment are provided.
Do you have Quality Check QC Service?
QC checking work is including from material, steel processing, welding, painting, electric system, test, delivery, installation.
Quality check for full process
How can I Get Solution to my inquiry ?
Pls send inquiry to us now,
More project and contact information more better. Engineers will make plan for you. Our Sales manager will Quote to you in the first time.
