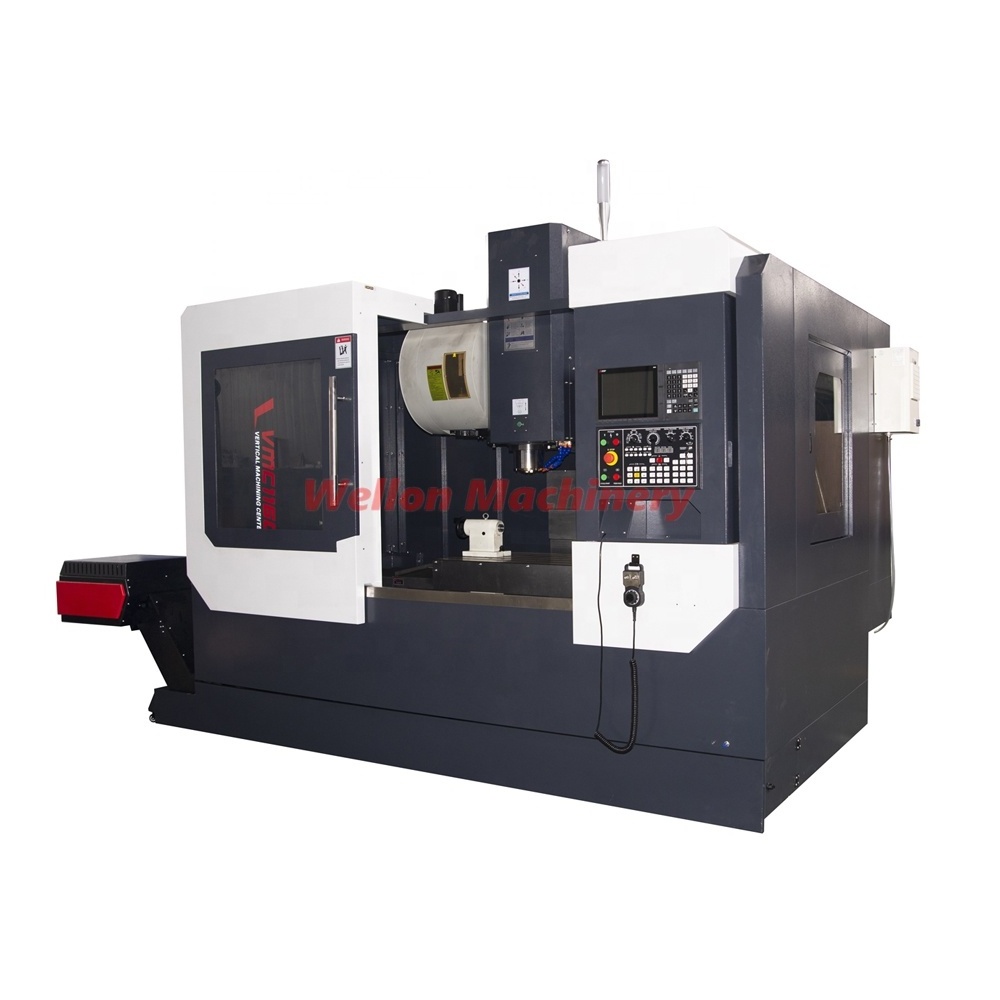

VMC1160 CNC Milling Machine With Certificate /CNC Vertical Machining Center VMC 1160/CNC Milling Machine

VMC1160 CNC Milling Machine With Certificate /CNC Vertical Machining Center VMC 1160/CNC Milling Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $28000

≥2 Pieces

US $24000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Table Travel (Y) (mm):: 600mm

Dimension(L*W*H):: 3300*2400*2800mm

Weight (T):: 6.9 T

Table Travel (Z) (mm):: 600 mm

Positioning Accuracy (mm):: 0.008

Repeatability (X/Y/Z) (mm):: 0.005

Range of Spindle Speed(r.p.m):: 1 - 8000 r.p.m

Spindle Motor Power(kW):: 11

Max. Table Load(kg):: 800 kg

Rapid Feed Speed(m/min):: 0

Place of Origin:: Shandong, China

Brand Name:: WELLON

Voltage:: 380V/50Hz

Spindle speed:: 8000rpm

Spindle taper:: BT40

Product name:: 3-axis Vertical Cnc Machining Center

Product type:: Cnc 3/4/5 Axis Machine

Machine Type:: CNC Vertical Machining Center

Application:: General Machinery Processing

After Warranty Service:: Field maintenance and repair service

Precision:: High Precision Machining Center

Quick Details

Table Size (mm):: 1200X600

Number of Axes:: 3, 4, 5

Table Travel (X) (mm):: 1100 mm

Table Travel (Y) (mm):: 600mm

Dimension(L*W*H):: 3300*2400*2800mm

Weight (T):: 6.9 T

Table Travel (Z) (mm):: 600 mm

Positioning Accuracy (mm):: 0.008

Repeatability (X/Y/Z) (mm):: 0.005

Range of Spindle Speed(r.p.m):: 1 - 8000 r.p.m

Spindle Motor Power(kW):: 11

Max. Table Load(kg):: 800 kg

Rapid Feed Speed(m/min):: 0

Place of Origin:: Shandong, China

Brand Name:: WELLON

Voltage:: 380V/50Hz

Spindle speed:: 8000rpm

Spindle taper:: BT40

Product name:: 3-axis Vertical Cnc Machining Center

Product type:: Cnc 3/4/5 Axis Machine

Machine Type:: CNC Vertical Machining Center

Application:: General Machinery Processing

After Warranty Service:: Field maintenance and repair service

Precision:: High Precision Machining Center

Features:

1. Resin sand casting;

2. X, Y, Z rails adopt stainless steel telescopic cover;

3. Standard with belt driven spindle, optional for direct driven spindle;

4. Taiwan pneumatic cylinder;

5. Taiwan ATC, umbrella type or disc type are available;

6. Headstock balancing system have heavy casting or nitrogen balance system as option;

7. Full enclosed cover;

8. Rigid tapping;

9. Spindle center air blast;

10. Work lamp;

11. Pilot lamp;

12. USB and Internet interface;

13. Manual pulse generator (MPG);

14. Centralized automatic lubrication system.

15. Cooling system.

16. Heat exchanger for electrical cabinet ;

17. Leveling blocks & bolts;

18. Toolbox and tools;

Technica Parameter :

Item	Unit	VMC1160
Capacity
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Spindle nose to worktable	mm	120-720
Spindle center to column	mm	650
Leadscrew size
Leadscrew diameter	mm	Φ 40
Linear guideway width	mm	4 5/45/45
Worktable size
Worktable Length	mm	1200
Worktable width	mm	600
Max loading capacity	kg	800
Spindle
Spindle speed	rpm	8000
Main motor power	kw	7.5/11
Spindle taper		BT40
Feeding system
Fast moving speed (X/Y/Z)	m/min	36/36/36
Cutting speed	mm/min	1-10000
Feed motor power	k w	3/3/4.5
Tool Magazine
Capacity	pcs	Arm 24
Max tool diameter	mm	120
Max tool weight	kg	8
Max tool length	mm	300
Accuracy
Positioning accuracy	mm	0.0 08
Repeat accuracy	mm	0.00 5
Machine dimensions
Length	mm	3300
Width	mm	2 400
Height	mm	2 80 0
Weight	kg	69 00
