Quick Details
-
Brand Name:
-
Huazheng
-
Model Number:
-
HZ
-
Name:
-
Oil Immersed Induction Voltage Regulator
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Huazheng
-
Model Number:
-
HZ
-
Name:
-
Oil Immersed Induction Voltage Regulator

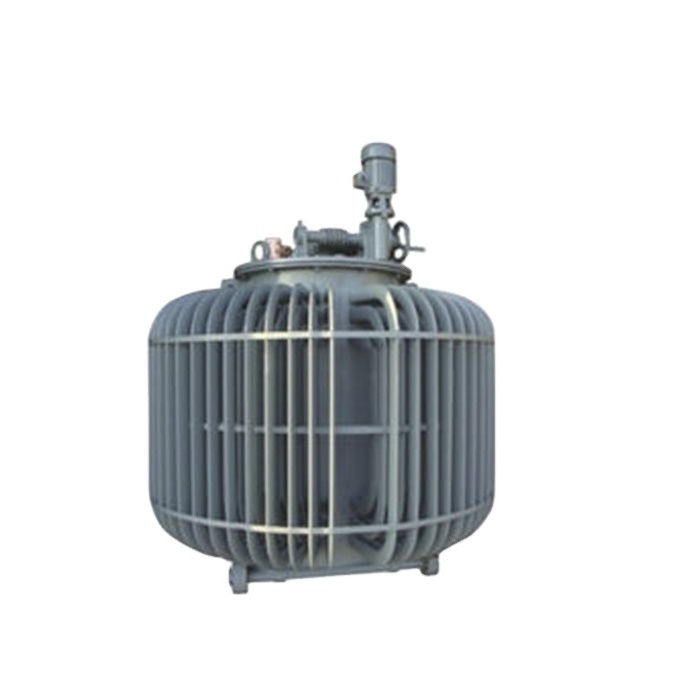

3 Phase Oil Immersed Induction Voltage Regulator/Stabilizer/Variac/ AC Voltage Regulation Power Supply
The Induction Voltage Regulator has the characteristics of non-contact voltage regulation, easy to use, and can operate reliably for a long time. Widely used in industrial and mining enterprises, agriculture and scientific research units as a universal device for regulating voltage. When the input voltage is constant, it can steplessly adjust the output voltage under load. The regulator is used in conjunction with the inverter control to achieve automatic voltage regulation.
Three-phase input voltage 380V, output voltage 10-650V
Products characteristic
(1) Set interlock protection of test items; over-current and over-voltage protection; test operation control; Full monitoring for voltage, current and frequency; Voltage resistance timing; test reminding and other functions.
(2) Electric buck-boost, current range, voltage range can be arbitrarily switched within the console.
|
Input voltage |
380V ± 20% or Customized |
|
Output voltage |
380V or Customized |
|
Frequency |
50Hz/60Hz |
|
Specification |
50, 75, 100, 120, 150, 200, 250, 300, 350, 400, 500, 600, 700, 800, 1000, 1250, 1600, 2000, 2500, 3200, 3600 KVA |
|
Dielectric strength |
200V/60S<10MA |
|
Insulation resistance |
>20MQ |
|
Effectiveness |
98% |
|
Voltage Regulation Accuracy |
±1-3%(can be set) |
|
Response time |
<0.5S |
|
Waveform distortion |
<3% |
|
Ambient temperature |
-5℃- +40℃ |
|
Contrast humidity |
<95% |
|
Temperature rise |
<55℃ |
|
Voice |
<65dB |
|
Protective function |
Over/under voltage, phase sequence, overcurrent, overload. |
We have our own manufacturing factory,pls see the below certificate,we are the direct supplier.
We are a new enterprise engaged in development,produce & sale a serious of power system products, such as Cable fault tester, transformer test class, lightning arrester test class, comprehensive test class.
From the date of purchase within one year instrument,the warranty time is 12 months.This is the piriod of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
