Quick Details
-
Measuring Resistance Range:
-
0
-
Measuring Capacitance Range:
-
0
-
Measuring Inductance Range:
-
0
-
Place of Origin:
-
Guangdong, China
-
Name:
-

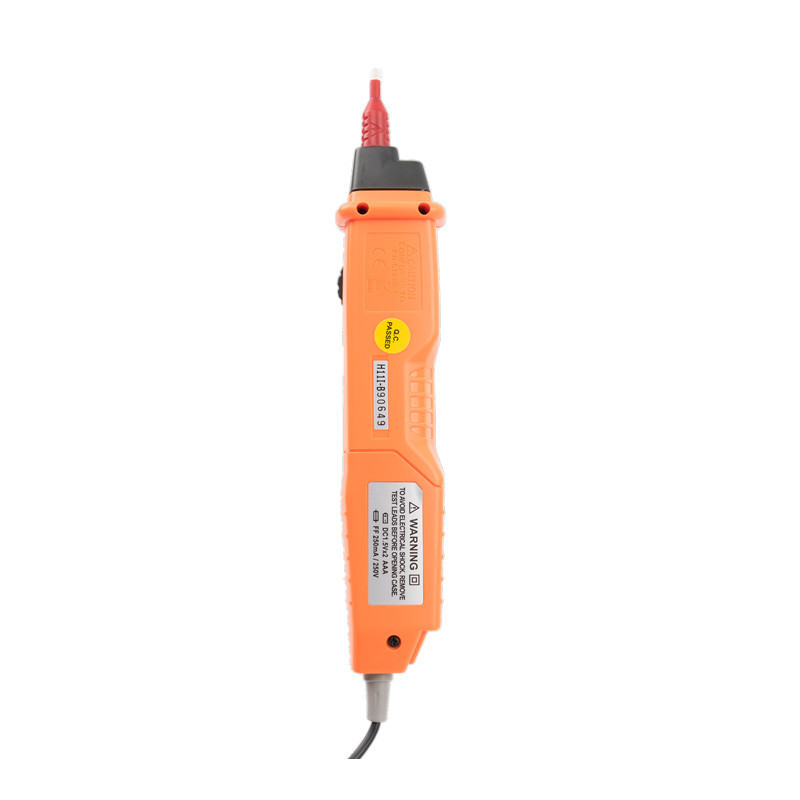

Pen Type Digital Multimeter
-
DC voltage:
-
200m/2/20/200/600V
-
DC current:
-
20m/200mA
-
AC voltage:
-
2/20/200/600V
-
Continuity test:
-
built in buzzer
-
Packaged weight:
-
272g
-
Data hold:
-
MAX hold
-
Display:
-
2000 counts
-
Display light:
-
Yes
-
Work light:
-
Yes
Quick Details
-
Display Type:
-
Digital Only
-
Measuring Current Range:
-
0
-
Measuring Voltage Range:
-
0
-
Measuring Resistance Range:
-
0
-
Measuring Capacitance Range:
-
0
-
Measuring Inductance Range:
-
0
-
Place of Origin:
-
Guangdong, China
-
Name:
-
Pen Type Digital Multimeter
-
DC voltage:
-
200m/2/20/200/600V
-
DC current:
-
20m/200mA
-
AC voltage:
-
2/20/200/600V
-
Continuity test:
-
built in buzzer
-
Packaged weight:
-
272g
-
Data hold:
-
MAX hold
-
Display:
-
2000 counts
-
Display light:
-
Yes
-
Work light:
-
Yes
Features:
Integrated Pen type design, easily
to hold and use
High safety standard, Non-contacted voltage
detector function will give you more confidence when you start to work
Display light and work light, fit for most of work
environment, even in the darkness
Contain probes and clips. fit for
testing most of objects
Contain carrying bag, easily to take
NCV (non contact voltage detection)
Display: 2000 counts
Auto range and manual range
Data hold /MAX hold
Diode test and Continuity test
Specifications:
DC voltage: 200m/2/20/200/600V ±0.7%
AC voltage: 2/20/200/600V ±0.8%
DC current: 20m/200mA ±1.5%
AC current: 20m/200mA ±2.0%
Resistance:
200/2K/20k/200k/2M/20Mohm ±1.2%.
Diode test: Range 1V , Resolution 0.001V
Continuity test: built in buzzer, if
measured resistance is less than 50Ω, buzzer will sound.
Non contact voltage (NCV) Test
Size: 205mmx38mx29mm
Weight:110g
Packaged weight :272g
Battery(AAA/1.5V/Manganese Battery) x 2
Gift Box x 1
Gift Box x 1
Portable Bag x 1
User Manual x 1
Packaging & Delivery
| Packaging Details: | Standard Export Carton |
|---|---|
| Delivery Detail: | 10-25 days |
