Quick Details
-
Production Capacity:
-
110
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tianfang
-
Dimension(L*W*H):
-
1.700m *0.900m *2.000m
-
Capacity:
-
110bags/min
-
Size of envelope:
-
70mm * 65mm
-
Size of tea bag:
-
62.5mm*50 mm
-
Certification:
-
CCC
Quick Details
-
Function:
-
FILLING, Labeling, Sealing, Gluing, Other
-
Packaging Type:
-
Bags
-
Packaging Material:
-
Paper
-
Production Capacity:
-
110
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tianfang
-
Dimension(L*W*H):
-
1.700m *0.900m *2.000m
-
Capacity:
-
110bags/min
-
Size of envelope:
-
70mm * 65mm
-
Size of tea bag:
-
62.5mm*50 mm
-
Certification:
-
CCC

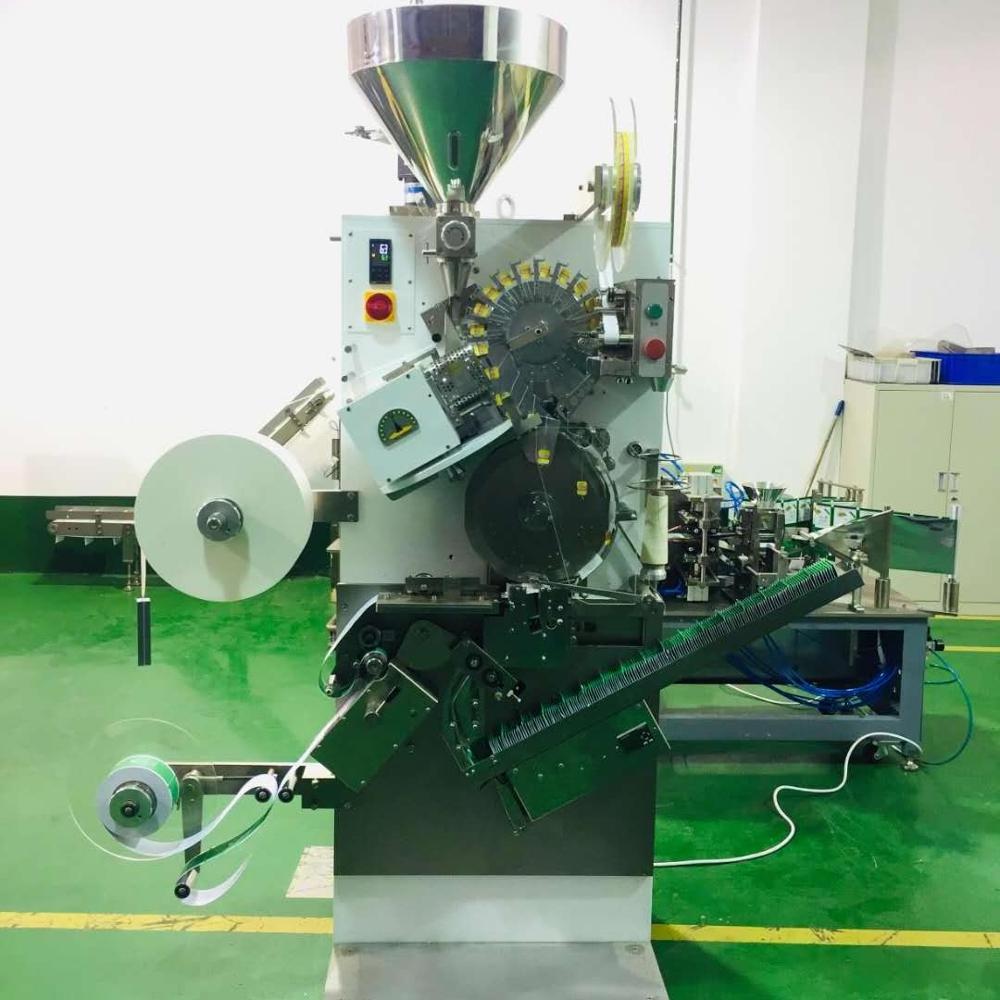

high speed high quality tea bag automatic packing machine
Model CCFD6 tea bag packing machine is electromechanical integration of packing machine for the pharmaceutical,health care,food and other industries.It can pack 20 meshes to 60 meshes or bulk non-viscidity granular materials,such as CTC black tea,green broken tea,herbals into the bag.To achieve quantitative material cutting,cotton thread and adhesive labels,bag sealing,outer bag sealing,automatic counting and other functions of high-speed packing machines.This machine continuous steady speed can reach 110 bags/min and it is taken to a series of anti-oil,anti-pollution measures.The packed tea bag meet food standards'requirements.The cold sealing of envelope paper most use in oversea market.
|
Capacity |
110bags/min |
|
Max.Dosage |
6 cm3 |
|
Size of tea bag (L×W) |
62.5mm×50 mm |
|
Size of envelope (L×W) |
70mm × 65mm |
|
Width of filter paper |
125mm |
|
Tag dimensions |
28mm ×24mm |
|
Thread length |
210mm |
|
Envelope materials |
paper of 70g/m2 ,one side smooth and the other side rough |
|
Voltage |
AC 380V |
|
Total power |
1.5 KW |
|
Overall dimension |
1.700m ×0.900m × 2.000m |
|
Carton dimensions |
1.220m × 1.140m×1.967m |
|
Net Weight |
640kg |
|
Gross weight |
800kg |
|
Options |
1) Stirrer 2) Heat sealable tag device 3) Pneumatic vacuum feeder 4) Modification cutter tool |
Product Features:
1. High speed
2. Long life
3. High quality
4. with envolope
