Quick Details
-
Max.Rim Width:
-
N/A
-
Software language:
-
english,russia, portuguese,korean
-
technology:
-
3D
-
new car added function:
-
yes
-
Printer:
-
HP
-
camera:
-
real precision 5 million pixels
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Warranty:
-
1 Years
-
Max. Rim Diameter:
-
11"-24"
-
Max.Rim Width:
-
N/A
-
Software language:
-
english,russia, portuguese,korean
-
technology:
-
3D
-
new car added function:
-
yes
-
Printer:
-
HP
-
camera:
-
real precision 5 million pixels

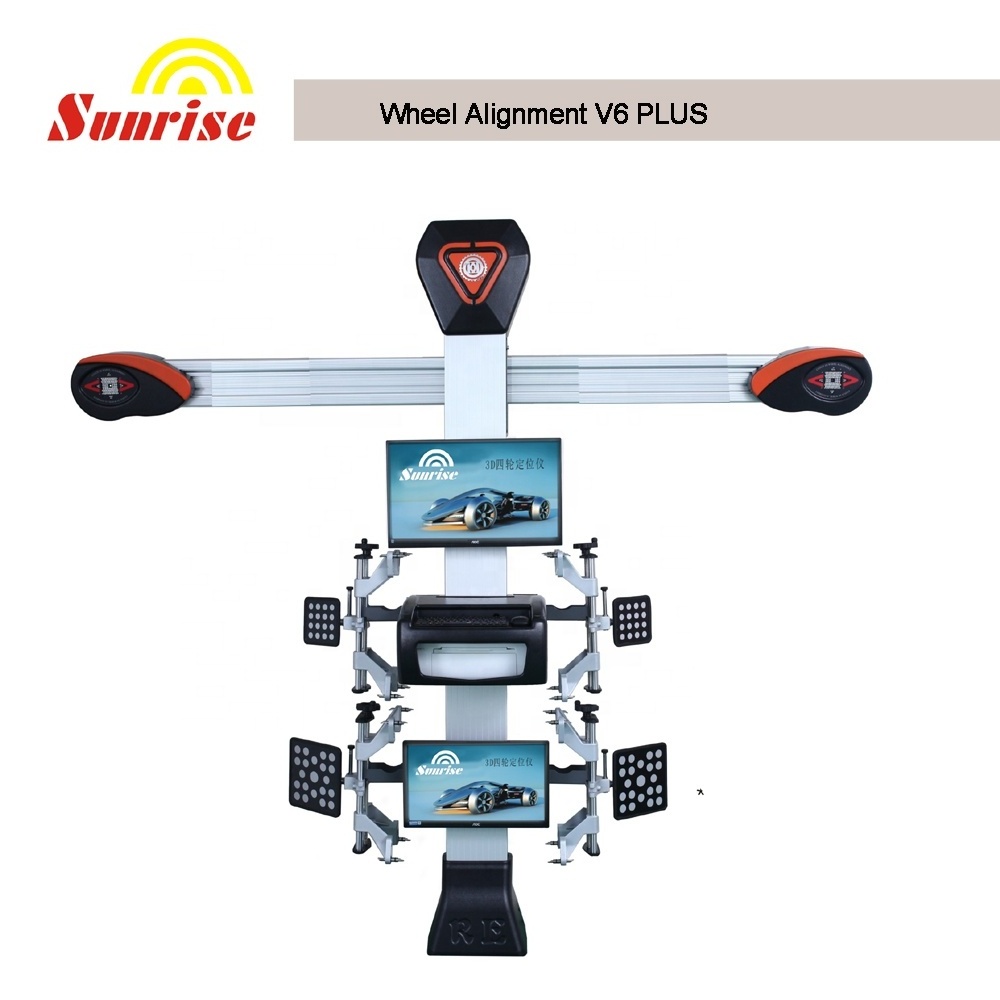

3D wheel alignment machine SR-V6 PLUS:
Software lifetime free upgrades,target by three-year warranty.
* Super save space
* Super short distance installation
* Small venue preferred model
Technical Specification:
| Item | Accruacy | Range | Total range |
| Camber | ±0.01 ° | ±8 ° | ±8 ° |
| Caster angle | ±0.01 ° | ±19 ° | ±19 ° |
| Front inclination | ±0.01 ° | ±19 ° | ±19 ° |
| Front toe | ±0.01 ° | ±2 ° | ±8 ° |
| Front thrust-angle | ±0.01 ° | ±2 ° | ±4 ° |
| Steering angle | ±0.01 ° | ±2 ° | ±40 ° |
| Rear axle deflection | ±0.01 ° | ±2 ° | ±4 ° |
| Front set-back | ±0.01 ° | ±2 ° | ±4 ° |
| Rear set-back | ±0.01 ° | ±2 ° | ±4 ° |
| Wheel tread | ±0.25cm | <268mm | <268mm |
| Track width difference | ±0.01 ° | ±2 ° | ±8 ° |
| Wheel base | ±0.15cm | <546mm | <546mm |
[ C ore advantage ]
1,Real precision 5 million pixels, imported chips, 25 frame / sec, to break the traditional 4 frame/ sec;
2,Target target is the use of military aviation materials made of 0.01 degree of deformation, high temperature 276 ℃, anti-high temperature, shockproof, waterproof;
3,Unique tire wear features,Tire safety escort;
4,Stroller short distance,saving shortcut;
5,Vehicle adjusted once by up to one hundred percent,Customer satisfaction is high;
6,Enhance the measurement accuracy of 0.01 degrees,Repeated measurements of 0.03 degrees, Accurate fast;
7,Customer management and printing functions;
8, Is not affected by lifting machine level difference, To solve the traditionaldisadvantages;
9,Win7 operating system, easy to operate, easy to learn;
10,Short distance meters to claim 1, Solve the problem of smal l space ; Receiving a wider range(Traditional receiving at least one meter 6) ;
11, Host highly integrated,reducing the failure rate ;
12, Technology unique, Super-competitive, Enabling customers to profit doubled.
