Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DMKE
-
Model Number:
-
DSL100-36300
-
Torque:
-
30N.m
-
Motor type:
-
Servo Hub Motor
-
Rated voltage:
-
48VDC
-
Maximum speed:
-
250rpm(3.17m/s)
-
Peak torque:
-
30N.m
-
Output power:
-
380W
-
Walking speed:
-
5m/s
-
Protection class:
-
IP65
-
Insulation Resistance:
-
≥200MΩ
-
Communication type:
-
UART+CAN /UART+RS485
-
Tire:
-
Solid rubber tires (no trace)
Quick Details
-
Speed(RPM):
-
5m/s
-
Continuous Current(A):
-
15Arms
-
Efficiency:
-
IE 2
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DMKE
-
Model Number:
-
DSL100-36300
-
Torque:
-
30N.m
-
Motor type:
-
Servo Hub Motor
-
Rated voltage:
-
48VDC
-
Maximum speed:
-
250rpm(3.17m/s)
-
Peak torque:
-
30N.m
-
Output power:
-
380W
-
Walking speed:
-
5m/s
-
Protection class:
-
IP65
-
Insulation Resistance:
-
≥200MΩ
-
Communication type:
-
UART+CAN /UART+RS485
-
Tire:
-
Solid rubber tires (no trace)
Feature:
1. The drive is integrated with the hub motor, easy to install and simple to debug 2. High torque, silent, low-speed operation can still be maintained smoothly 3. High protection level (IP65, IP67), no fear of dust, resistance to axial impact 4. Comes with a communication magnetoelectric encoder for servo control 5. Has RS485/CAN hardware interface, supports modbus/CAN SDO 6. It has overcurrent, overload, and over-temperature protection functions, which are more stable and reliable. 7. Has current closed loop, speed closed loop, and position closed loop function 8. Motor parameters and control parameters can be set through bus communication 9. Designed for the service robot industry, it has more industry-specific function 10. Customizable communication protocol, customizable special functions
1. The drive is integrated with the hub motor, easy to install and simple to debug 2. High torque, silent, low-speed operation can still be maintained smoothly 3. High protection level (IP65, IP67), no fear of dust, resistance to axial impact 4. Comes with a communication magnetoelectric encoder for servo control 5. Has RS485/CAN hardware interface, supports modbus/CAN SDO 6. It has overcurrent, overload, and over-temperature protection functions, which are more stable and reliable. 7. Has current closed loop, speed closed loop, and position closed loop function 8. Motor parameters and control parameters can be set through bus communication 9. Designed for the service robot industry, it has more industry-specific function 10. Customizable communication protocol, customizable special functions
Specification
Kindly remind:
As different customers may need different motor parameter for fitting your equipment. If below motor can't fit your need, please kindly send inquiry to us with information for rated power or torque,rated speed, and rated voltage for our new size drawing making for you.
CLICK HERE to contact me.
Thanks a lot!
|
Rated voltage
|
48V DC
|
|
Rated current
|
15A rms
|
|
Rated torque
|
30N.m
|
|
Maximum speed
|
250RPM (3.17m/s)
|
|
Peak torque
|
50 N.m
|
|
Output power
|
380 W
|
|
Hardness Class
|
A68
|
|
Protection class
|
IP65 \ IP67
|
|
Insulation Resistance
|
≥200MΩ
|
|
High voltage
|
600VDC 1SEC 10mA
|
- Adopt servo control algorithm
- Size from 4.5 inch to 12 inch optional
- Rated torque from 1.1nm to 30Nm optional
- UART, RS485 and CAN communication optional - Single shaft or dual shaft optional
Customization is welcome.
Click here to contact us for more detail.

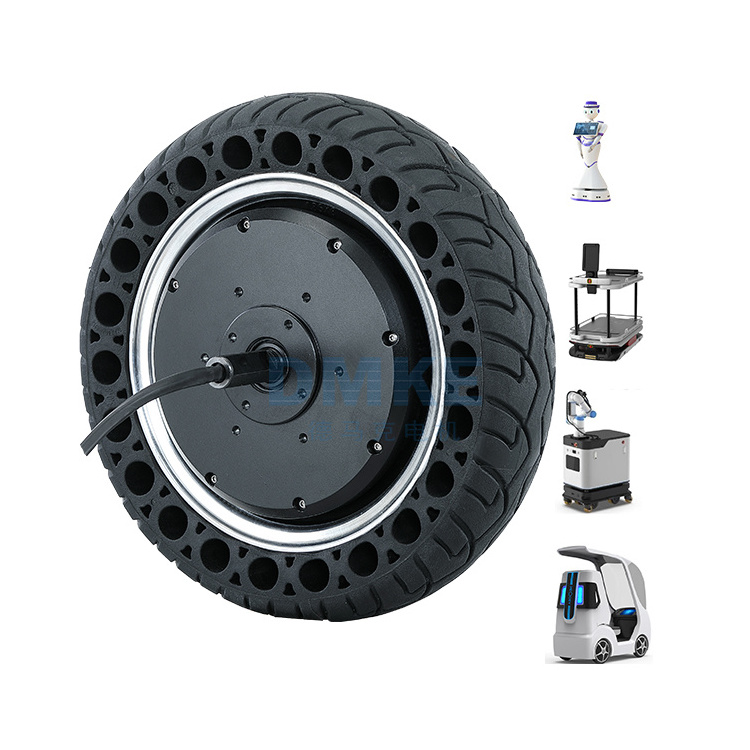

10Inch 30Nm servo hub motor
