Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GTMEDIA
-
Model Number:
-
M7X
-
CPU:
-
ALI M3526
-
Flash Memory:
-
8MB SPI Flash
-
DDR3 Memory:
-
256M DDR3
-
Demultiplexer:
-
ISO/IEC 13818-1
-
PVR:
-
USB 2.0 for PVR,TIMESHIFT,media files playback
-
Wifi:
-
2.4G WiFi, IEEE 802.1.1b/g/n
-
Network Sharing:
-
IKS,Cccam,Newcam
-
Twin tuner:
-
lKS &SKS
-
Warranty:
-
12 Months
-
Certification:
-
ce
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GTMEDIA
-
Model Number:
-
M7X
-
CPU:
-
ALI M3526
-
Flash Memory:
-
8MB SPI Flash
-
DDR3 Memory:
-
256M DDR3
-
Demultiplexer:
-
ISO/IEC 13818-1
-
PVR:
-
USB 2.0 for PVR,TIMESHIFT,media files playback
-
Wifi:
-
2.4G WiFi, IEEE 802.1.1b/g/n
-
Network Sharing:
-
IKS,Cccam,Newcam
-
Twin tuner:
-
lKS &SKS
-
Warranty:
-
12 Months
-
Certification:
-
ce
Product Description
|

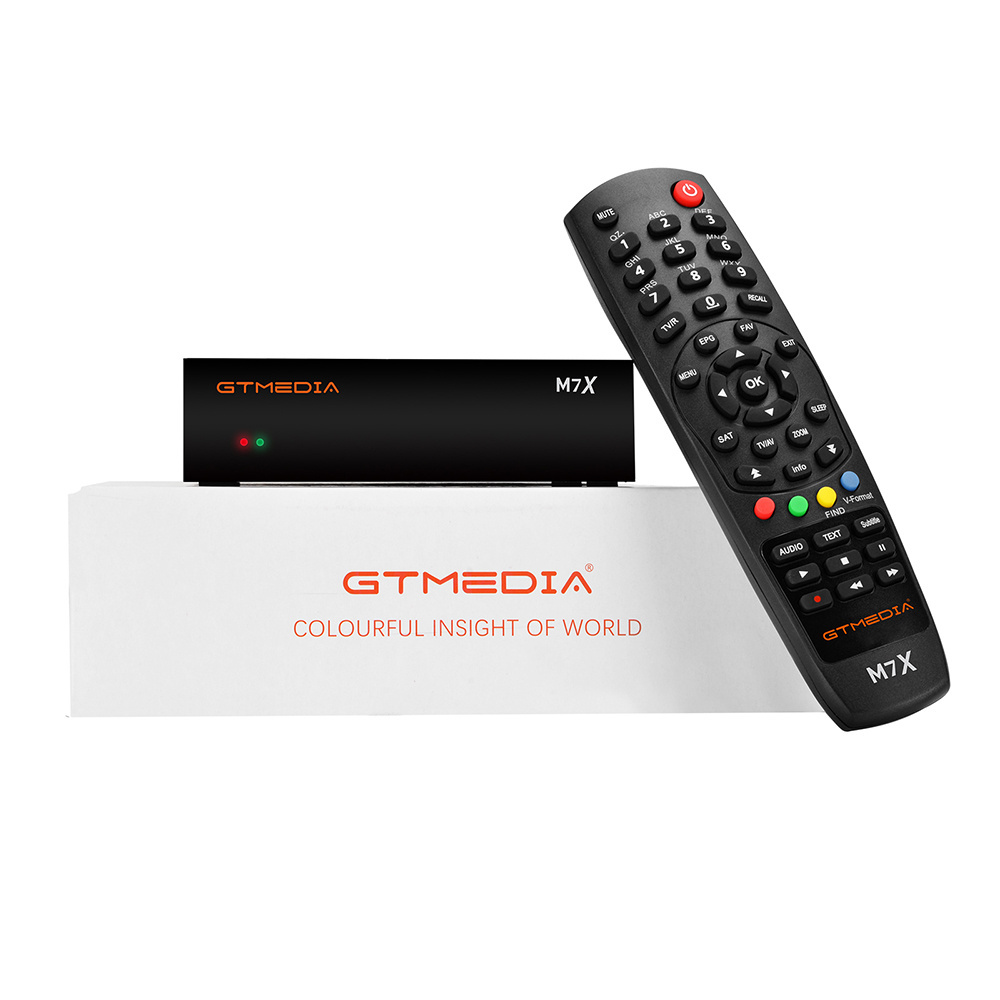

GTMEDIA M7X
(DVB-S/S2/S2X)
|
|
|
|
|
1.Support DVB-S2 VCM/ACM/multi-stream, HEVC main 8 profile, AVS+
|
|
|
|
2.Support Biss key;
|
|
|
|
3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
|
|
|
|
4.Support DLNA;
|
|
|
|
5.Support Built-in 2.4G WIFI module, Ethernet, and support 3G usb dongle;
|
|
|
|
6.Support Online Movie (Youtube), Weather;
|
|
|
|
7.Support IPTV (Freesat LIVE Feesat SERIES Feesat FILMES);
|
|
|
|
8.Twin tuner lKS &SKS receiver;
|
|
|
|
9.Support Network Sharing IKS,Cccam,Newcam;
|
|
|
|
10.Support SKS keys 63W,75W and many more;
|
|
|
|
11.Support SKS Satellite 70W and many more;
|
|
|
|
12.Technical support website : www.freesat.cn;
|
|
|
|
Note: We reserve the right to change the design and OEM/ODM supported
|
|
Certifications
|
Main Chip Sets
|
CPU
|
ALI M3526
|
|
|
Flash Memory
|
8MB SPI Flash
|
|
|
DDR3 Memory
|
256M DDR3
|
|
|
Demultiplexer
|
ISO/IEC 13818-1
|
|
|
Input Bit Rate
|
Max 100Mbit/s
|
|
|
LED Indicator
|
Lock:Green; Standby :Red
|
|
|
Button
|
Not
|
|
|
Wifi
|
Built in 2.4G WiFi Support IEEE 802.1.1b/g/n
|
|
|
IR
|
Exit IR for 38KHz,Infra Remote control
|
|
|
|
LNB1 IN (Frequency Range950MHz to 2150MHz)
|
|
|
|
LNB2 IN (Frequency Range950MHz to 2150MHz)
|
|
|
|
HD OUT (up to 1080P)
|
|
|
|
2*USB HOST
|
|
|
|
1*RJ45
|
|
|
|
DC IN (DC12V/2.2A)
|
|
|
Power Supply
|
AC 100V ～250V, 50/60Hz
|
|
|
Power Consumption
|
10W in operation 1 W Standby Power Mode
|
|
|
Temperature
|
Operation 0～+45℃; Storage -10~+60℃
|
|
|
Humidity
|
20~90%, non-condensed
|
