Quick Details
-
Brand Name:
-
SHATOX
-
Model Number:
-
SX-150
-
octane:
-
ASTM D 2699-86, ASTM D 2700-86
-
cetane:
-
ASTM D 4737-03, ASTM D 613, EN ISO 5165
-
oxidative stability:
-
ASTM D 525
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Russia
-
Brand Name:
-
SHATOX
-
Model Number:
-
SX-150
-
octane:
-
ASTM D 2699-86, ASTM D 2700-86
-
cetane:
-
ASTM D 4737-03, ASTM D 613, EN ISO 5165
-
oxidative stability:
-
ASTM D 525

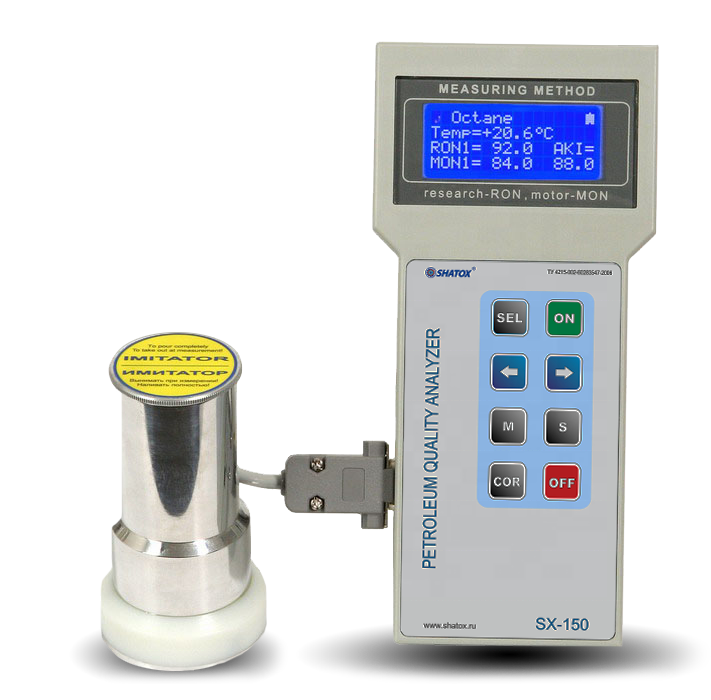

SX-150 Portable Octane and Cetane Meter
SHATOX SX-150
New oil products grade analyzer is manufactured on the basis of advanced high precision microprocessor. The instrument can be used together with a PC or laptop through USB interface. Analyzer can save measured data in the instrument memory with analysis date and time and then transfer the readings to a computer (in Microsoft Excel or txt format).
When determining petrol breakdown time, the petrol brand is selected in the instrument. The instrument switches to corresponding operating mode. Oxidative stability determination complies with GOST 4039-88 (ASTM D 525)
The instrument uses the timer microchip, which allows storing measurement results with analysis date and time. These data can also be transmitted to a computer.
Instrument capabilities:
Determining gasoline octane level. Complies with ASTM D 2699-86, ASTM D 2700-86.
Determining diesel fuel cetane level. Complies with ASTM D 4737-03, ASTM D 613, EN ISO 5165.
Determining solidification temperature and diesel fuel type (reference parameter).
Determining content of kerosene in diesel fuel (reference parameter).
Determining petrol breakdown time (oxidative stability). Complies with ASTM D 525.
|
Parameter description
|
Units
|
Value
|
||
|
Range of measured gasoline octane level
|
ON
|
40–135
|
||
|
Acceptable limit of octane number measurement basic error, max
|
ON
|
± 0.5
|
||
|
Limit of acceptable difference between parallel octane number measurements, max
|
ON
|
± 0.2
|
||
|
Petrol oxidation breakdown time measurement range
|
min.
|
50-2400
|
||
|
Acceptable basic error limit of petrol oxidation breakdown time
|
min.
|
10
|
||
|
Range of measured cetane level
|
CN
|
20–100
|
||
|
Acceptable basic error limit of cetane numbers, max
|
CN
|
±1.0
|
||
|
Acceptable difference limit between cetane numbers parallel measurements, max
|
CN
|
± 0.5
|
||
|
Acceptable error limit when determining diesel-fuel pour point
|
C o
|
± 5
|
||
|
Kerosene content determination range in diesel fuels
|
%
|
0-95
|
||
|
Acceptable basic error limit when determining kerosene content in diesel fuels
|
%
|
3
|
||
|
Measurement time
|
sec
|
1–5
|
||
|
Insufficient power supply indication operation threshold
|
V
|
5.4
|
||
|
Instrument useful life
|
Years, minimum
|
6
|
||
|
Overall dimensions of:
|
|
|
||
|
Electronic module
|
mm
|
211*100*45
|
||
|
Sensor #1
|
mm
|
60*100
|
||
|
Instrument mass with a sensor
|
gr
|
680
|
||
